Exploded View

Type 1

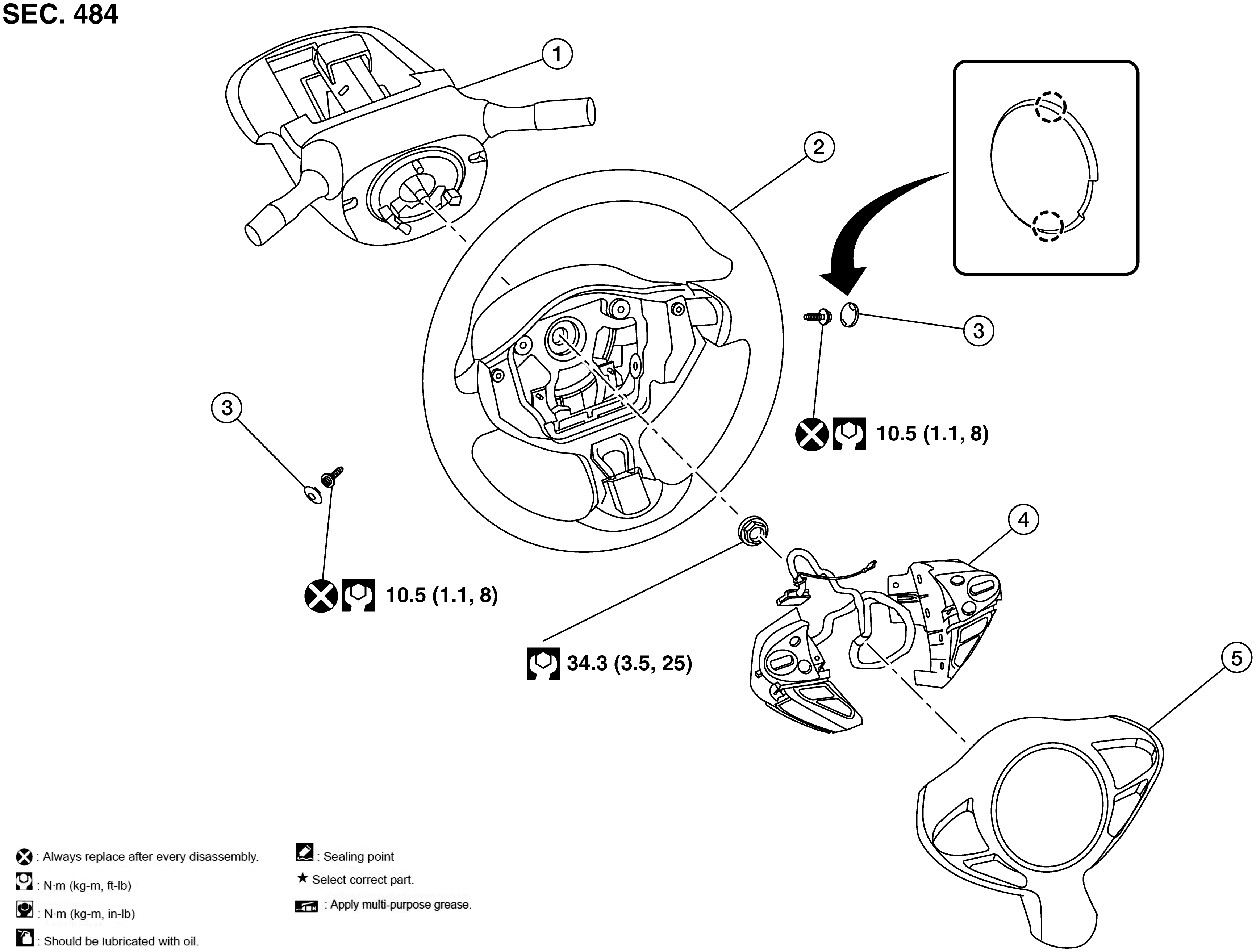

Fig 1: Steering Wheel Type 1 With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column assembly	2.	Steering wheel	3.	Steering switches
4.	Driver air bag module

Type 2

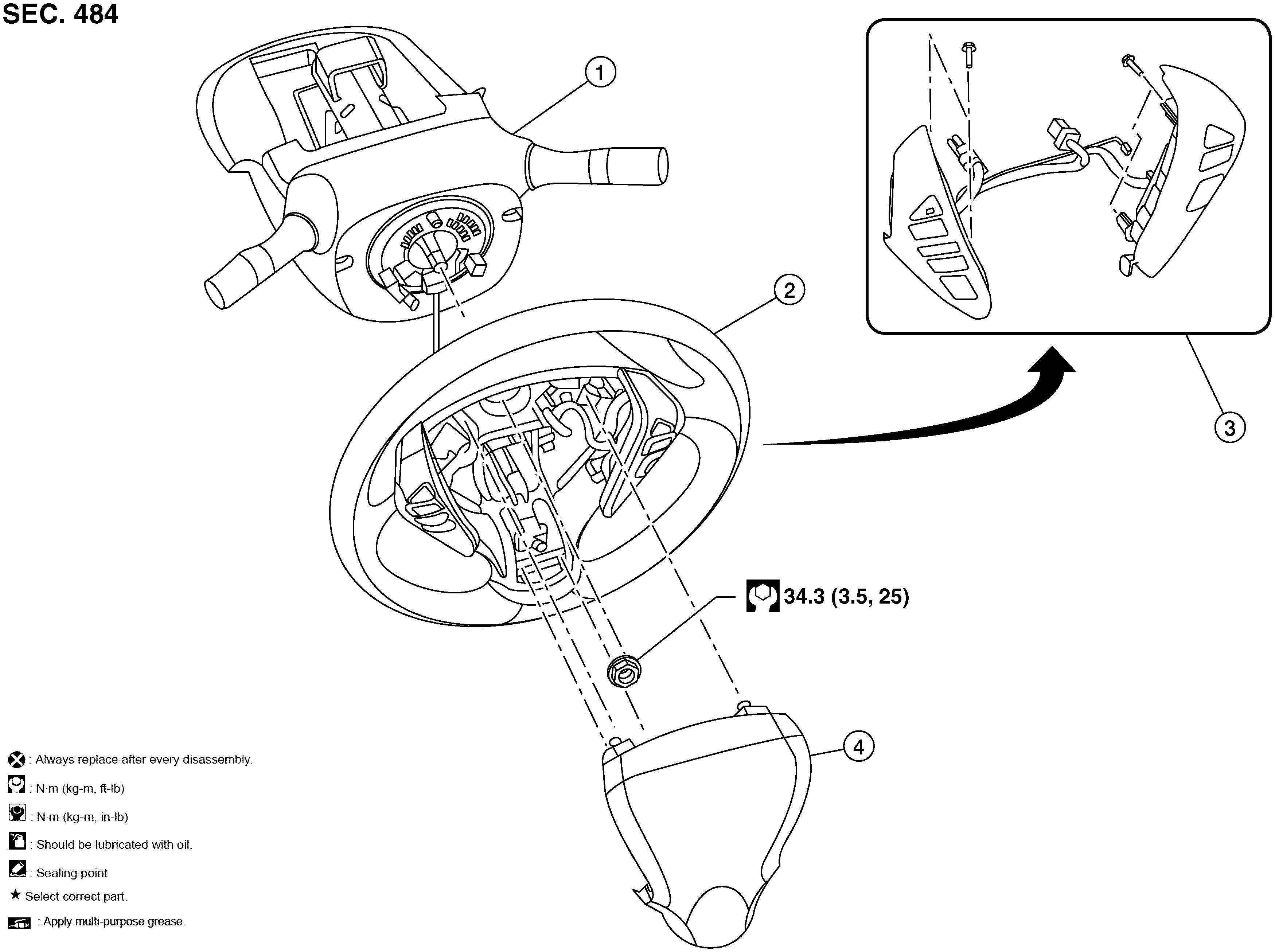

Fig 2: Steering Wheel Type 2 With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column assembly	2.	Steering wheel	3.	Side lid (LH/RH)
4.	Steering switches	5.	Driver air bag module
