Exploded View

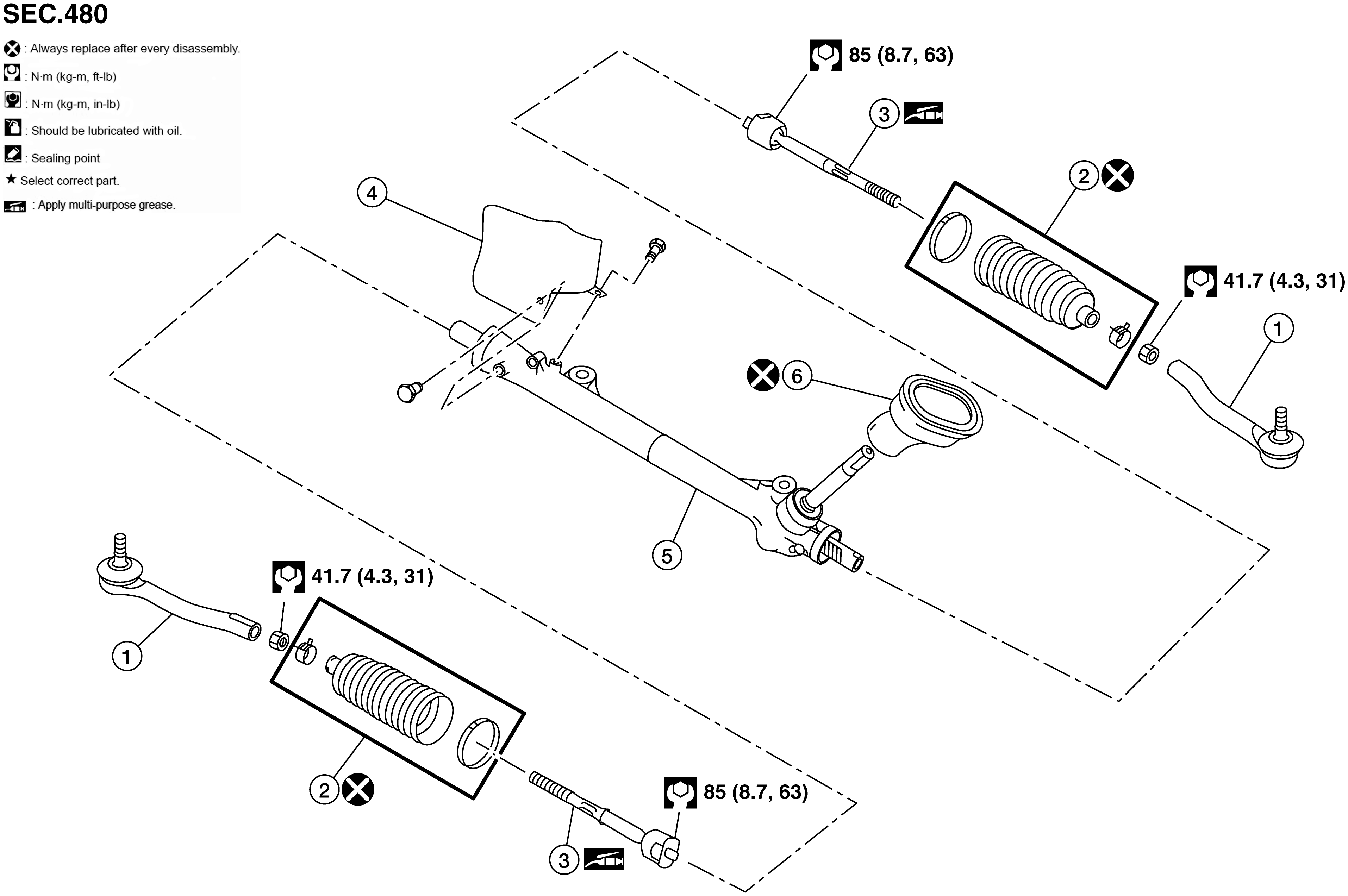

Fig 1: Steering Gear And Linkage Unit Disassembly And Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Outer socket	2.	Boot	3.	Inner socket
4.	Heat shield (if equipped)	5.	Gear housing assembly	6.	Hole cover
