Exploded View

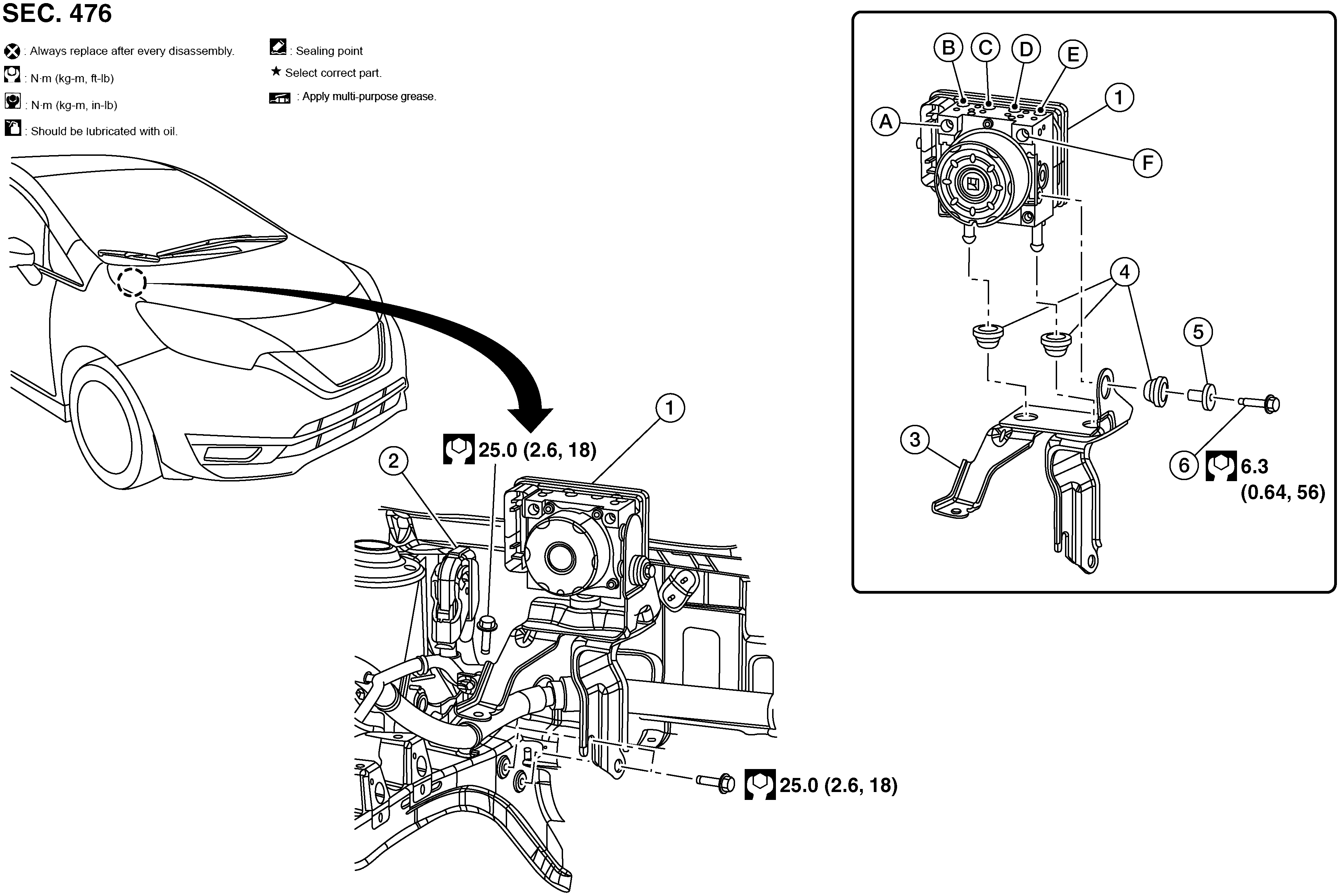

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications
GNSAWFIA1328ZZ-328Courtesy of NISSAN NORTH AMERICA, INC.
1. ABS actuator and electric unit (control unit) 2. ABS actuator and electric unit (control unit) harness connector 3. Bracket
4. Bushing 5. Insulating clip 6. Bolt
A. To master cylinder secondary side B. To rear brake tube (RH) C. To front brake tube (LH)
D. To front brake tube (RH) E. To rear brake tube (LH) F. To master cylinder primary side
