Home >> Nissan-Datsun >> 2017 >> Versa Note S Plus >> Repair and Diagnosis >> Electrical >> Body Electrical >> Power Control System (Power Distribution System) >> Removal And Installation >> Push-Button Ignition Switch >> Removal And Installation >> Removal
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Removal And Installation: Removal

  1. Remove NATS antenna amp. Refer to REMOVAL AND INSTALLATION .

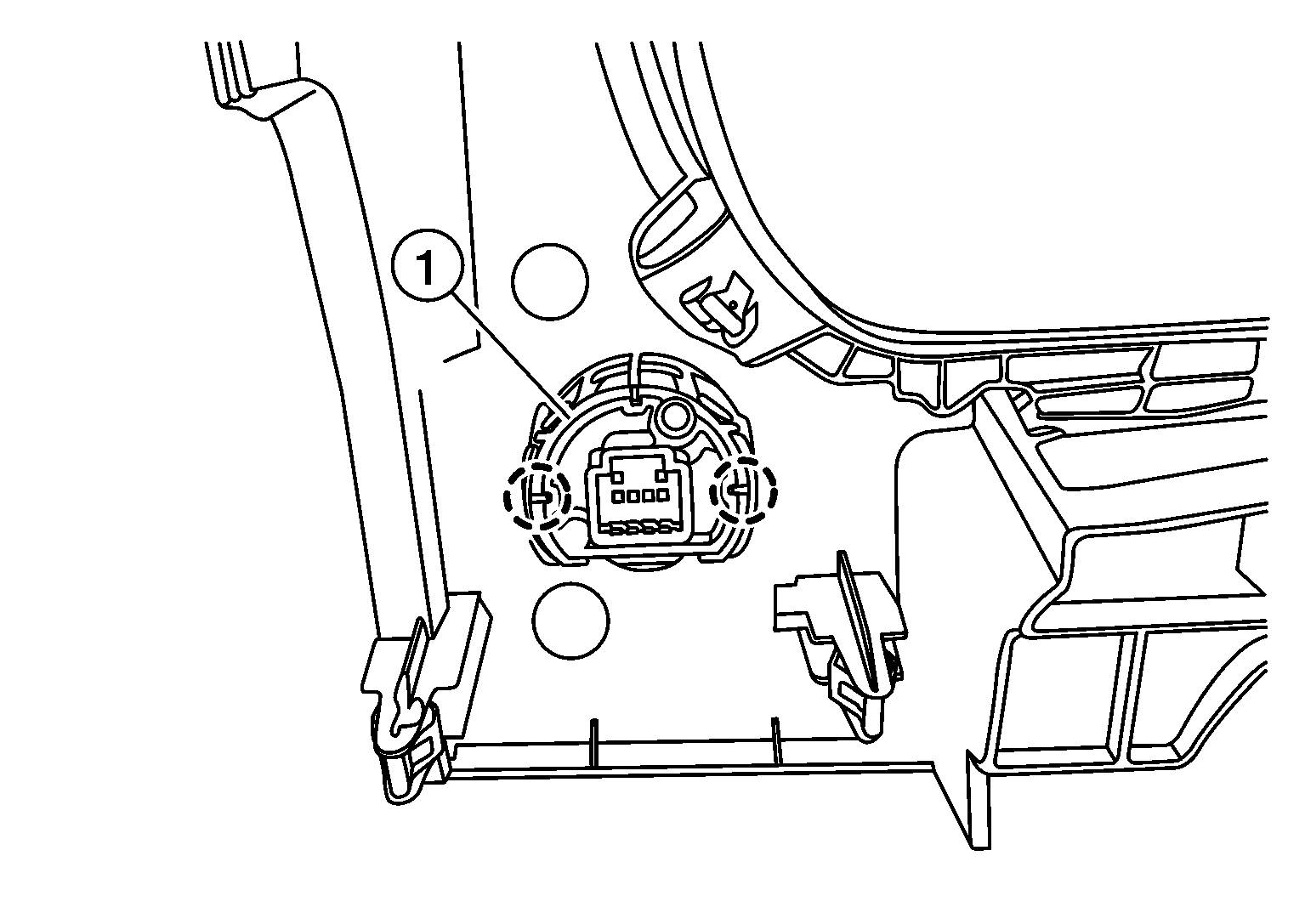

  2. Release pawls and remove the push-button ignition switch (1).
    GNSALKIA3180ZZ-180Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl
