Engine Oil Level

NOTE:

Before starting engine, position the vehicle so that it is level and check the engine oil level. If engine is already started, stop it and allow 10 minutes before checking.

  1. Pull out oil level gauge and wipe it clean.

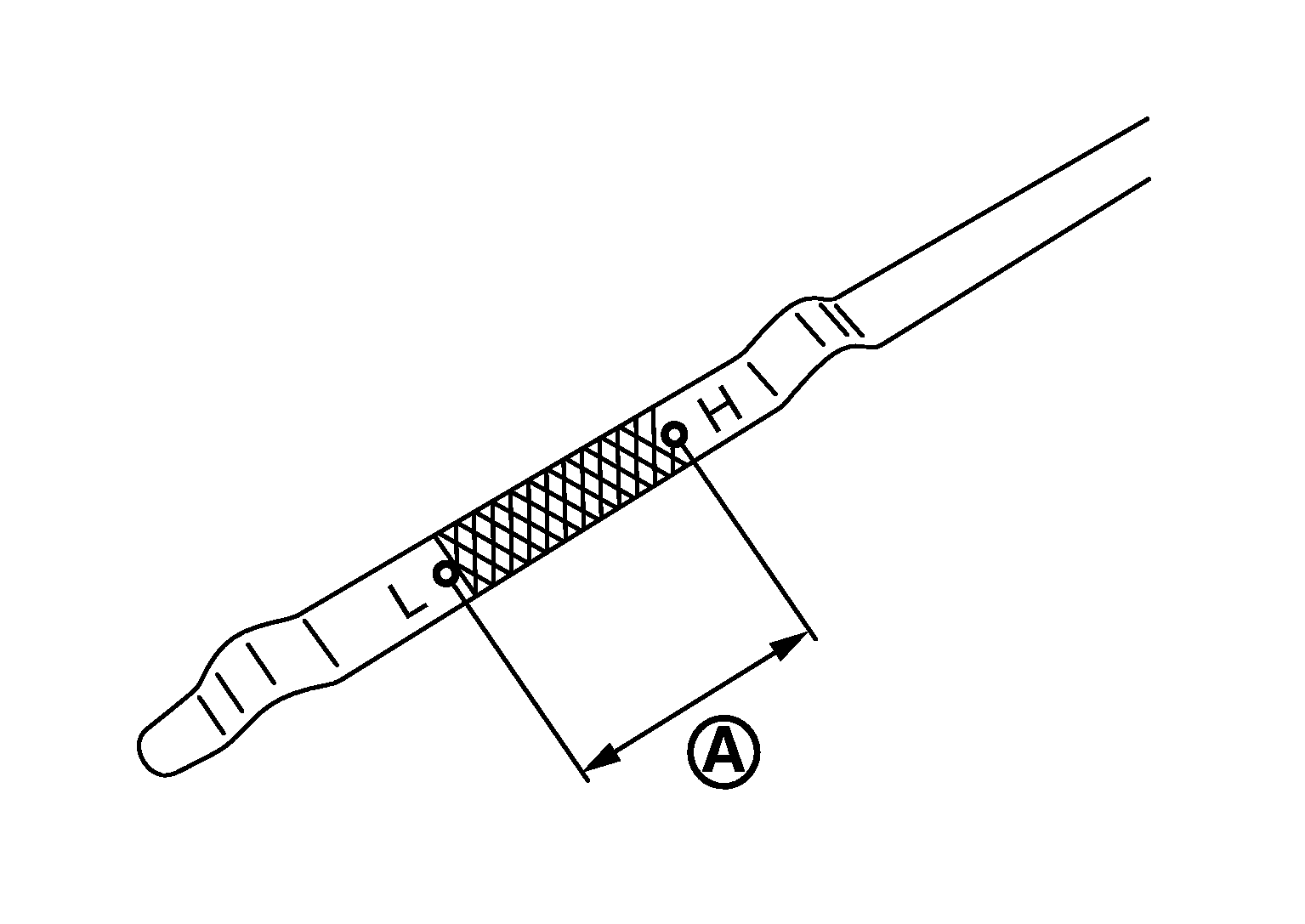

  2. Insert oil level gauge and check that the engine oil level is within the range (A) as shown.
    G06537399Courtesy of NISSAN NORTH AMERICA, INC.
  3. If it is out of range, adjust it.
