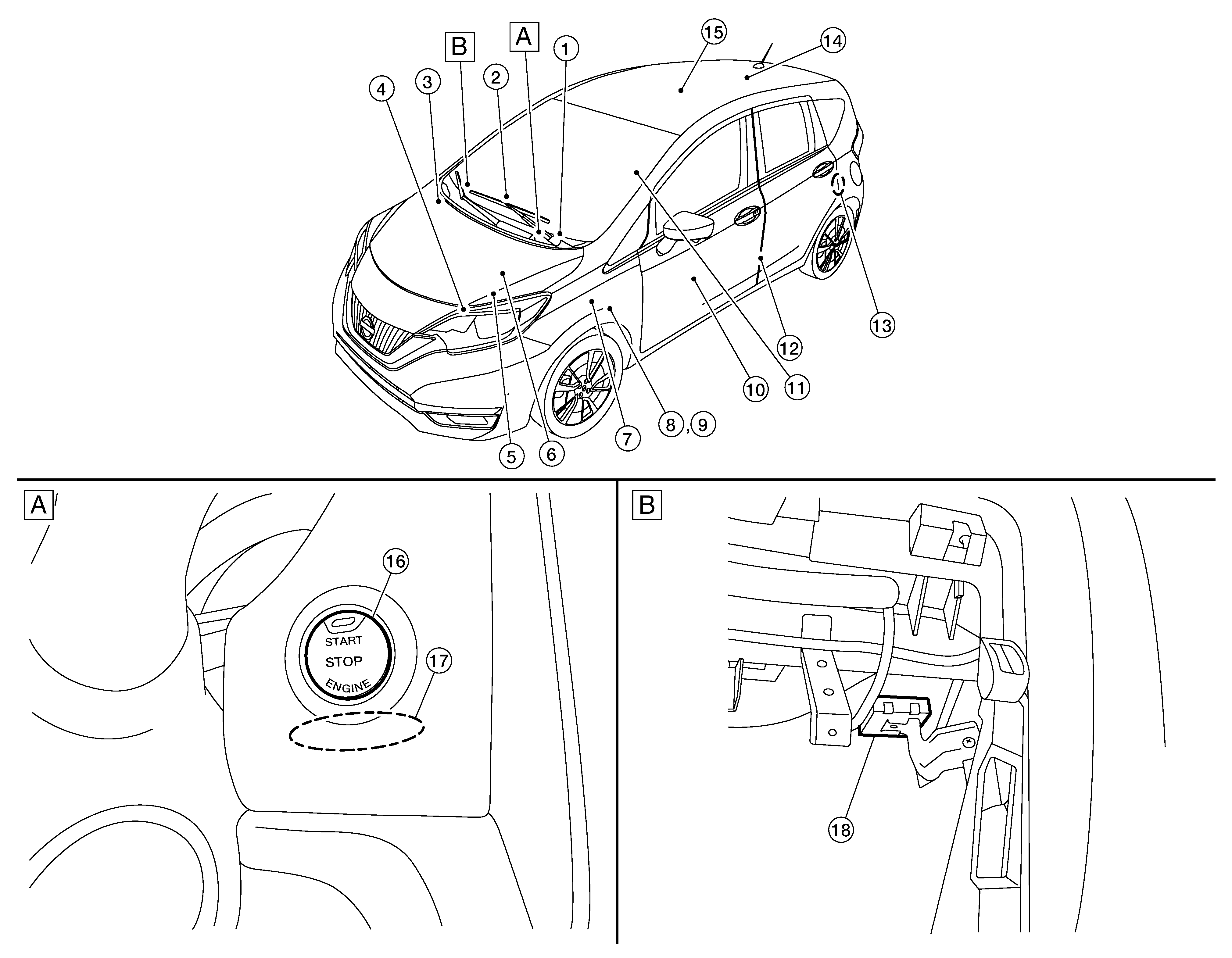

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

View right of steering column

View with glove box cover removed

No.	Component	Function
1.	Combination meter	Combination meter transmits the vehicle speed signal to BCM via CAN communication. BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed. Security indicator lamp is located on combination meter. Security indicator lamp blinks when ignition switch is in any position other than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board. Refer to COMBINATION METER .
2.	Inside key antenna (instrument center)	Inside key antenna (instrument center) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to INSIDE KEY ANTENNA .
3.	ABS actuator and electric unit (control unit)	ABS actuator and electric unit (control unit) transmits the vehicle speed signal to BCM via CAN communication. BCM also receives the vehicle speed signal from the combination meter via CAN communication. BCM compares both signals to detect the vehicle speed. Refer to ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) for detailed installation location.
4.	Intelligent Key warning buzzer	Intelligent Key warning buzzer warns the user, who is outside the vehicle, of operation confirmation according to Intelligent Key operation and door request switch operation, or of an inappropriate operation.
5.	Transmission range switch	Transmission range switch detects the CVT shift selector lever position.
6.	IPDM E/R	Starter control relay is integrated in IPDM E/R and used for the engine starting function. Starter relay is controlled by BCM, and starter control relay is controlled by IPDM E/R while communicating with BCM. IPDM E/R sends the starter control relay and starter relay status signal to BCM.
7.	BCM	BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] and VEHICLE SECURITY SYSTEM. BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key is carried into the detection area of inside key antenna, and push-button ignition switch is pressed. If the ID verification result is OK, ignition switch operation is available. Then, when the ignition switch is turned ON, BCM performs ID verification between BCM and ECM. If the ID verification result is OK, ECM can start engine. Refer to COMPONENT LOCATION for detailed installation location.
8.	Clutch interlock switch	Clutch interlock switch detects that clutch pedal is depressed, and then transmits ON/OFF signal to the BCM.
9.	Stop lamp switch	Stop lamp switch detects that brake pedal is depressed, and then transmits ON/OFF signal to the BCM.
10.	Main power window and door lock/unlock switch	Door lock and unlock switch is integrated into the main power window and door lock/unlock switch. Door lock and unlock switch transmits door lock/unlock operation signal to BCM. Refer to MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH .
11.	CVT shift selector (park position switch)	Park position switch is integrated into the CVT shift selector and detects that the selector lever is in the P (park) position, then transmits ON/OFF signal to the BCM and IPDM E/R.
12.	Front door switch LH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
13.	Rear door switch LH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
14.	Inside key antenna (trunk room)	Inside key antenna (trunk room) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to INSIDE KEY ANTENNA .
15.	Inside key antenna (console)	Inside key antenna (console) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to INSIDE KEY ANTENNA .
16.	Push-button ignition switch	Push-button ignition switch has push switch inside which detects that push-button ignition switch is pressed, and then transmits ON/OFF signal to BCM. BCM changes the ignition switch position with the operation of push-button ignition switch. BCM maintains the ignition switch position status while push-button ignition switch is not operated.
17.	NATS antenna amp.	ID verification is performed between the BCM and the transponder integrated into the Intelligent Key via the NATS antenna amp.
18.	Remote keyless entry receiver	Remote keyless entry receiver receives button operation signal and key ID signal of Intelligent Key, and them transmits them to the BCM. Refer to REMOTE KEYLESS ENTRY RECEIVER .
