Power Window System: Wiring Diagram

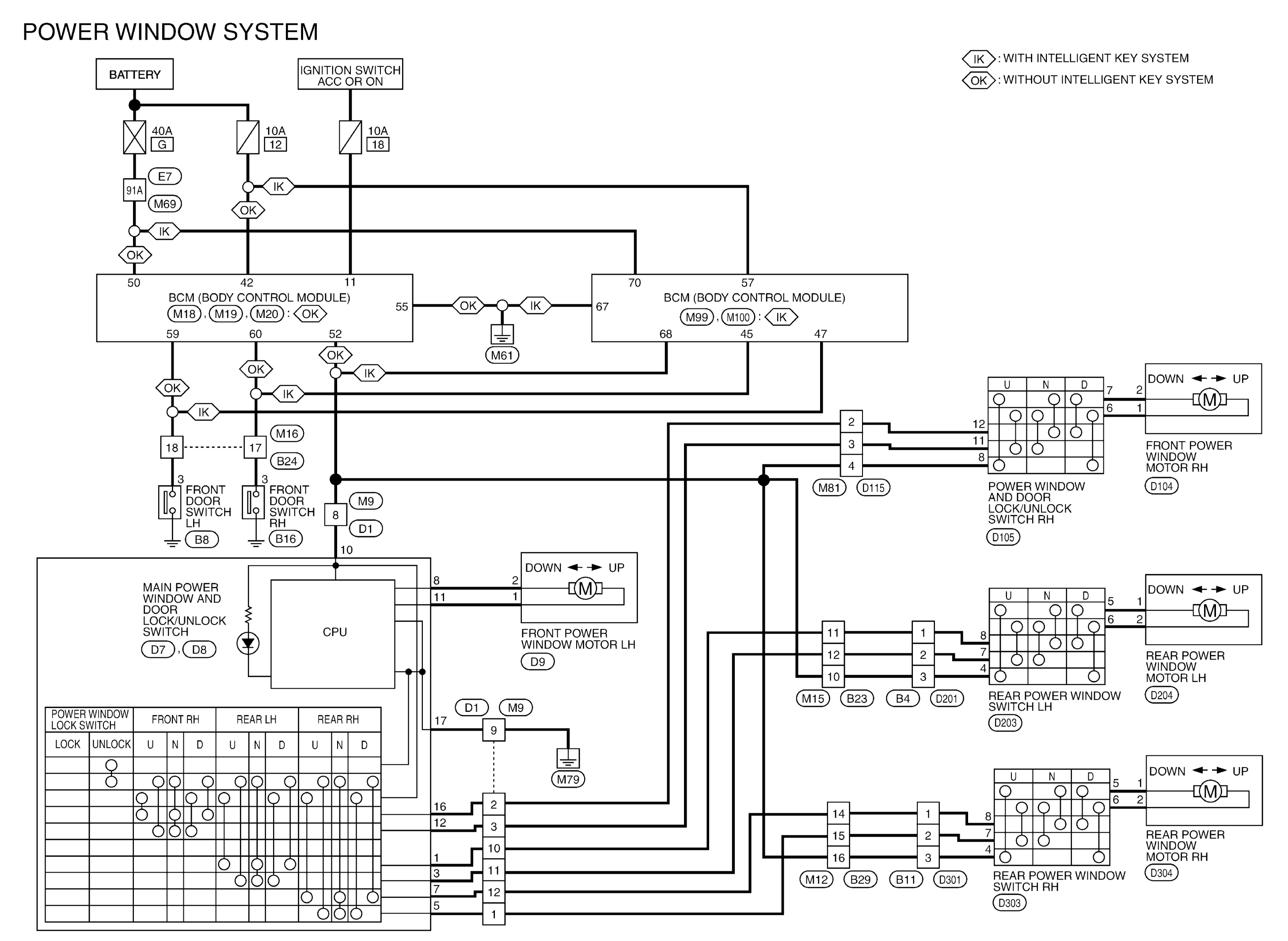

GNSABKWA3596GB-596

Courtesy of NISSAN NORTH AMERICA, INC.

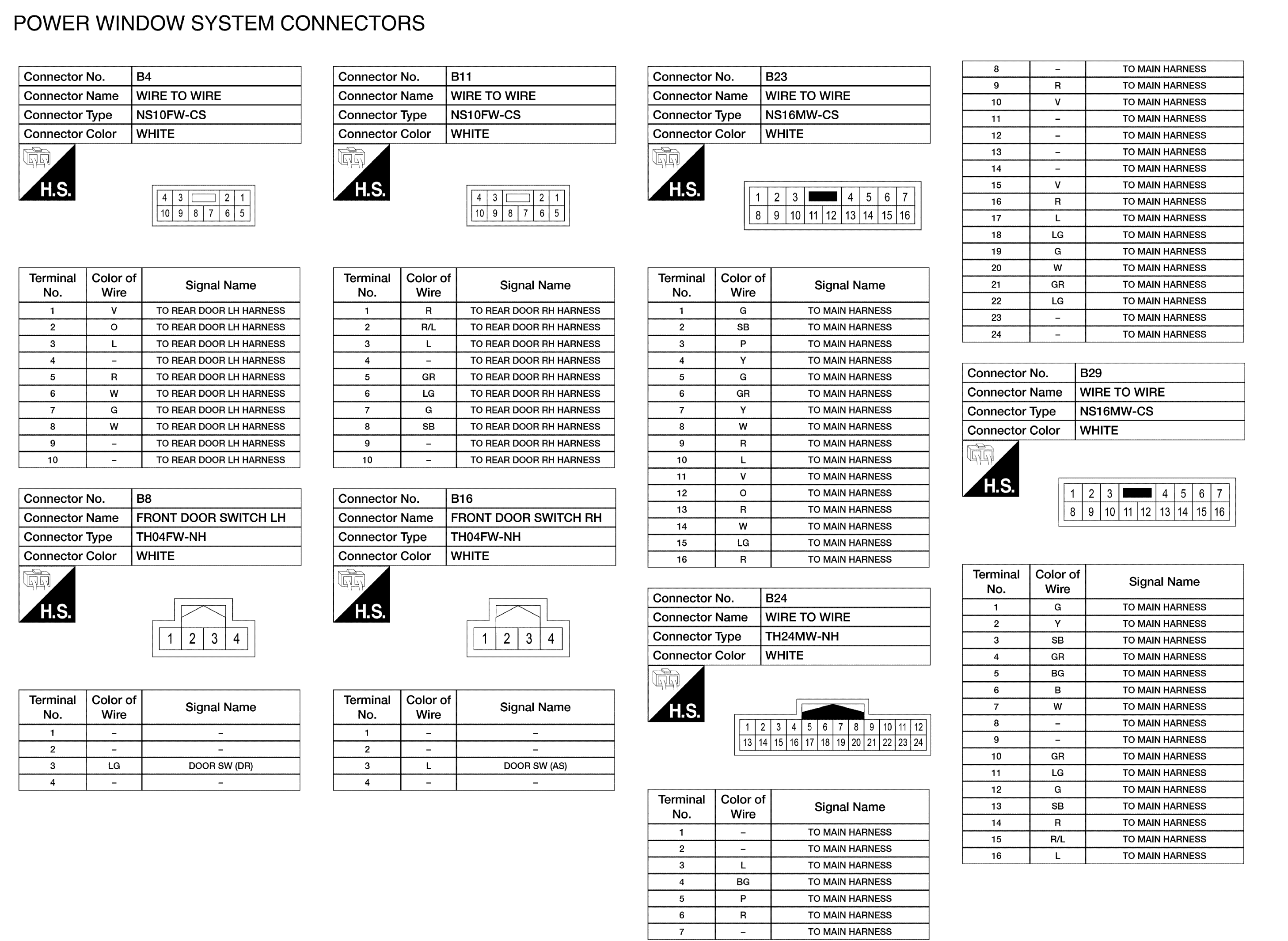

GNSABKIA9360GB-360

Courtesy of NISSAN NORTH AMERICA, INC.

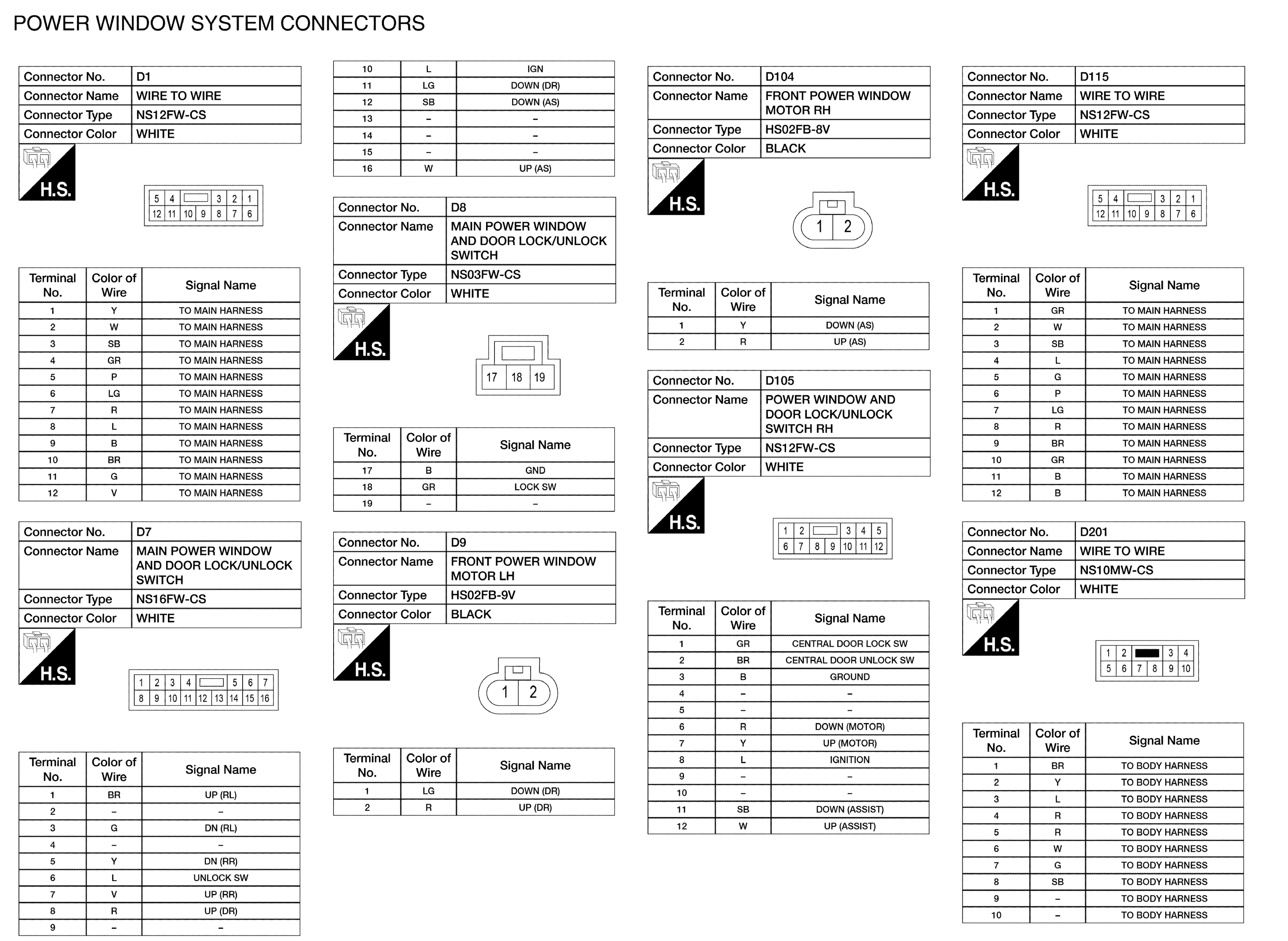

GNSABKIA9361GB-361

Courtesy of NISSAN NORTH AMERICA, INC.

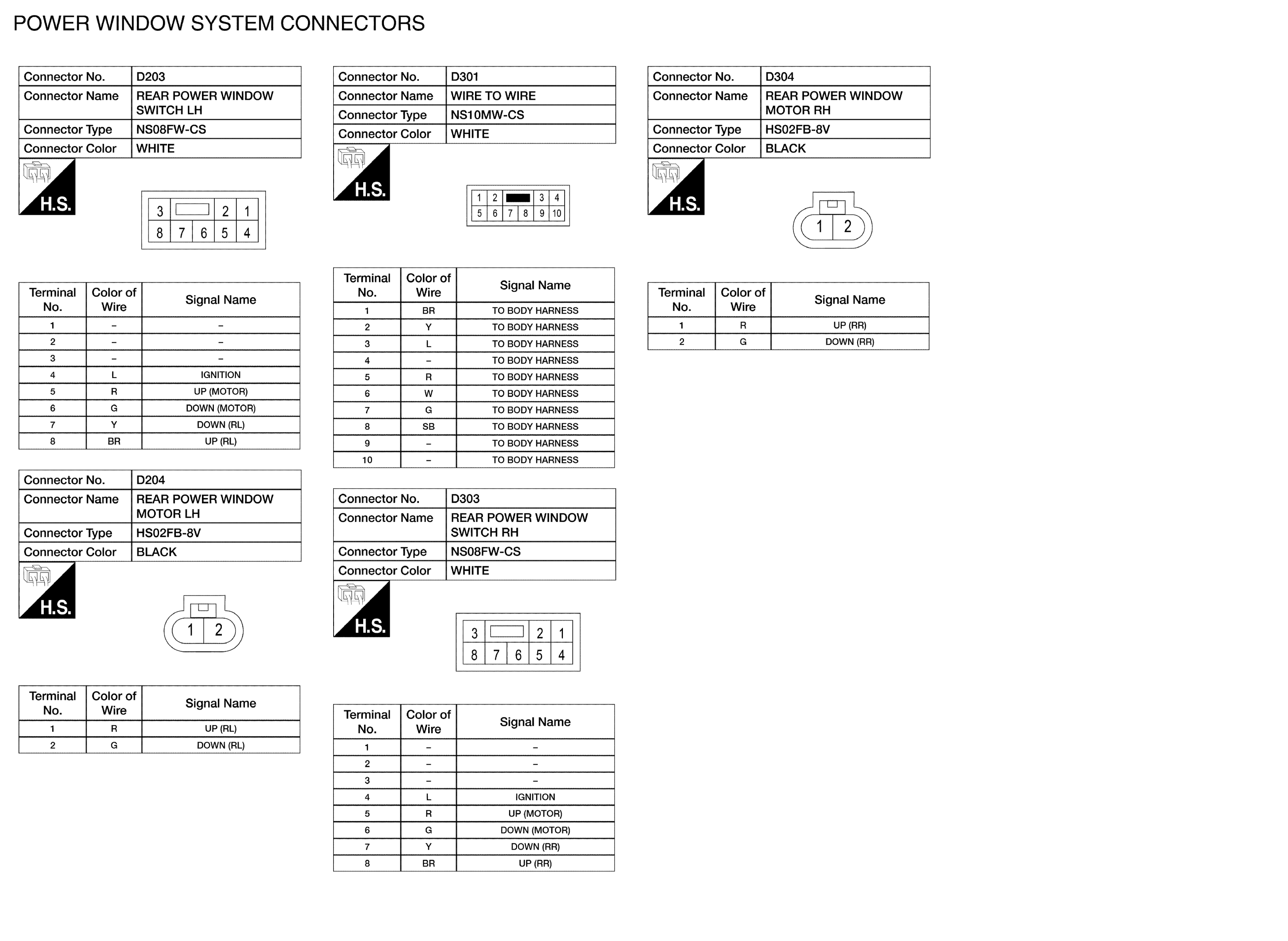

GNSABKIA9362GB-362

Courtesy of NISSAN NORTH AMERICA, INC.

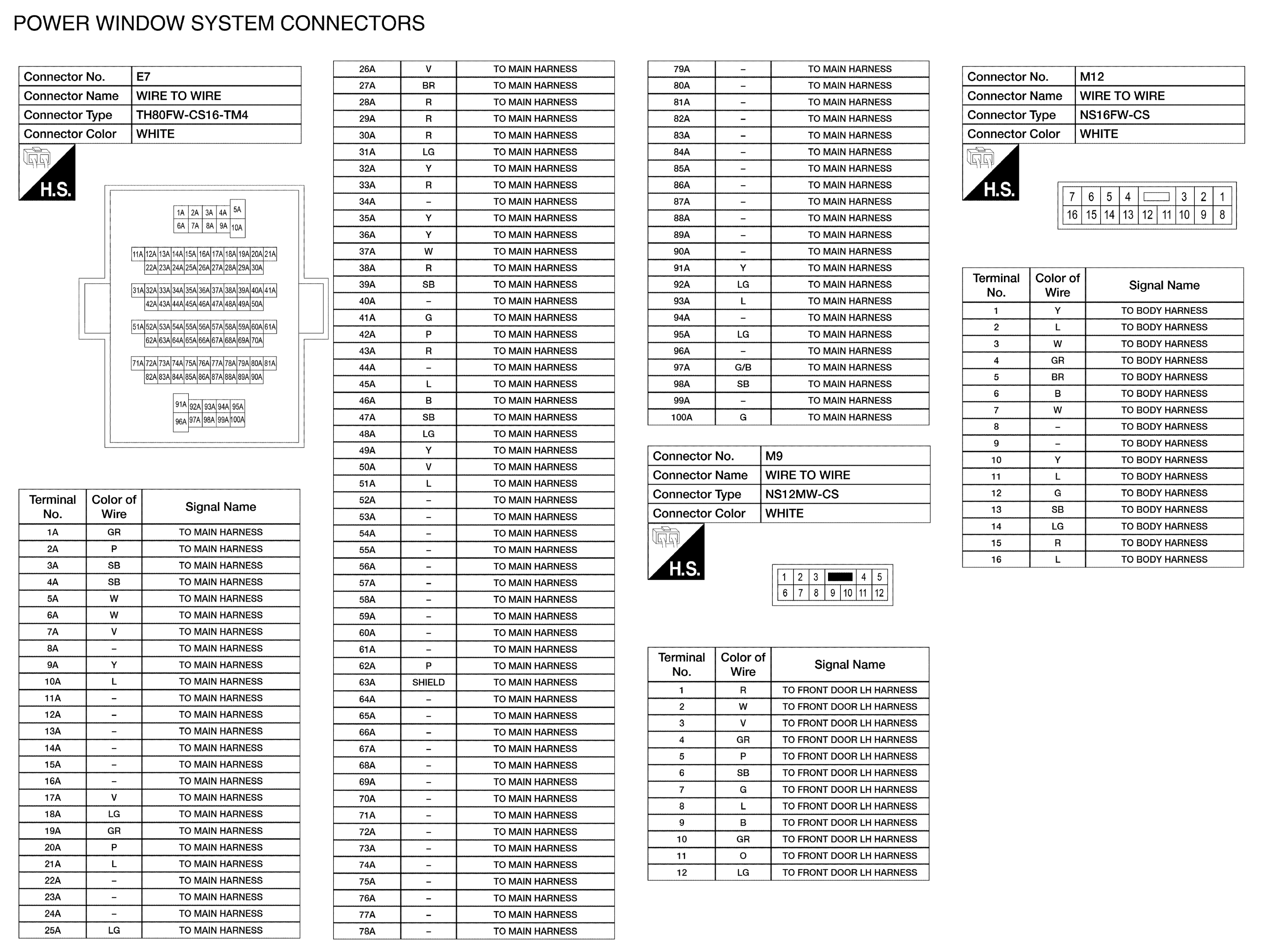

GNSABKIA9363GB-363

Courtesy of NISSAN NORTH AMERICA, INC.

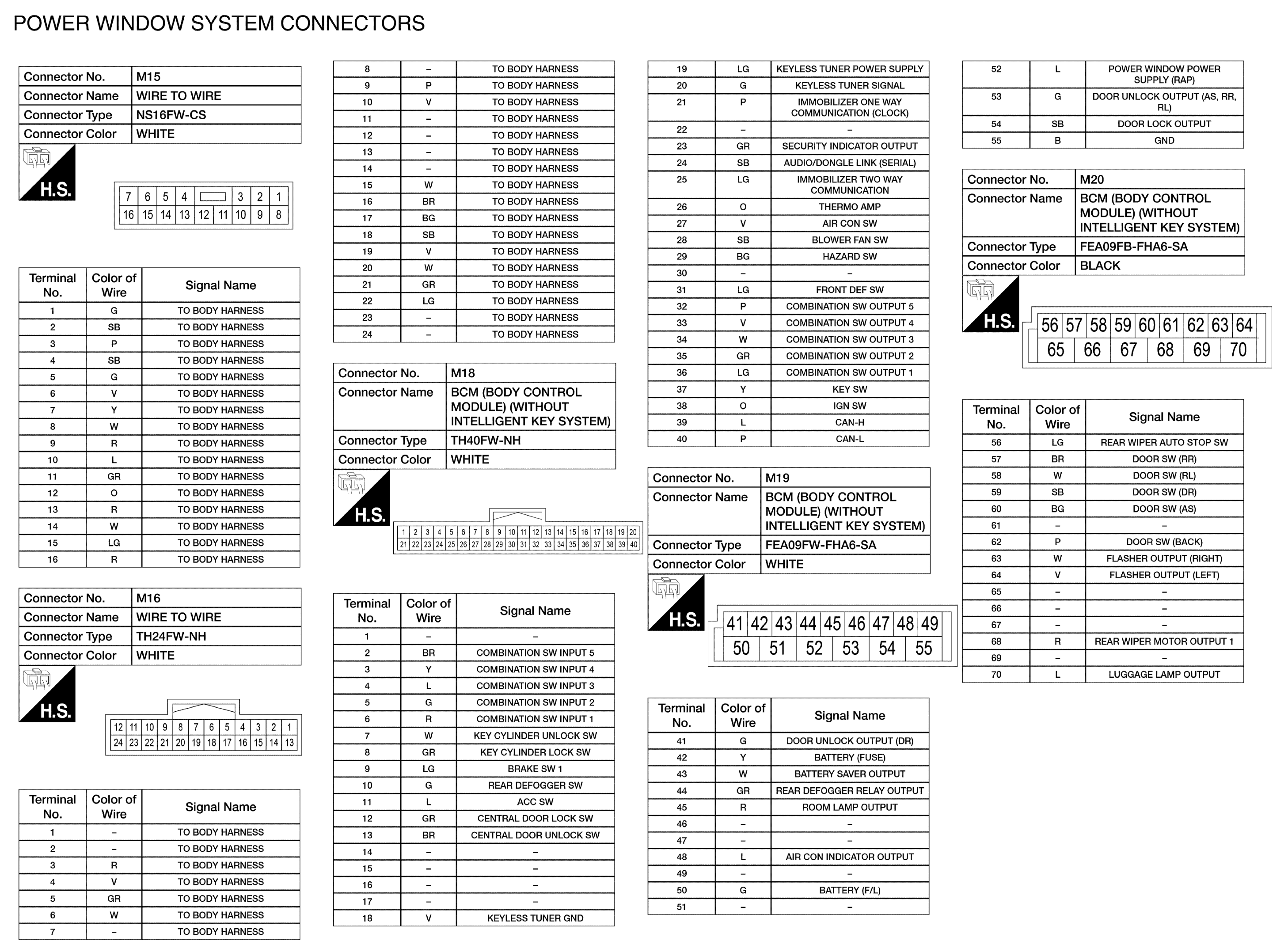

GNSABKIA9364GB-364

Courtesy of NISSAN NORTH AMERICA, INC.

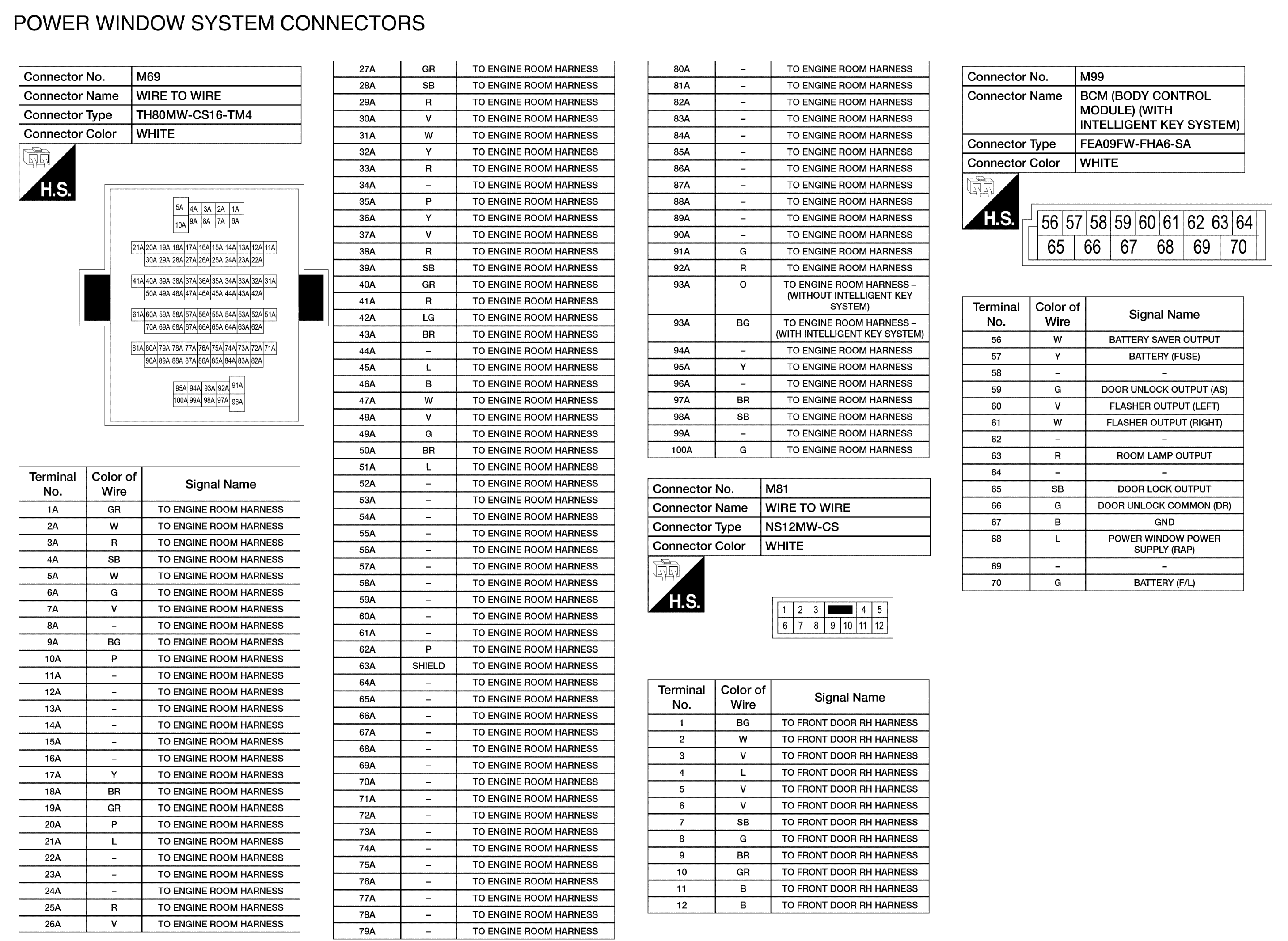

GNSABKIA9365GB-365

Courtesy of NISSAN NORTH AMERICA, INC.

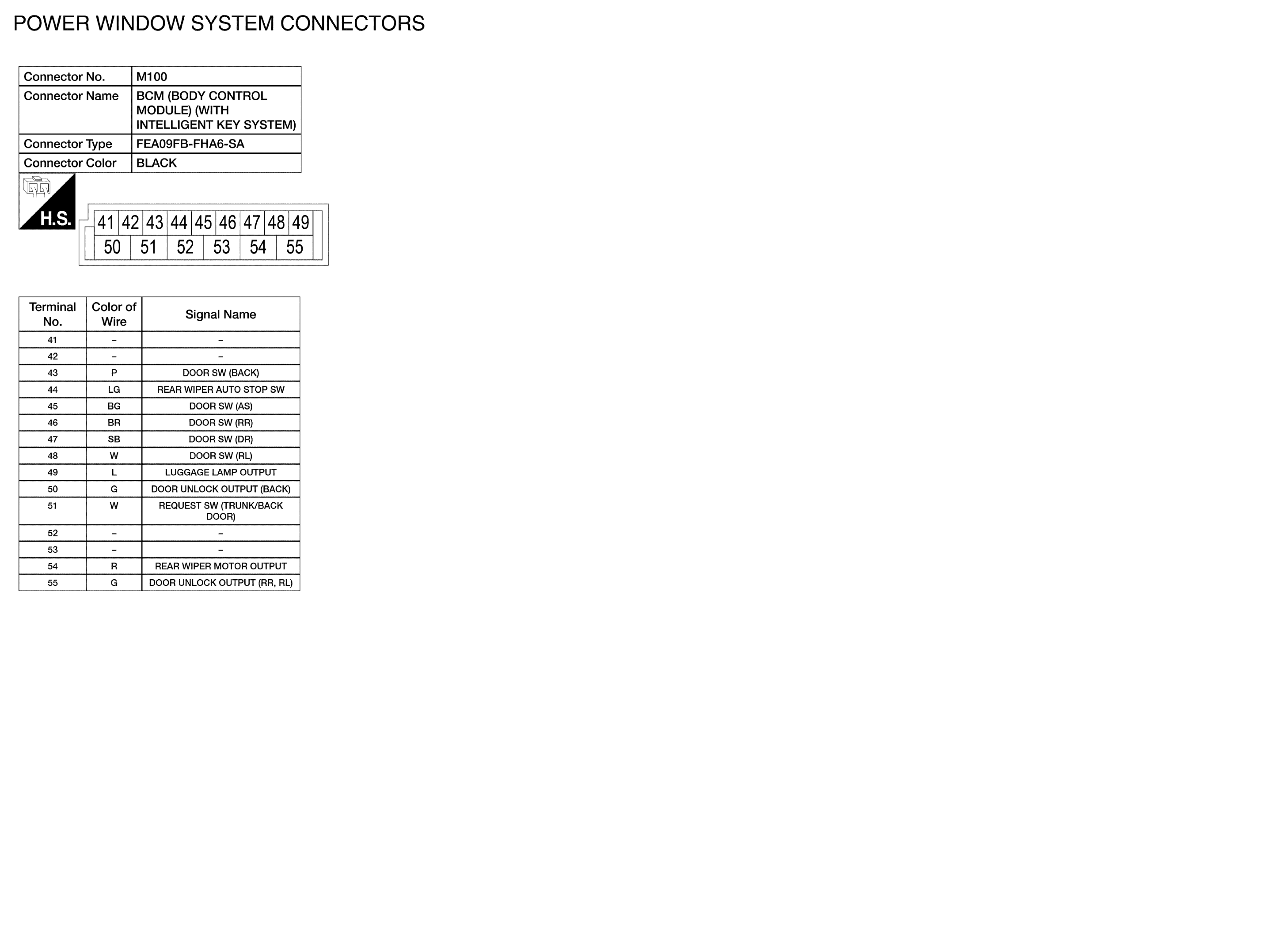

GNSABKIA9366GB-366

Courtesy of NISSAN NORTH AMERICA, INC.
