Removal And Installation: Installation

Install the generator bracket (if removed) using the following procedure:

Courtesy of NISSAN NORTH AMERICA, INC.
1. Temporarily tighten bolts.

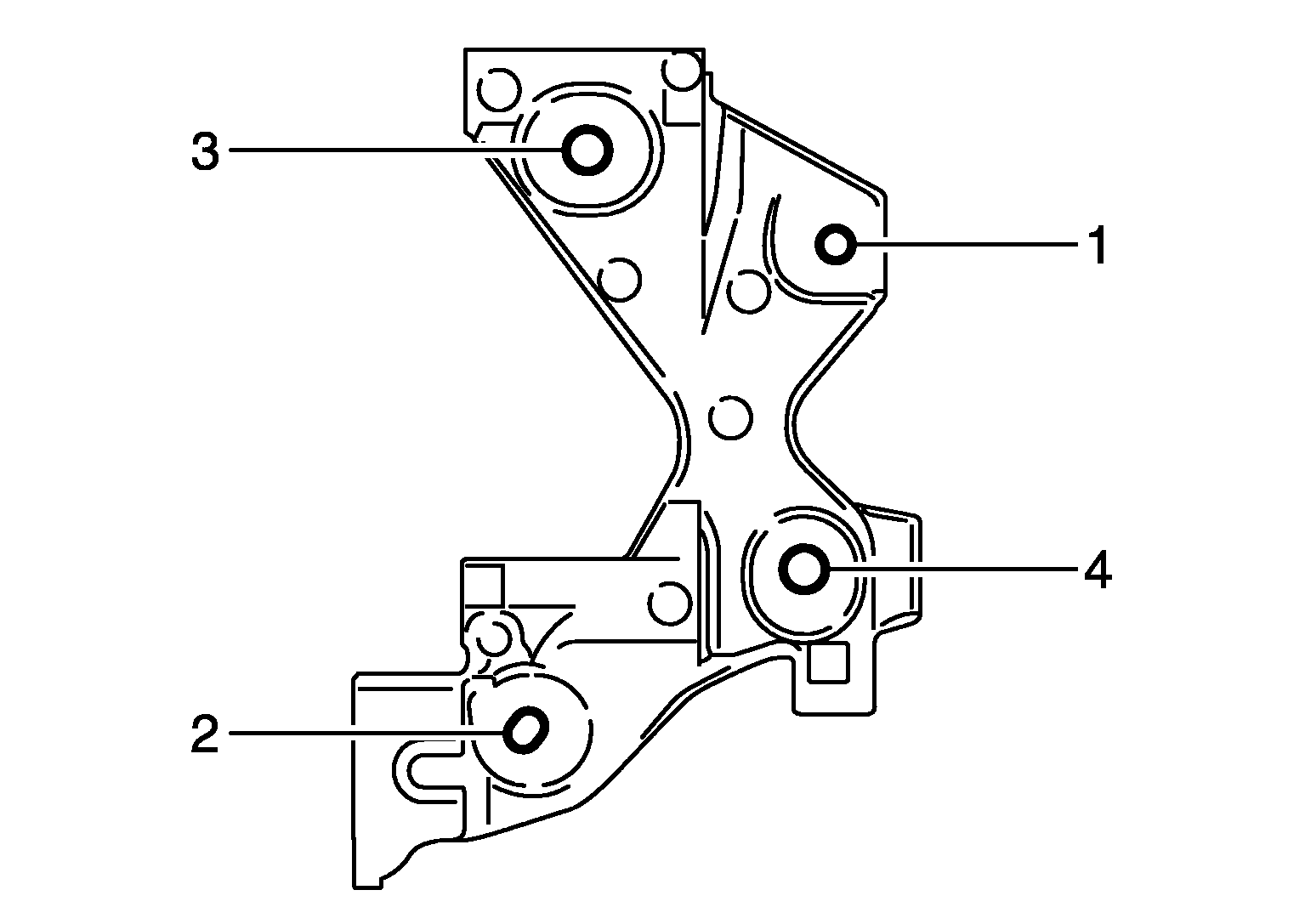

2. Tighten bolts to specification in numerical order as shown.
Install the generator using the following procedure:
1. Temporarily tighten the generator bolts in order from the lower to the upper.
2. Tighten the generator bolts to the specification starting with the top bolt.
3. Install "B" terminal harness and "B" terminal nut.
  CAUTION:
  Be sure to tighten "B" terminal nut carefully.
Installation of the remaining components is in the reverse order of removal.
