Diagnostic Test

1. Turn ignition switch OFF.
2. Disconnect ECT sensor harness connector.
3. Remove ECT sensor. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .

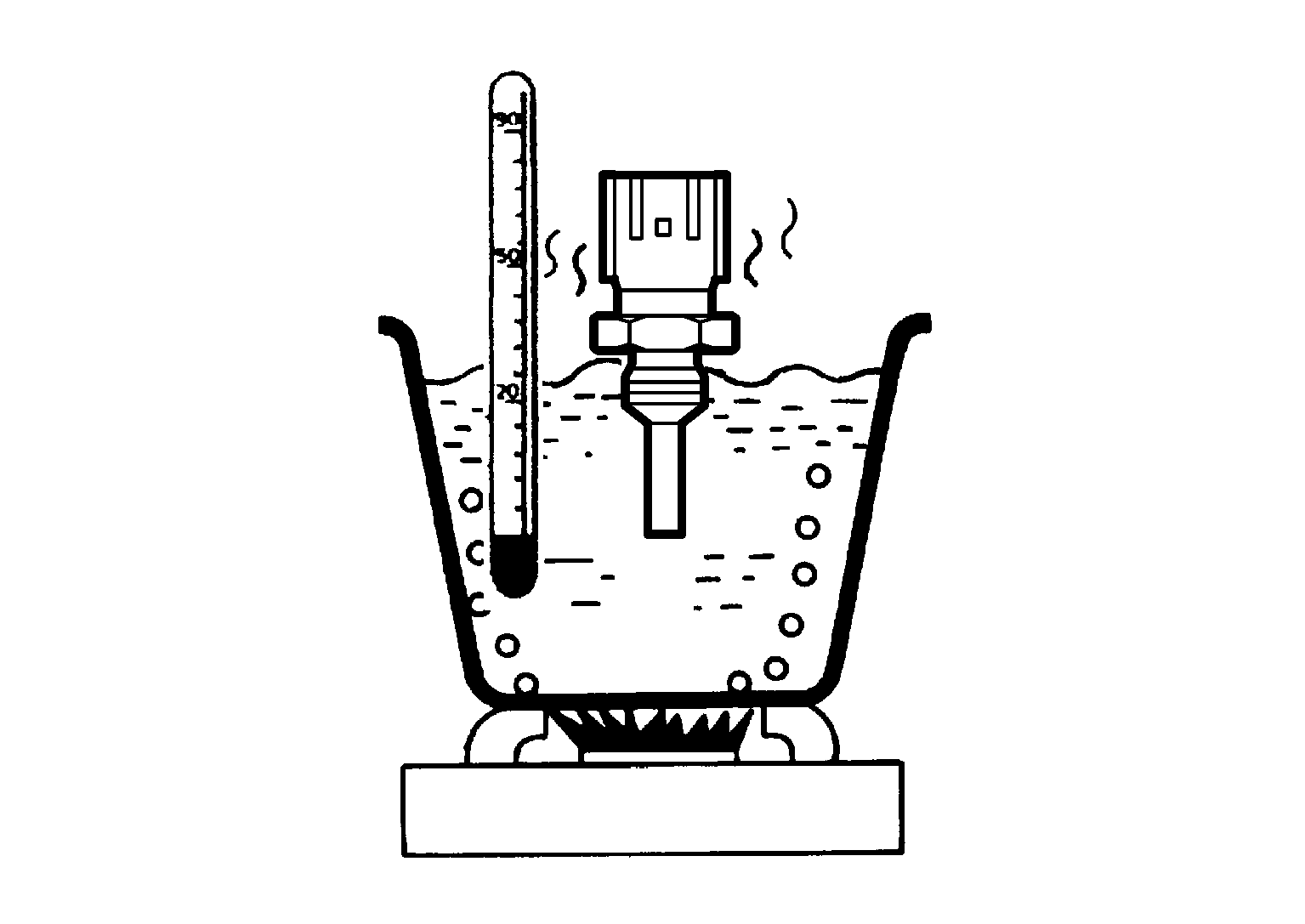

4. Check resistance between ECT sensor terminals by heating with hot water as shown in the figure.

   Courtesy of NISSAN NORTH AMERICA, INC.

   ECT sensor		Condition		Resistance (kΩ)
   Terminal
   1	2	Temperature [°C (°F)]	20 (68)	2.10 - 2.90
   			50 (122)	0.68 - 1.00
   			90 (194)	0.236 - 0.260

Is the inspection result normal?

YES

Check intermittent incident. Refer to INTERMITTENT INCIDENT .

NO

Proceed to DIAGNOSIS PROCEDURE .
