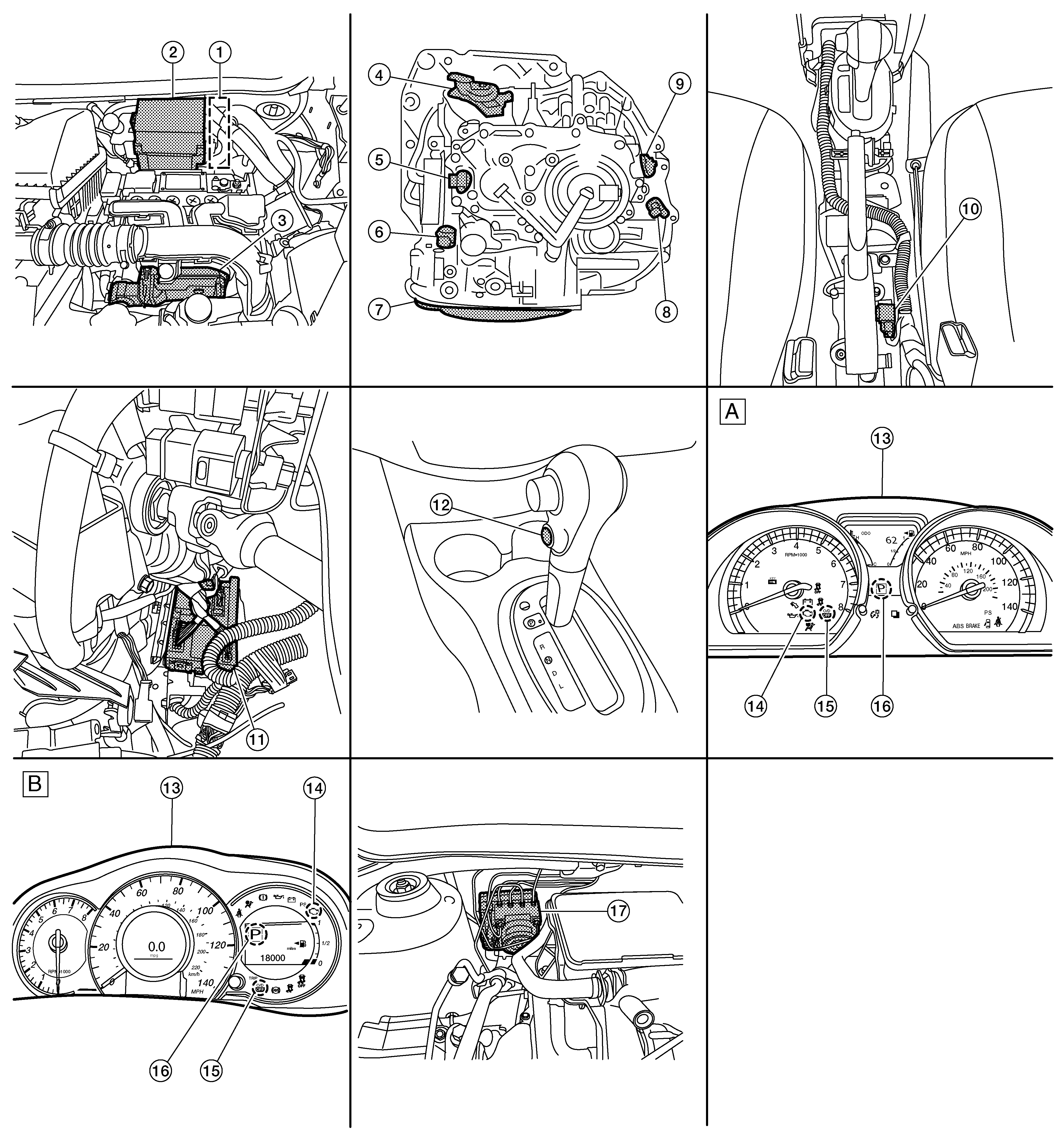

Component Location
| A. | Combination meter type A | B. | Combination meter type B |
| No. | Component | Function | |
|---|---|---|---|
| 1 | ECM | Mainly transmits the following signal to TCM via CAN communication.
Mainly receives the following signals from TCM via CAN communication.
|
|
| 2 | IPDM E/R | Mainly transmits the following signal to TCM via CAN communication.
|
|
| 3 | TCM | TCM | |
| 4 | Transmission range switch | TRANSMISSION RANGE SWITCH | |
| 5 | Primary speed sensor | PRIMARY SPEED SENSOR | |
| 6 | CVT unit | - | |
| 7 | Control valve | ROM assembly* | ROM ASSEMBLY |
| CVT fluid temperature sensor* | CVT FLUID TEMPERATURE SENSOR | ||
| Secondary pressure sensor* | SECONDARY PRESSURE SENSOR | ||
| Primary pressure solenoid valve* | PRIMARY PRESSURE SOLENOID VALVE | ||
| Low brake solenoid valve* | LOW BRAKE SOLENOID VALVE | ||
| High clutch & reverse brake solenoid valve* | HIGH CLUTCH & REVERSE BRAKE SOLENOID VALVE | ||
| Torque converter clutch solenoid valve* | TORQUE CONVERTER CLUTCH SOLENOID VALVE | ||
| Line pressure solenoid valve* | LINE PRESSURE SOLENOID VALVE | ||
| 8 | Output speed sensor | OUTPUT SPEED SENSOR | |
| 9 | Secondary speed sensor | SECONDARY SPEED SENSOR | |
| 10 | G sensor | G SENSOR | |
| 11 | BCM | Mainly transmits the following signal to TCM via CAN communication.
|
|
| 12 | Overdrive control switch | OVERDRIVE CONTROL SWITCH | |
| 13 | Combination meter | Mainly transmits the following signal to TCM via CAN communication.
Mainly receives the following signals from TCM via CAN communication.
|
|
| 14 | Malfunction indicator lamp (MIL) | MALFUNCTION INDICATOR LAMP (MIL) | |
| 15 | O/D OFF indicator lamp | O/D OFF INDICATOR LAMP | |
| 16 | Shift position indicator | SHIFT POSITION INDICATOR | |
| 17 | ABS actuator and electric unit (control unit) | Mainly transmits the following signal to TCM via CAN communication.
|
|
*: These components are included in control valve assembly.
