Exploded View

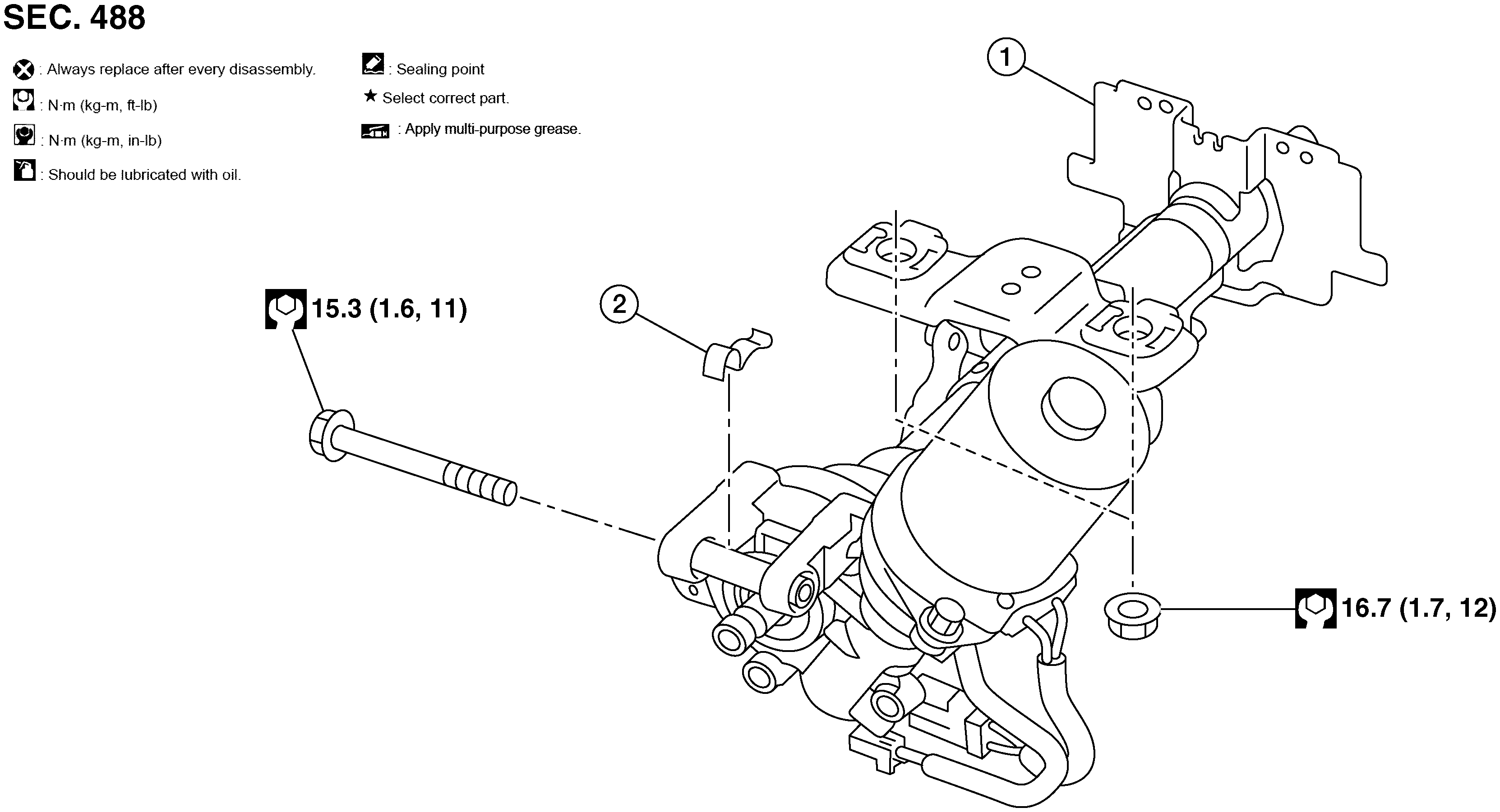

Fig 1: Steering Column With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column
2.
Clamp
Courtesy of NISSAN NORTH AMERICA, INC.
