Intelligent Key System/Engine Start Function: Wiring Diagram

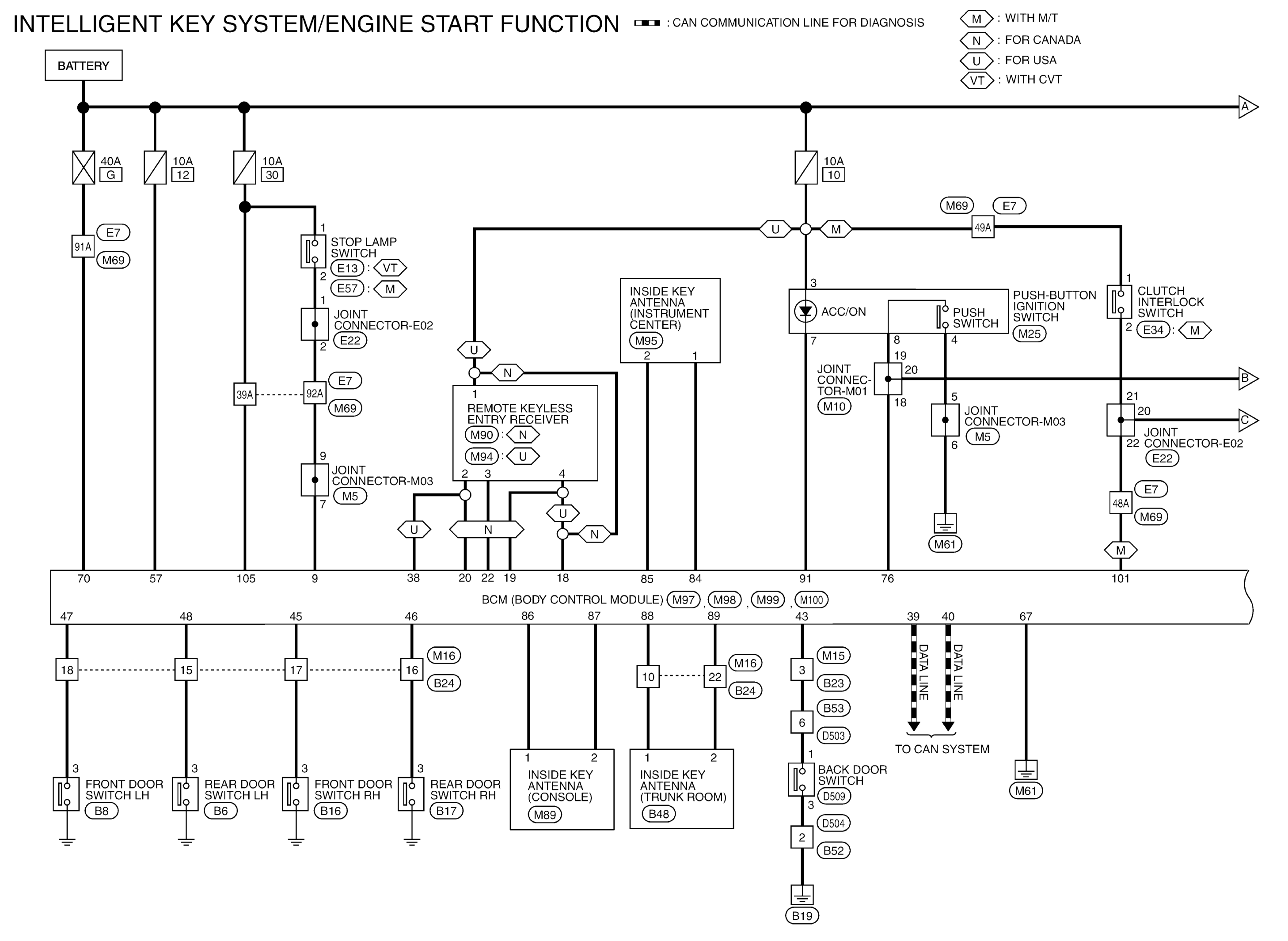

GNSABKWA3604GB-604

Courtesy of NISSAN NORTH AMERICA, INC.

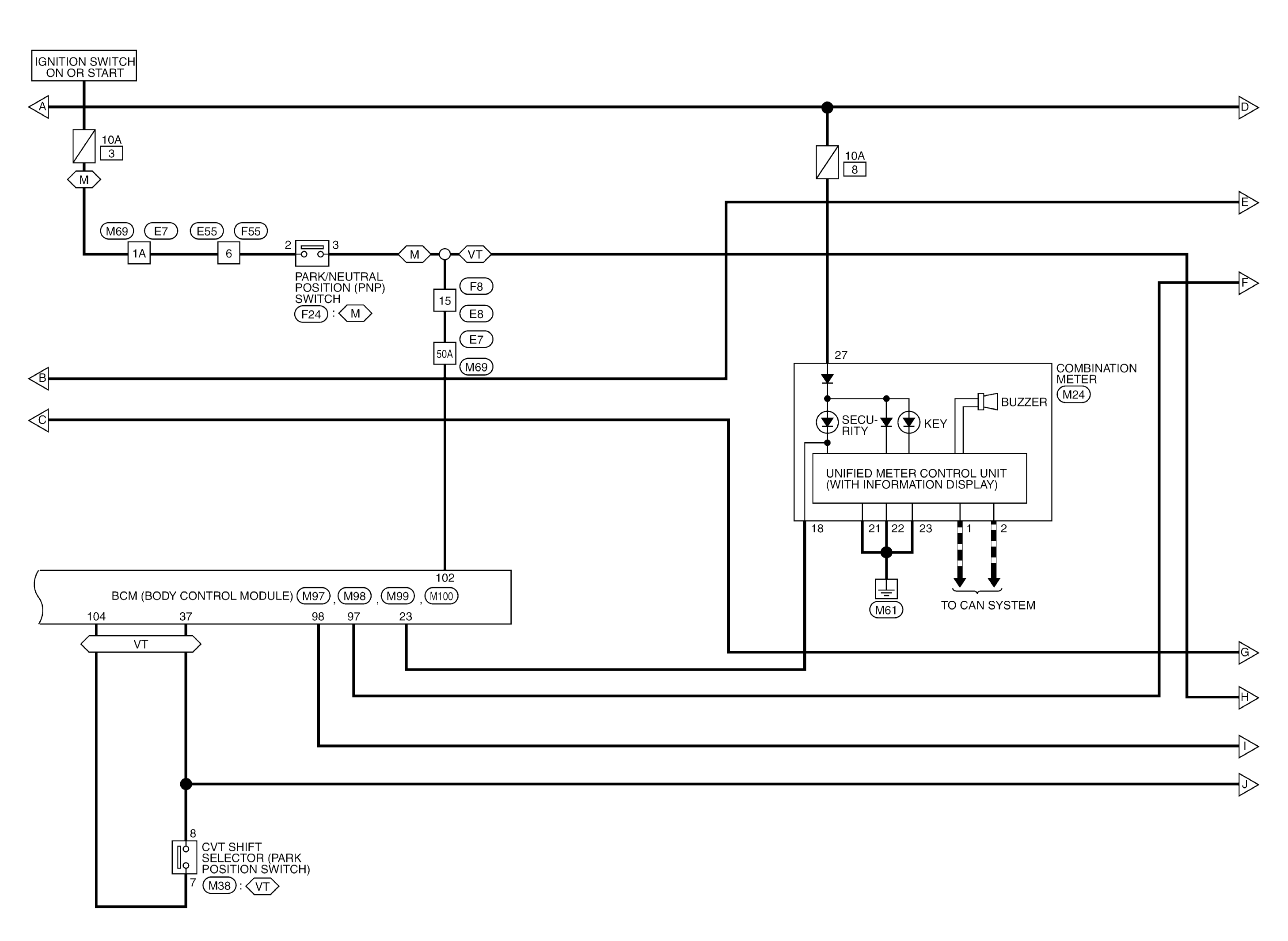

GNSABKWA3605GB-605

Courtesy of NISSAN NORTH AMERICA, INC.

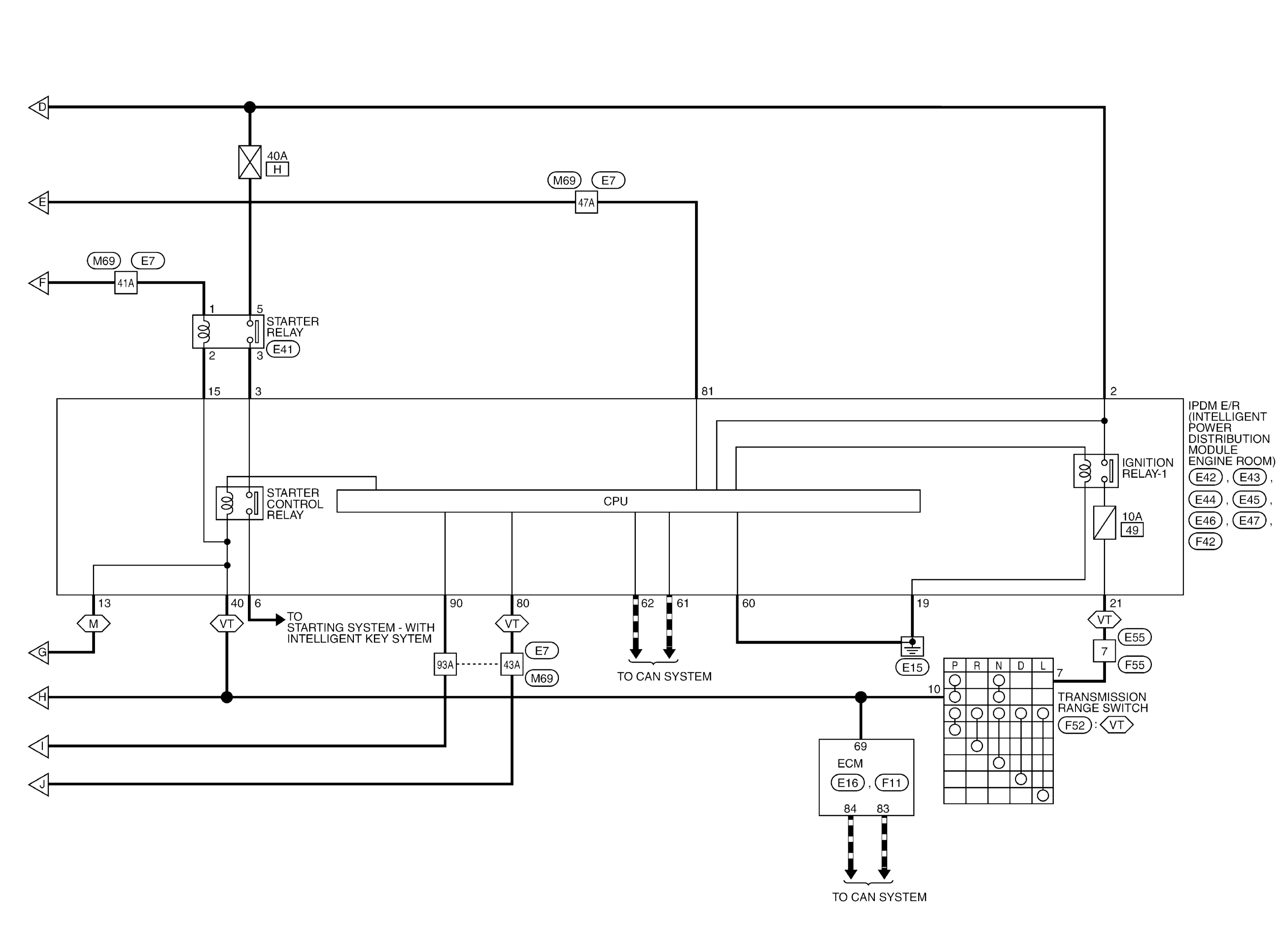

GNSABKWA3606GB-606

Courtesy of NISSAN NORTH AMERICA, INC.

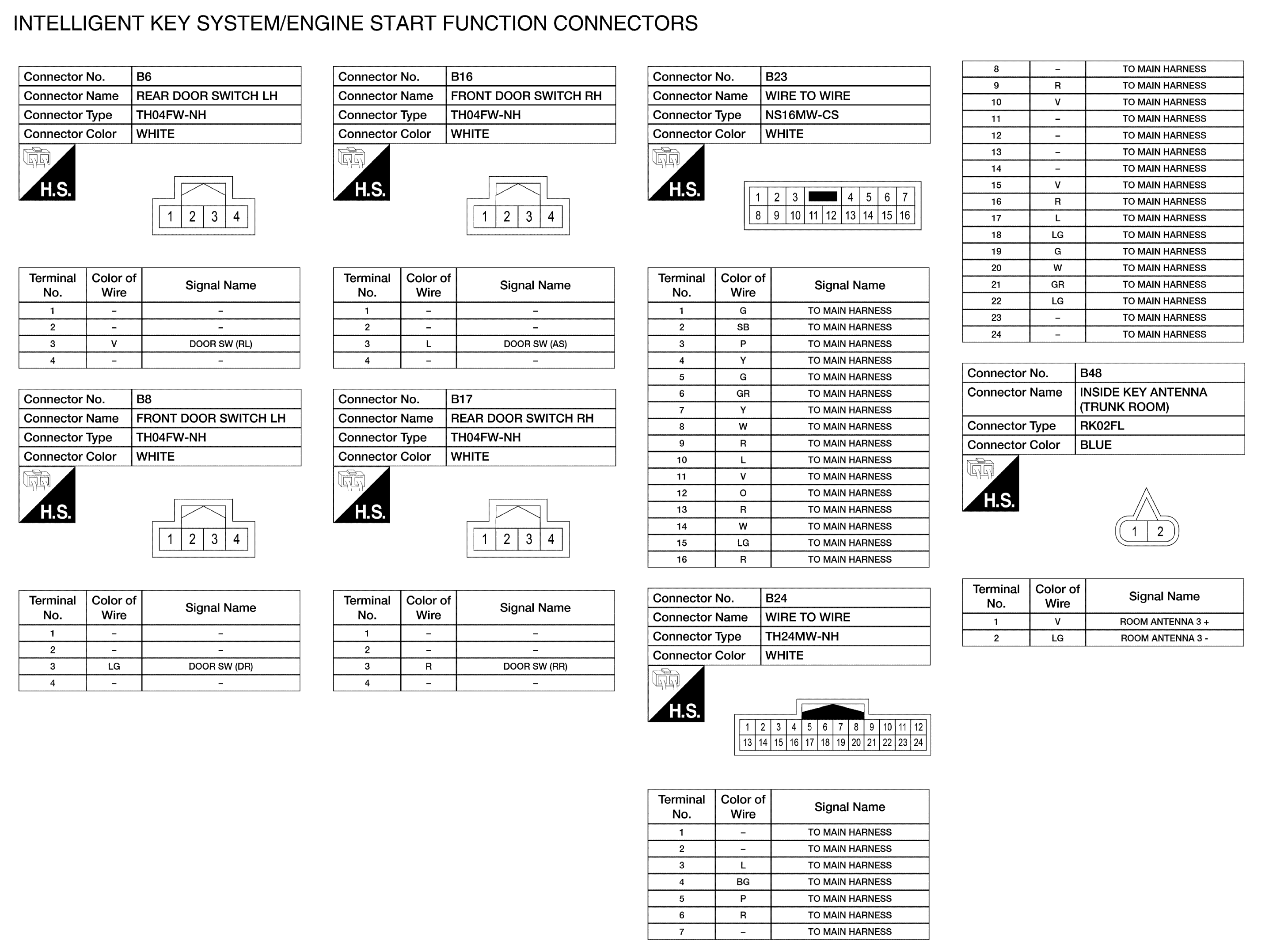

GNSABKIA9399GB-399

Courtesy of NISSAN NORTH AMERICA, INC.

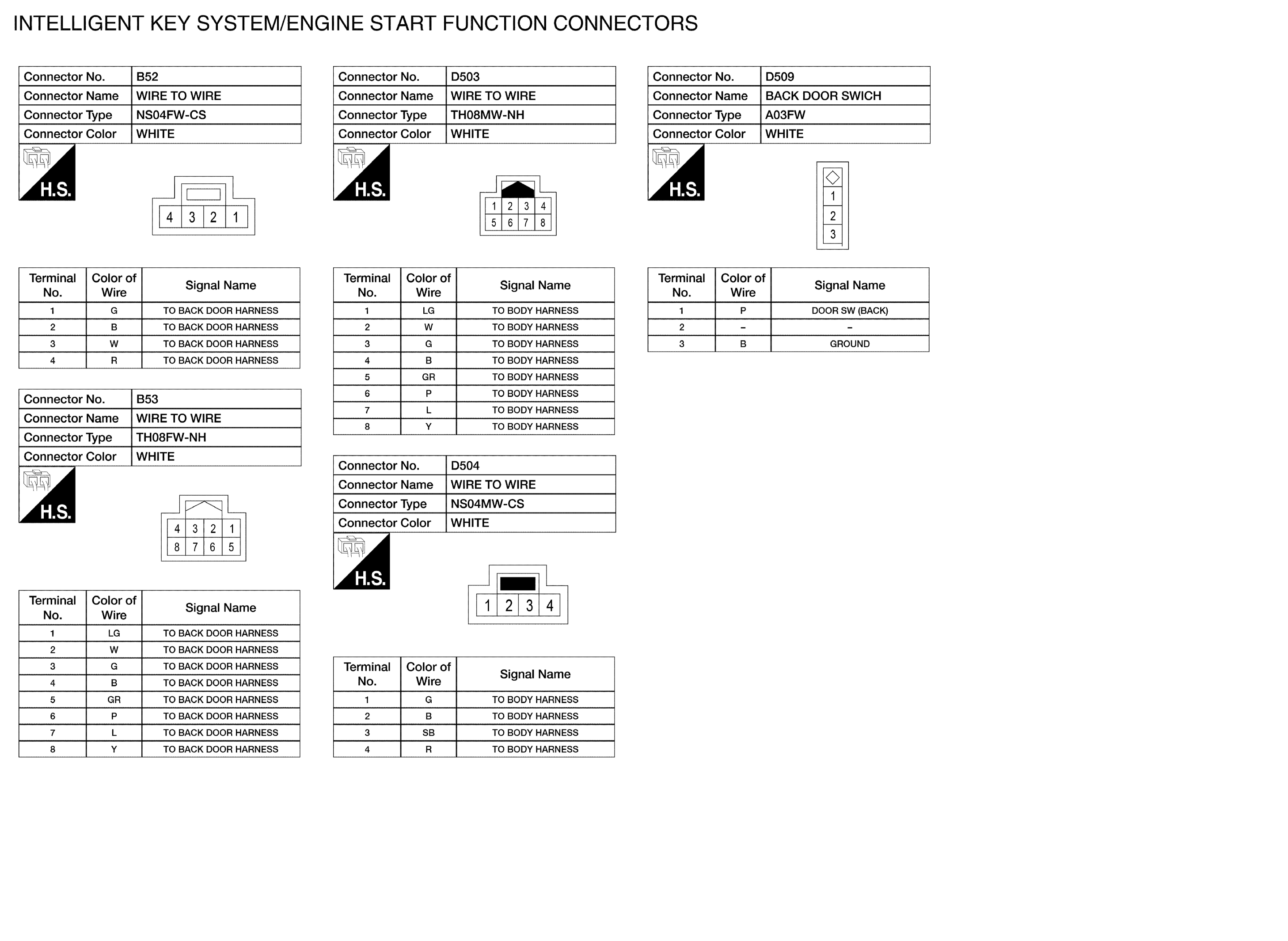

GNSABKIA9400GB-400

Courtesy of NISSAN NORTH AMERICA, INC.

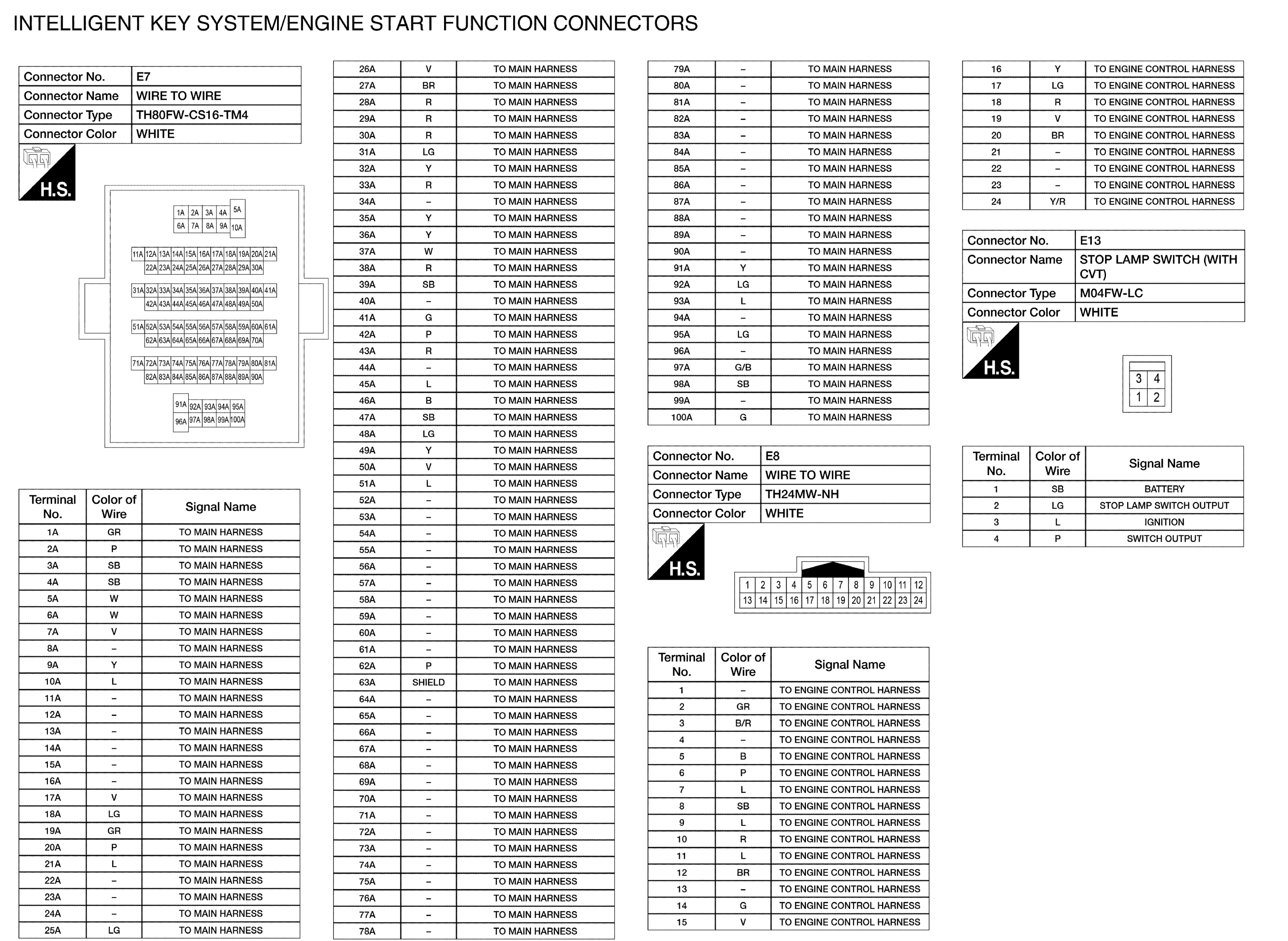

GNSABKIA9401GB-401

Courtesy of NISSAN NORTH AMERICA, INC.

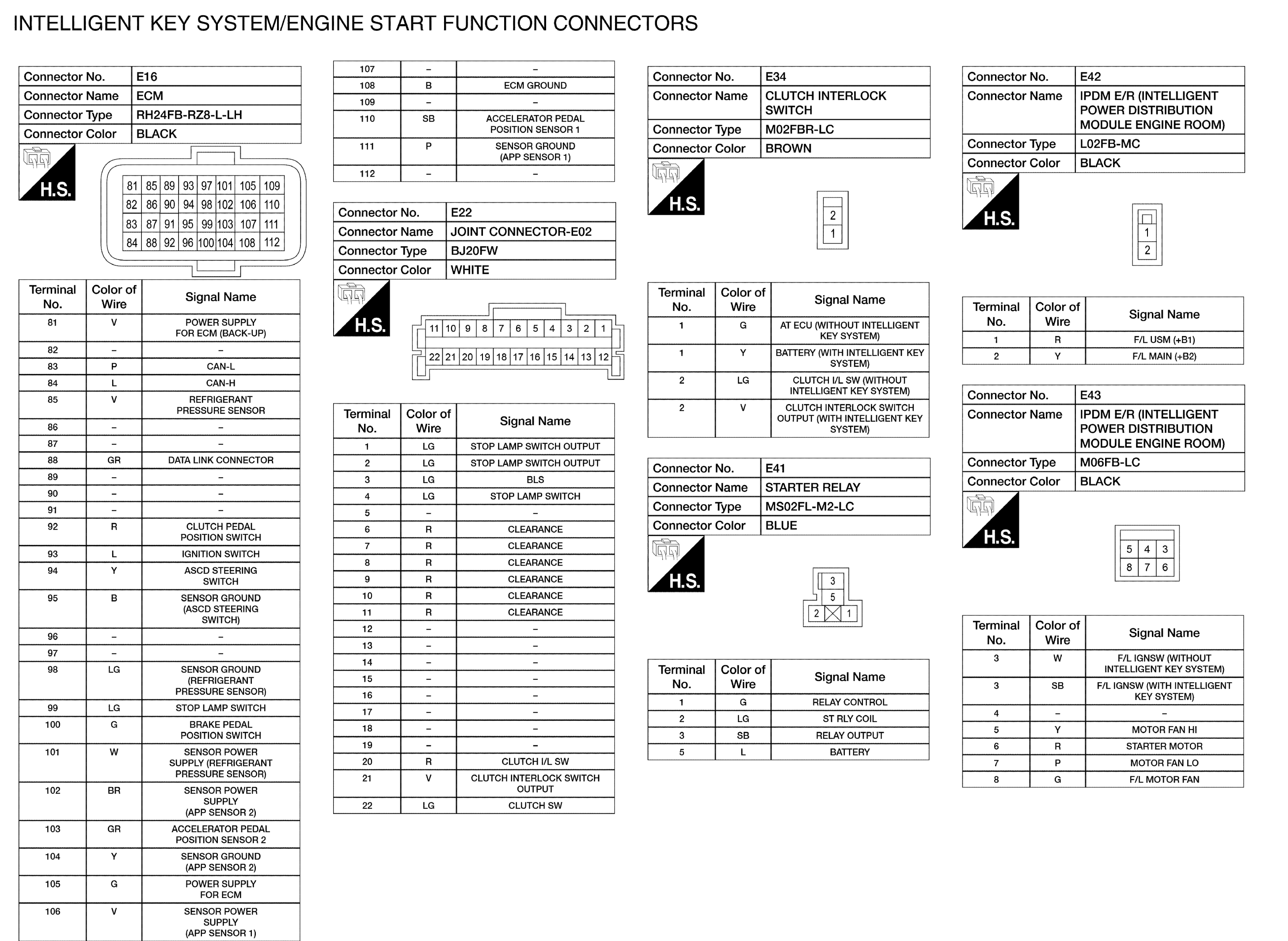

GNSABKIA9402GB-402

Courtesy of NISSAN NORTH AMERICA, INC.

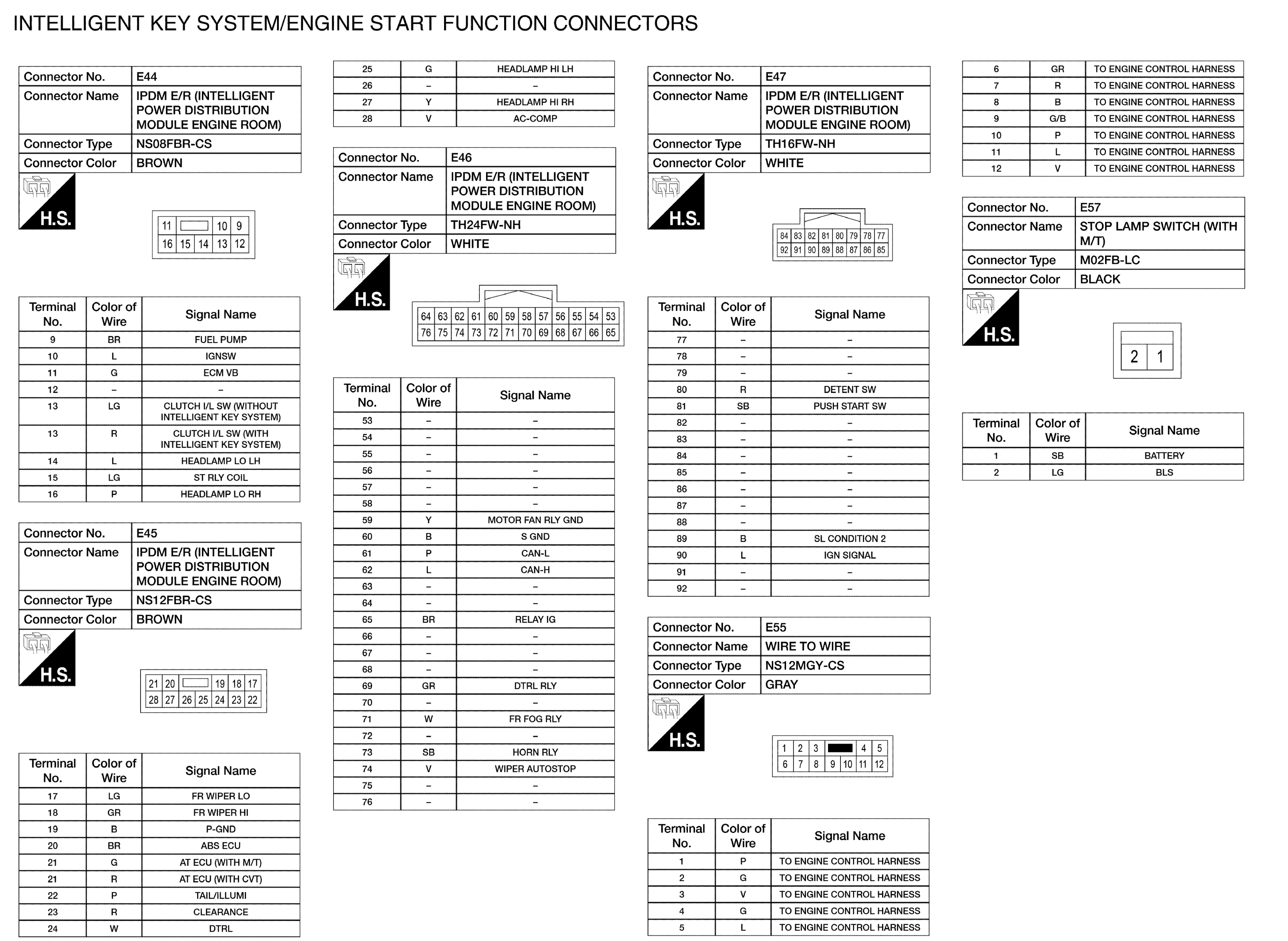

GNSABKIA9403GB-403

Courtesy of NISSAN NORTH AMERICA, INC.

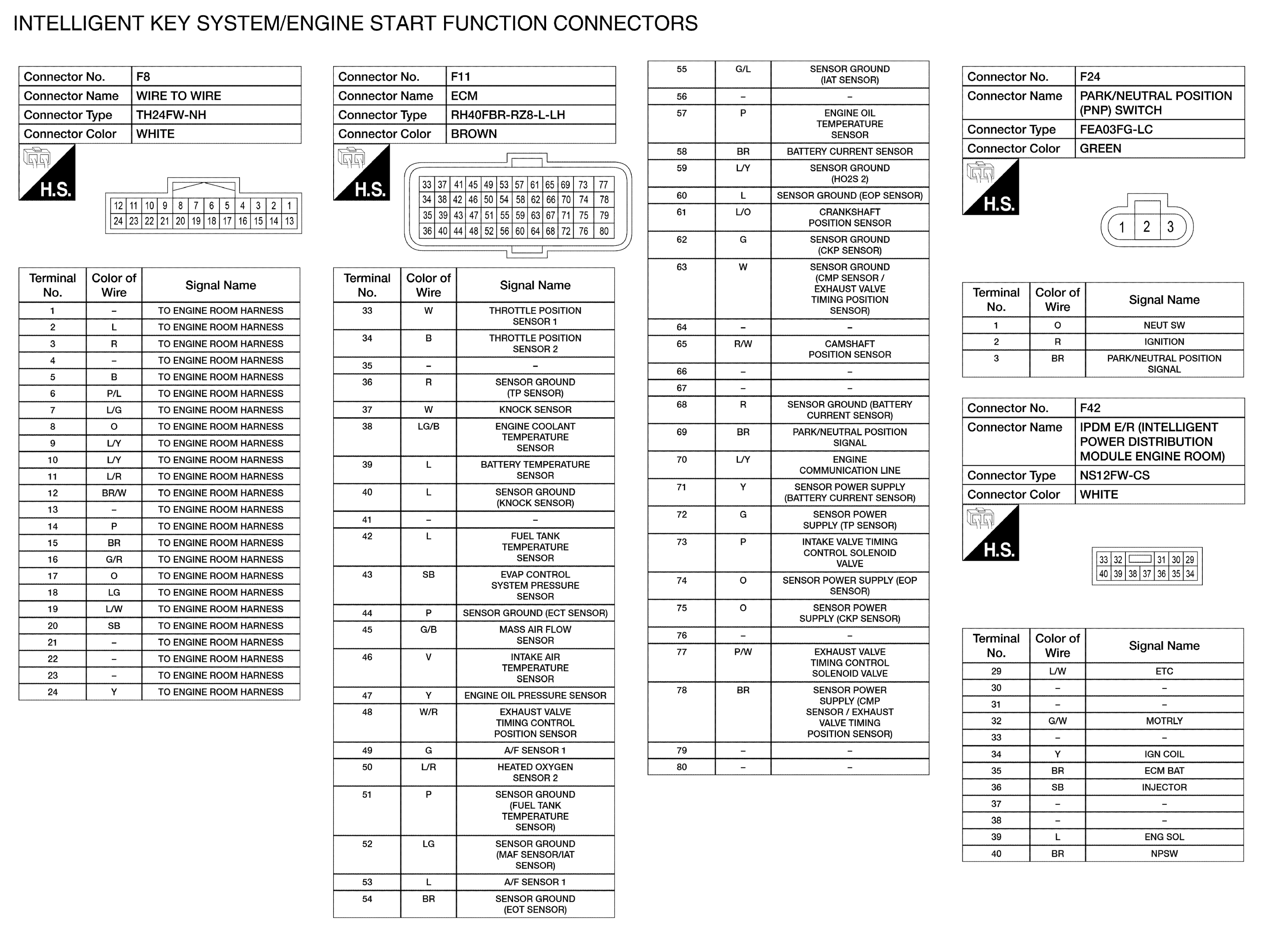

GNSABKIA9404GB-404

Courtesy of NISSAN NORTH AMERICA, INC.

GNSABKIA9405GB-405

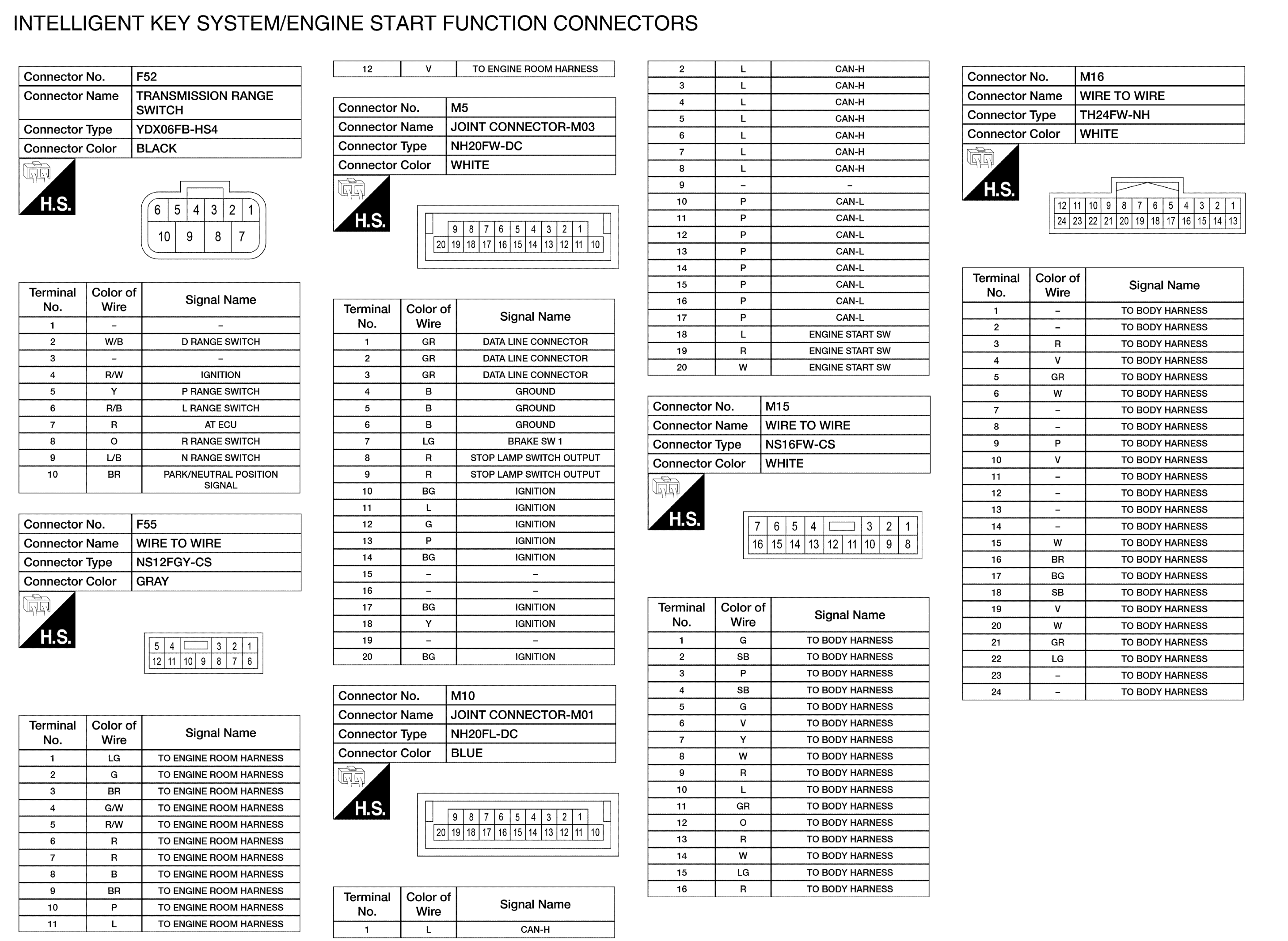

Courtesy of NISSAN NORTH AMERICA, INC.

GNSABKIA9406GB-406

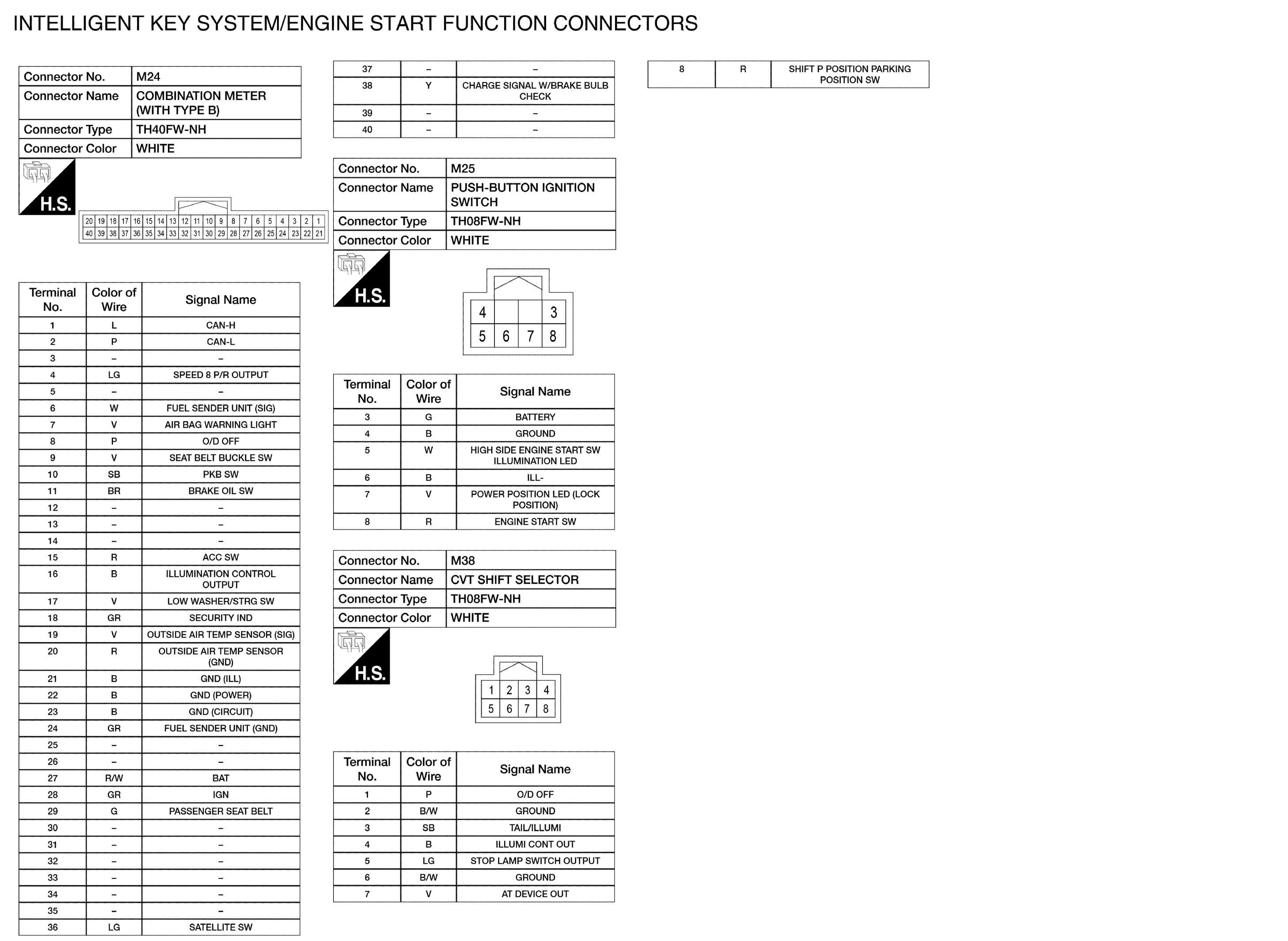

Courtesy of NISSAN NORTH AMERICA, INC.

GNSABKIA9407GB-407

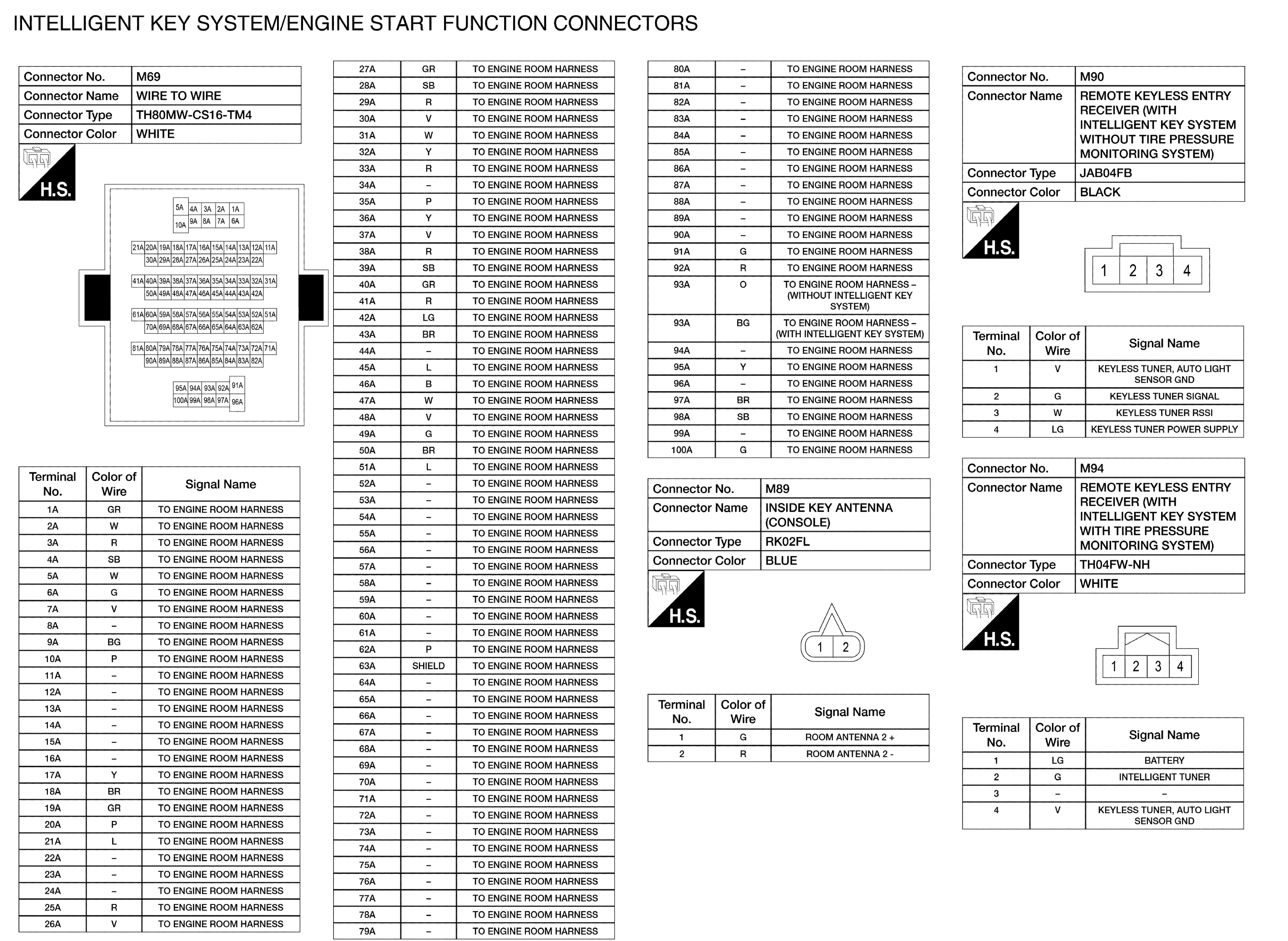

Courtesy of NISSAN NORTH AMERICA, INC.

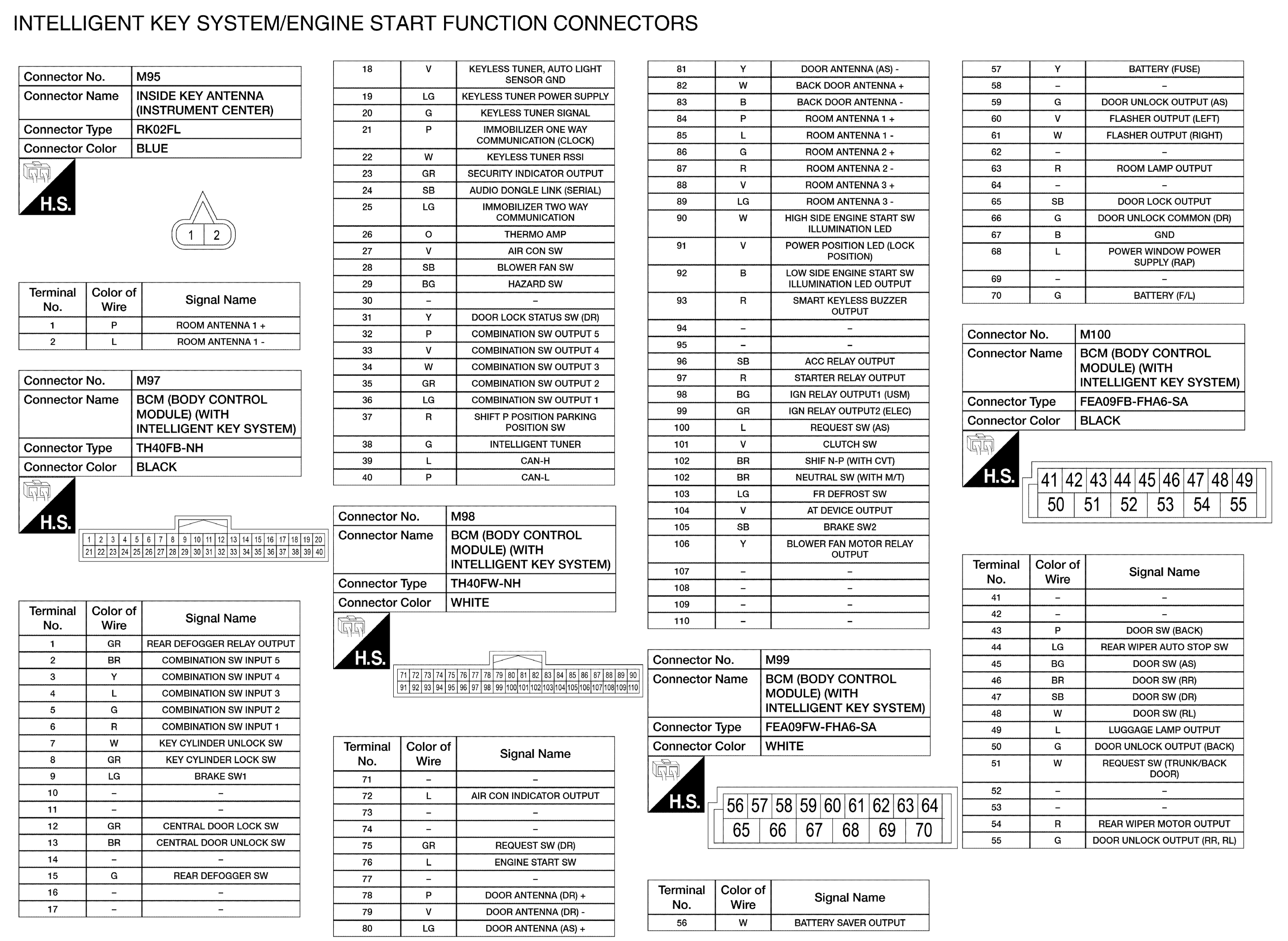

GNSABKIA9408GB-408

Courtesy of NISSAN NORTH AMERICA, INC.
