Exploded View

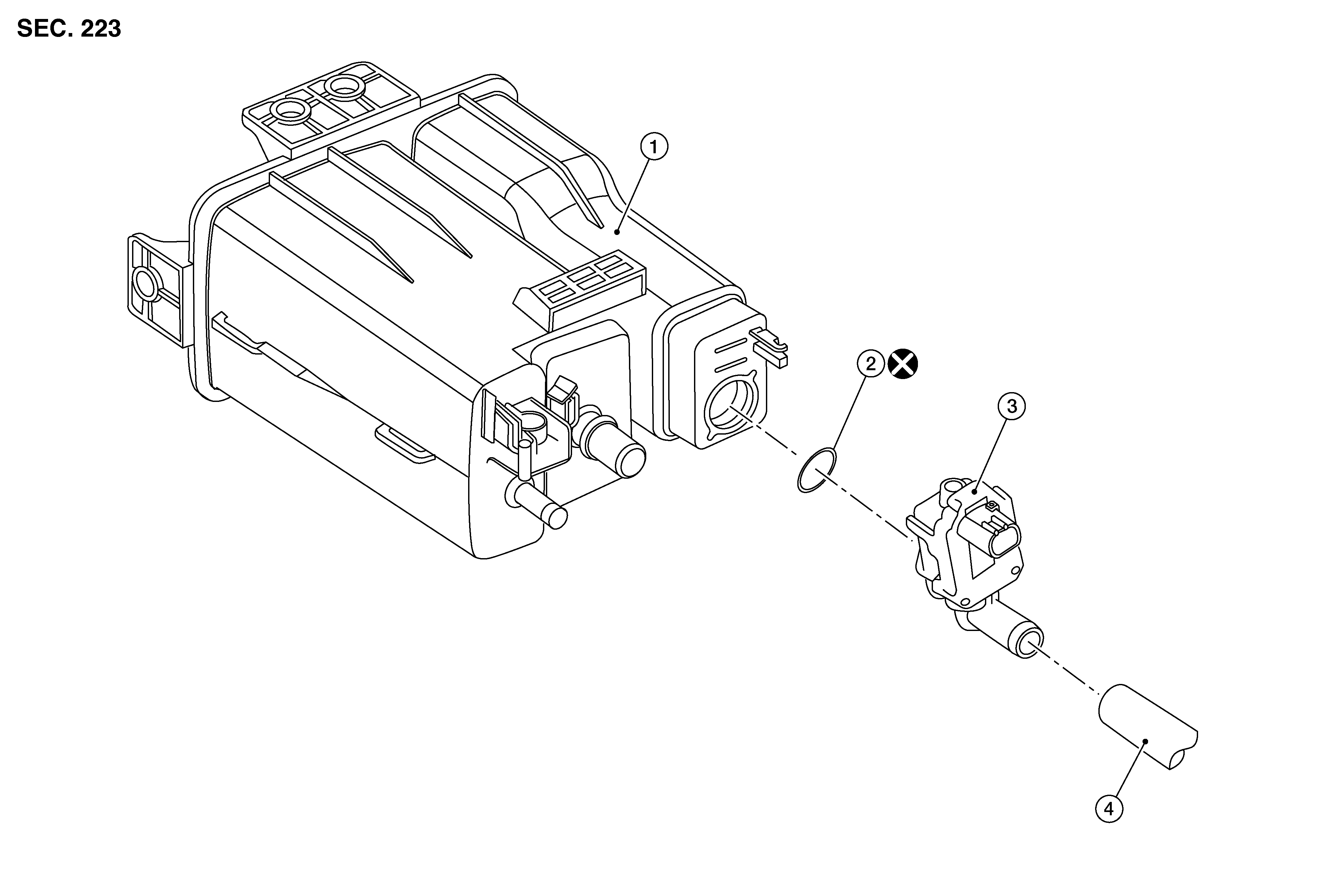

Fig 1: FOR USA AND CANADA

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister	2.	O-ring	3.	EVAP canister vent control valve
4.	EVAP canister vent control valve hose

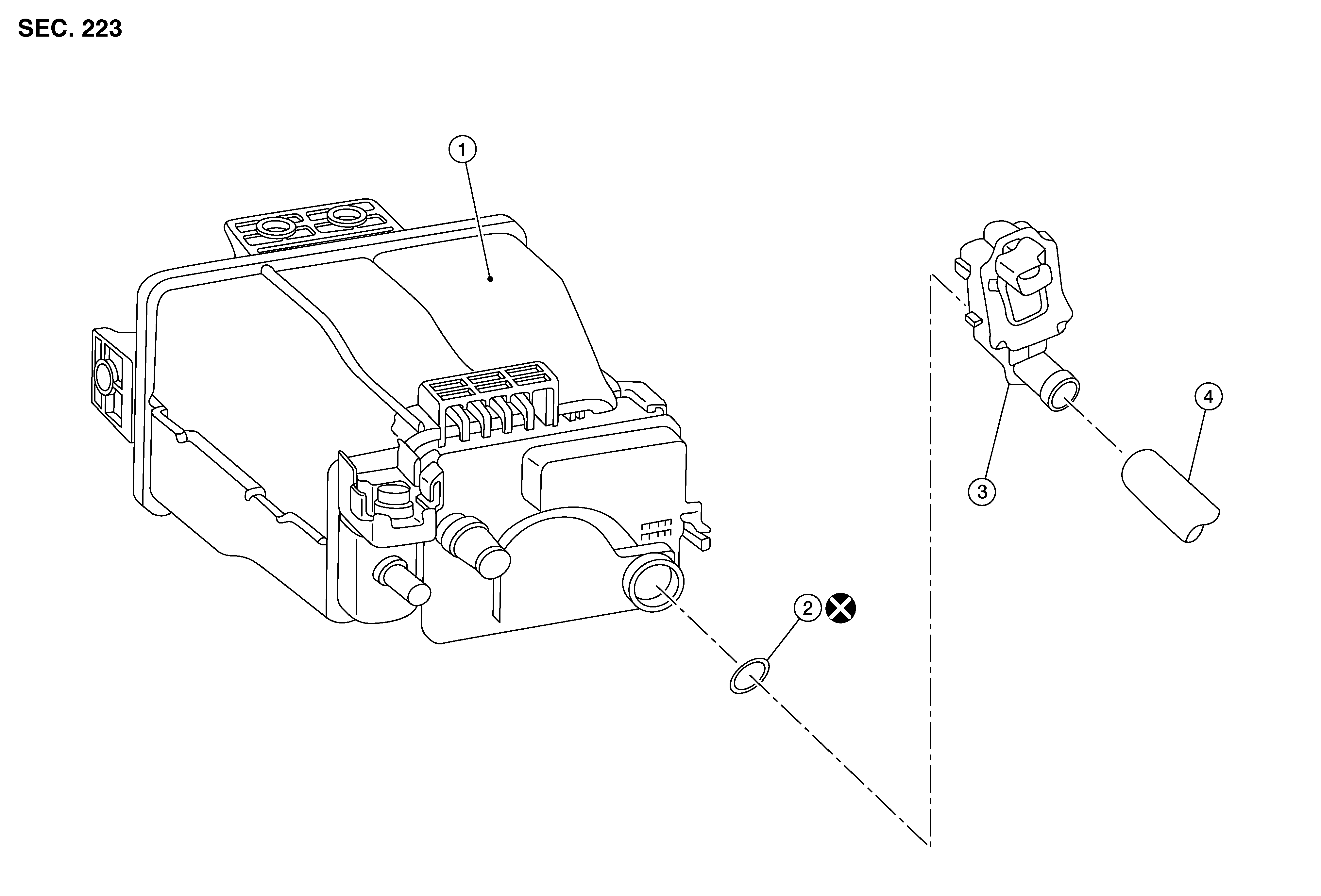

Fig 1: FOR MEXICO

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister	2.	O-ring	3.	EVAP canister vent control valve
4.	EVAP canister vent control valve hose
