Exploded View

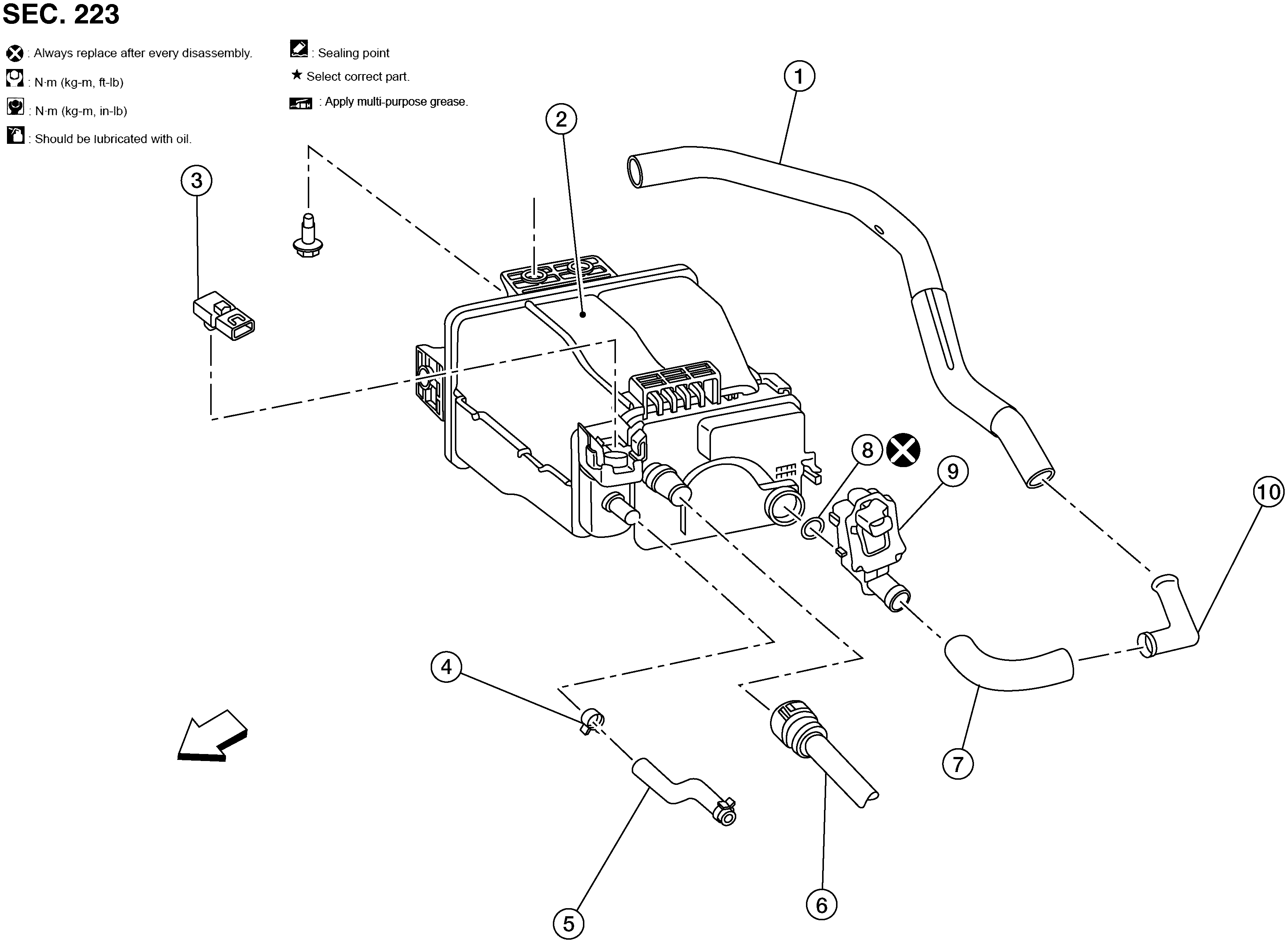

Fig 1: FOR USA AND CANADA

GNSAWBIA0129Z-129

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister vent control valve hose	2.	EVAP canister	3.	EVAP canister control pressure sensor (with O-ring)
4.	Hose clamp	5.	EVAP canister purge hose	6.	EVAP canister vent line
7.	EVAP canister vent control valve hose	8.	O-ring	9.	EVAP canister vent control valve
10.	EVAP canister vent control valve hose connector		Front of vehicle

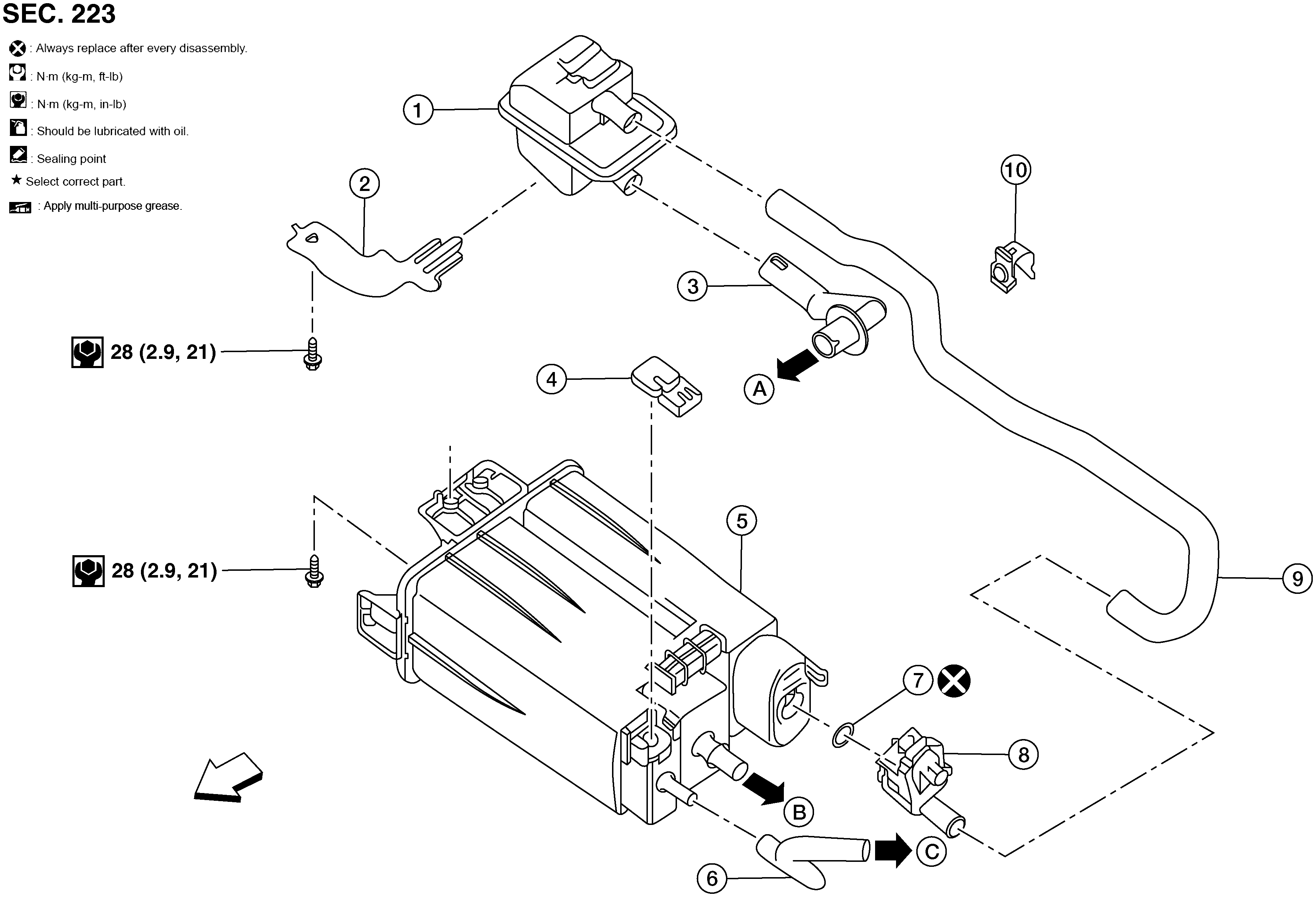

Fig 1: FOR MEXICO

GNSAWBIA0130Z-130

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister filter	2.	EVAP filter bracket	3.	EVAP canister filter vent hose
4.	EVAP control system pressure sensor (with O-ring)	5.	EVAP canister	6.	EVAP canister purge hose
7.	O-ring	8.	EVAP canister vent control valve	9.	EVAP canister control valve hose
10.	Clip	A.	To vehicle body	B.	To fuel tank Exploded View.
C.	To EVAP tube Exploded view.		Front
