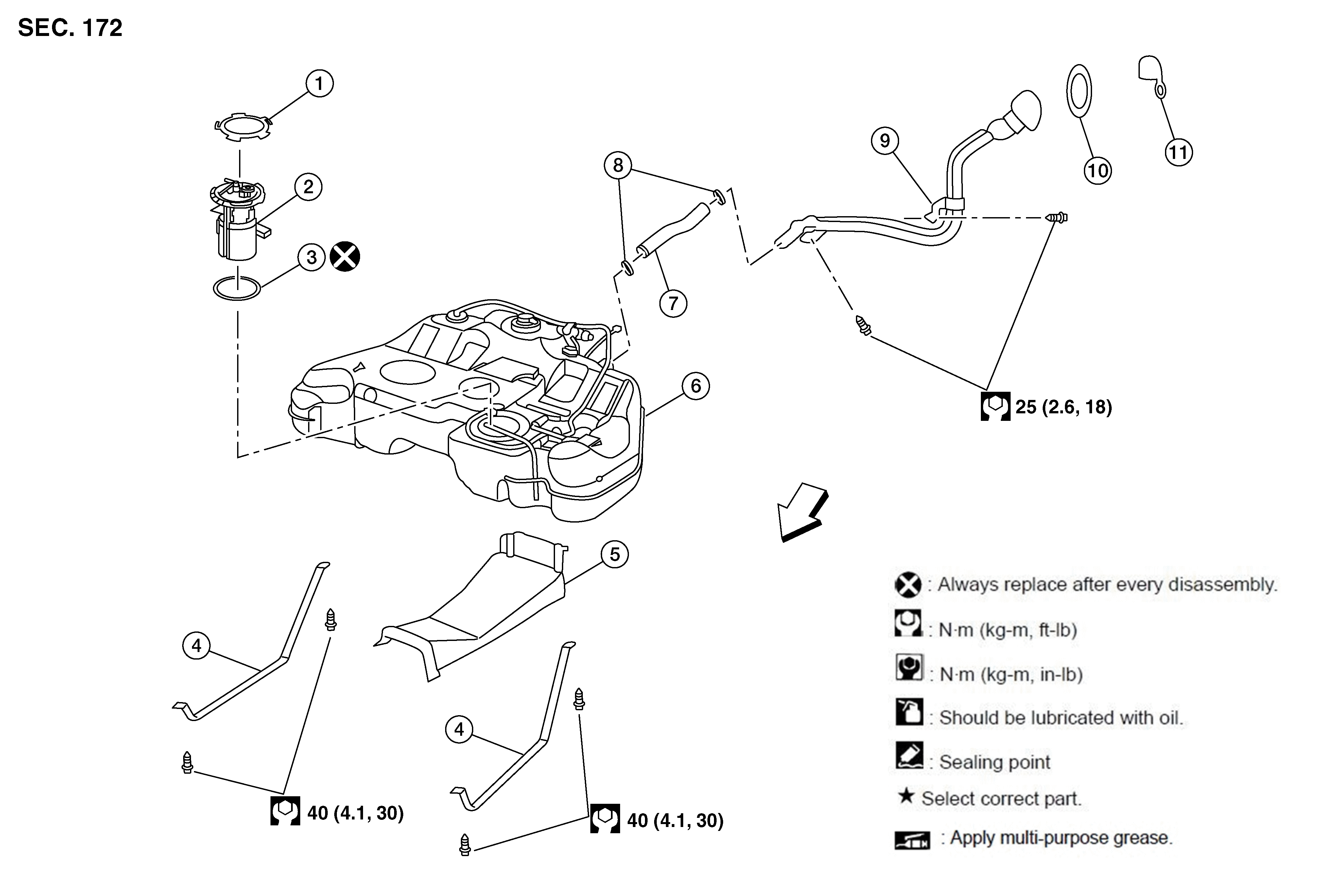

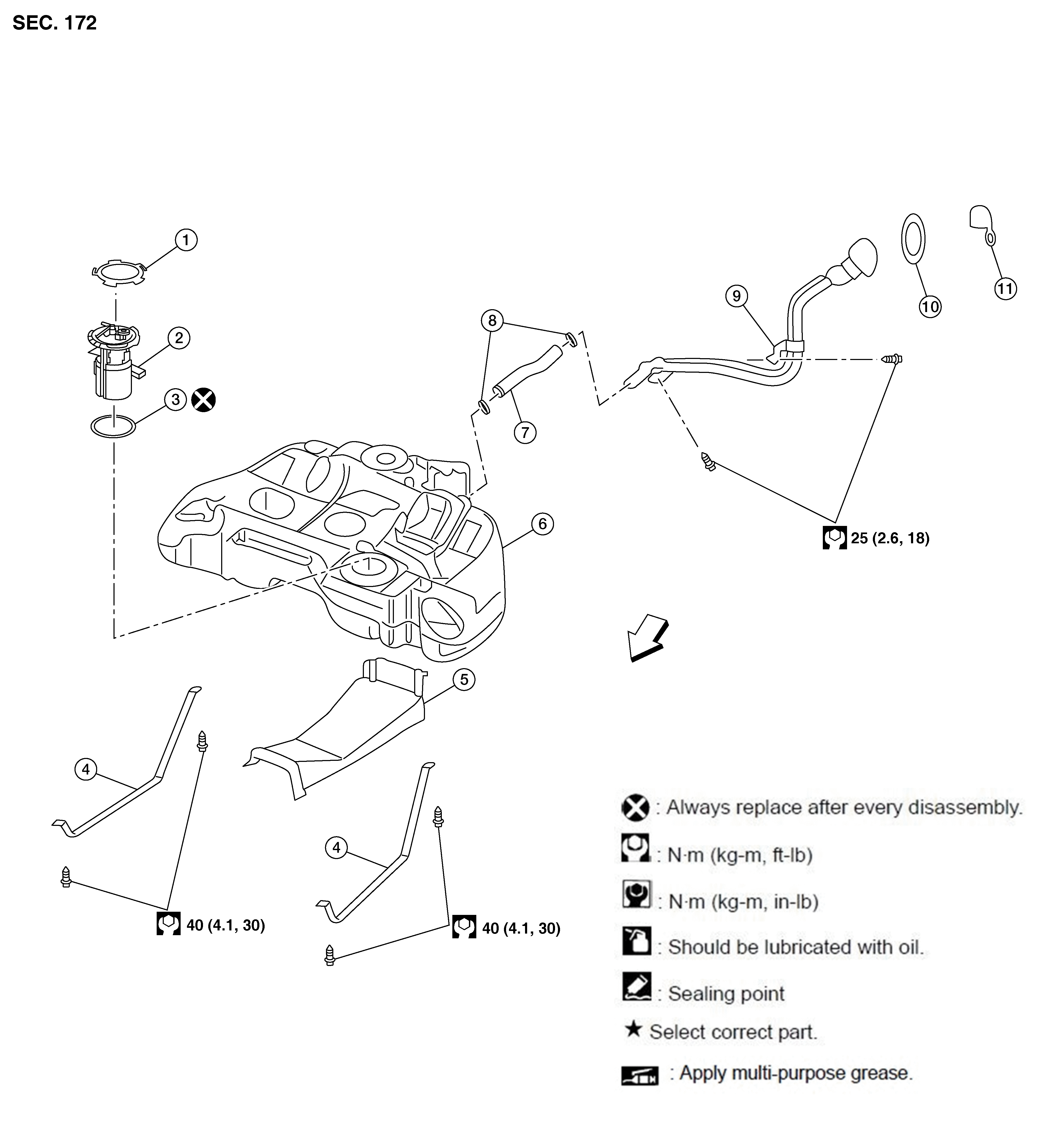

Exploded View
|
1. |
Lock ring |
2. |
Fuel level sensor unit, fuel filter, and fuel pump assembly |
3. |
O-ring |
|
4. |
Fuel tank mounting straps |
5. |
Fuel tank protector |
6. |
Fuel tank |
|
7. |
Fuel filler hose |
8. |
Clamp |
9. |
Fuel filler hose |
|
10. |
Grommet |
11. |
Fuel filler cap |
|
Front |
