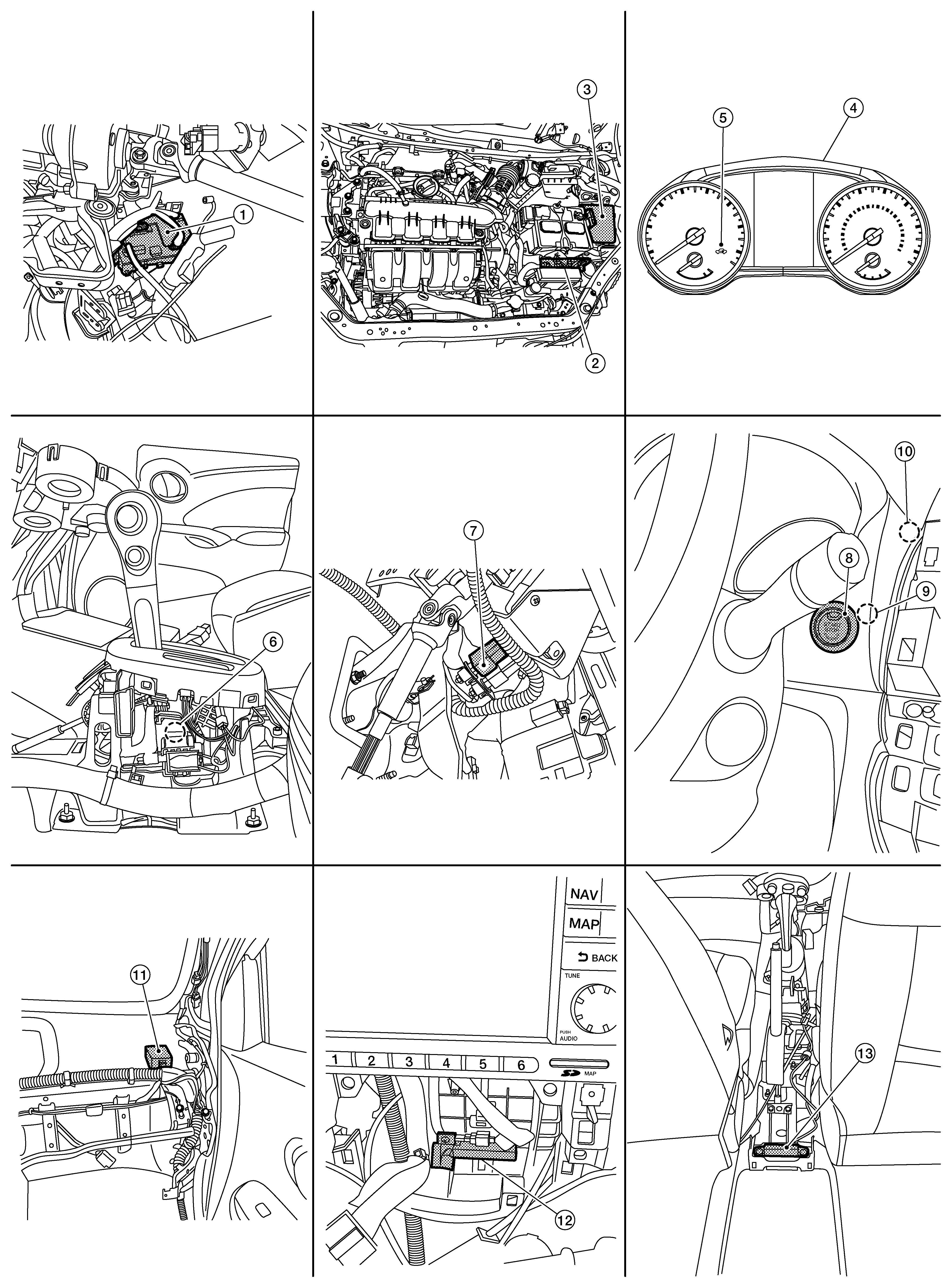

Component Parts Location

1.

BCM (view with instrument panel removed)

2.

ECM

3.

IPDM E/R

4.

Combination meter

5.

Security indicator lamp

6.

CVT shift selector (park position switch) (view with center console removed)

7.

Stop lamp switch

8.

Push-button ignition switch

9.

NATS antenna amp.

10.

Dongle unit (Canada only)

11.

Remote keyless entry receiver (view with instrument panel removed)

12.

Inside key antenna (instrument center)

13.

Inside key antenna (console) (view with center console removed)

14.

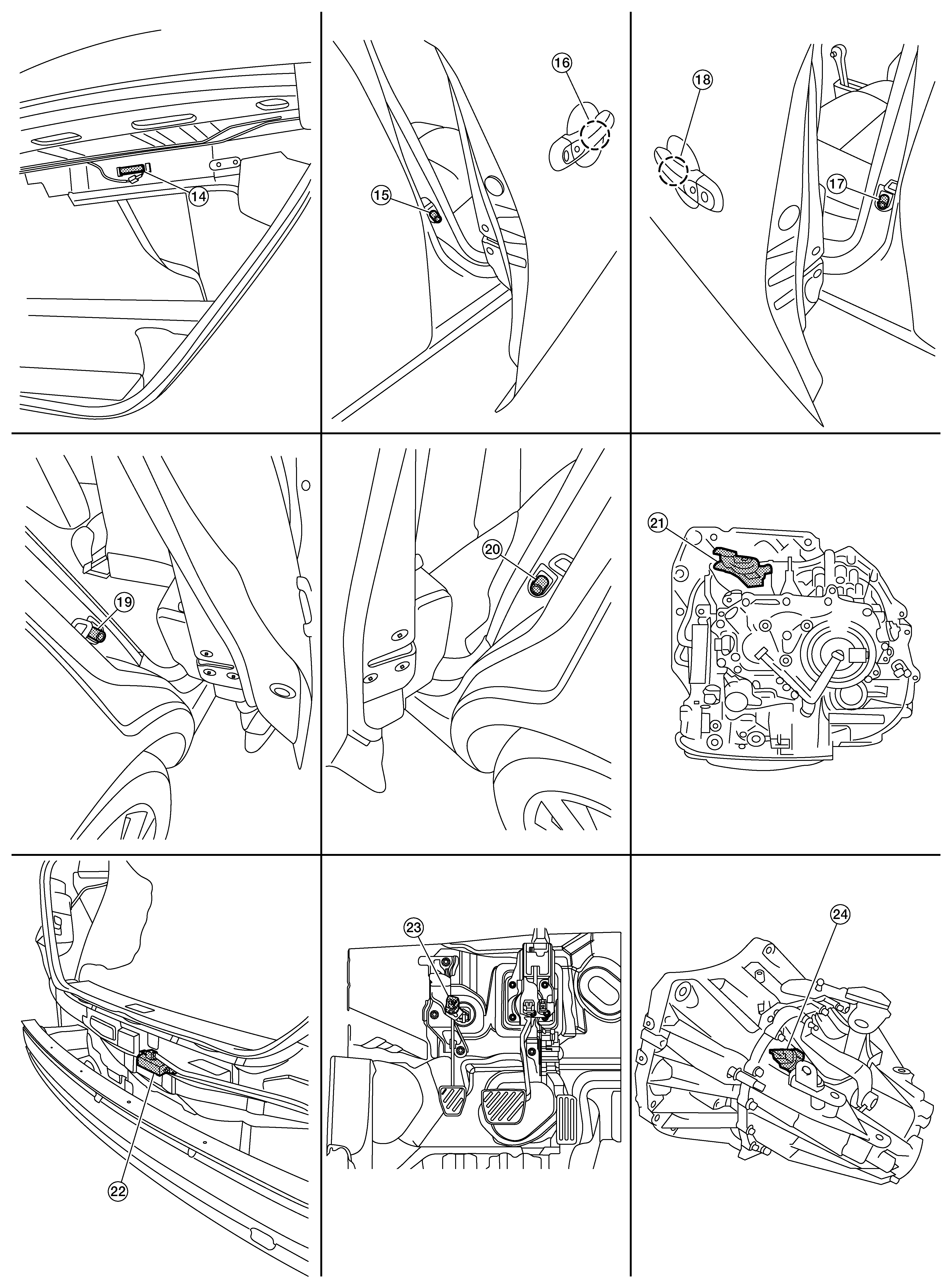

Inside key antenna (trunk room)

15.

Front door switch RH

16.

Outside key antenna (passenger side)

17.

Front door switch LH

18.

Outside key antenna (driver side)

19.

Rear door switch RH

20.

Rear door switch LH

21.

Transmission range switch (CVT)

22.

Outside key antenna (rear bumper)

23.

Clutch interlock switch (M/T)

24.

Park/neutral position (PNP) switch (neutral switch) (M/T)
