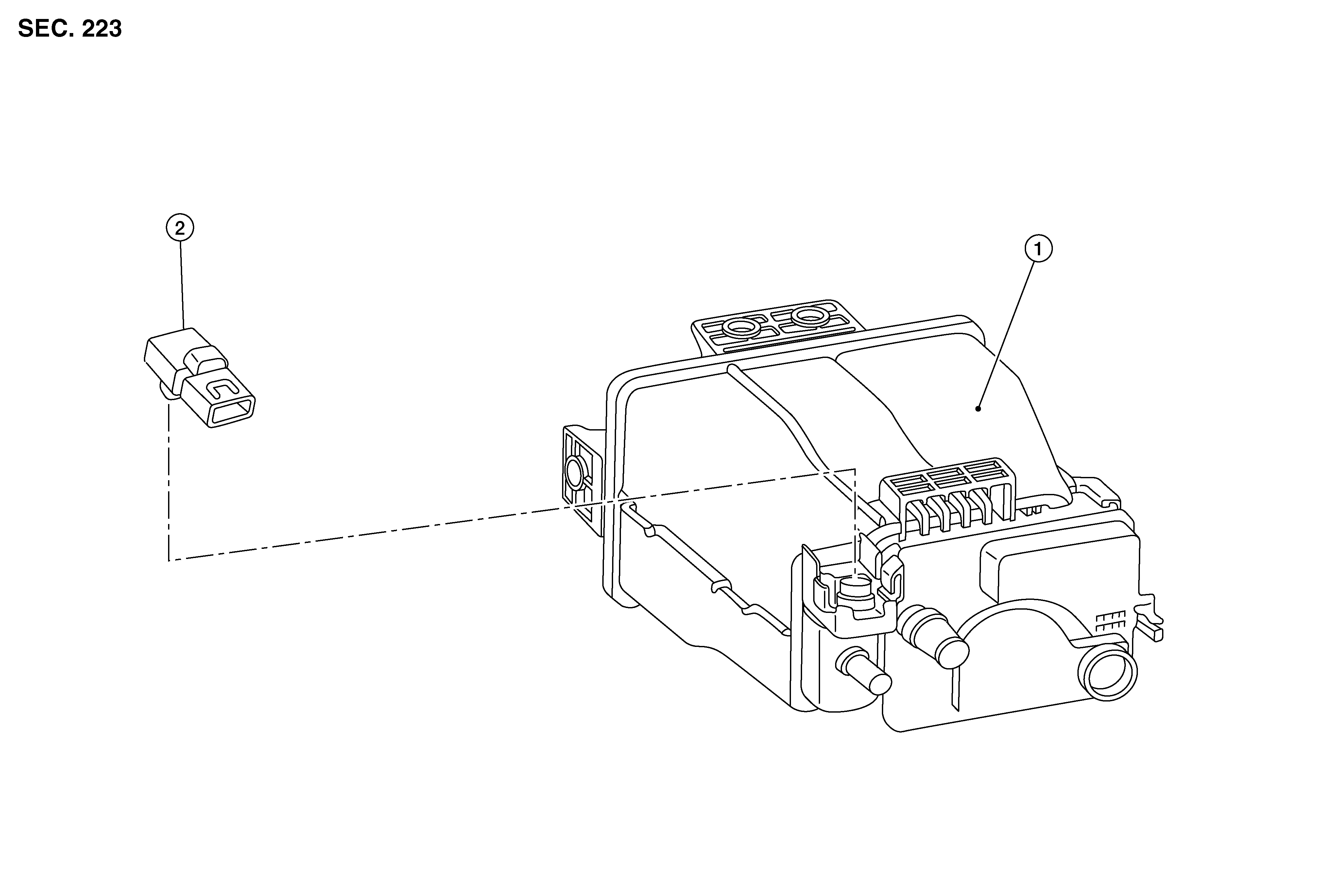

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
EVAP Canister
2.
EVAP Canister Control Pressure Sensor (With O-Ring)
