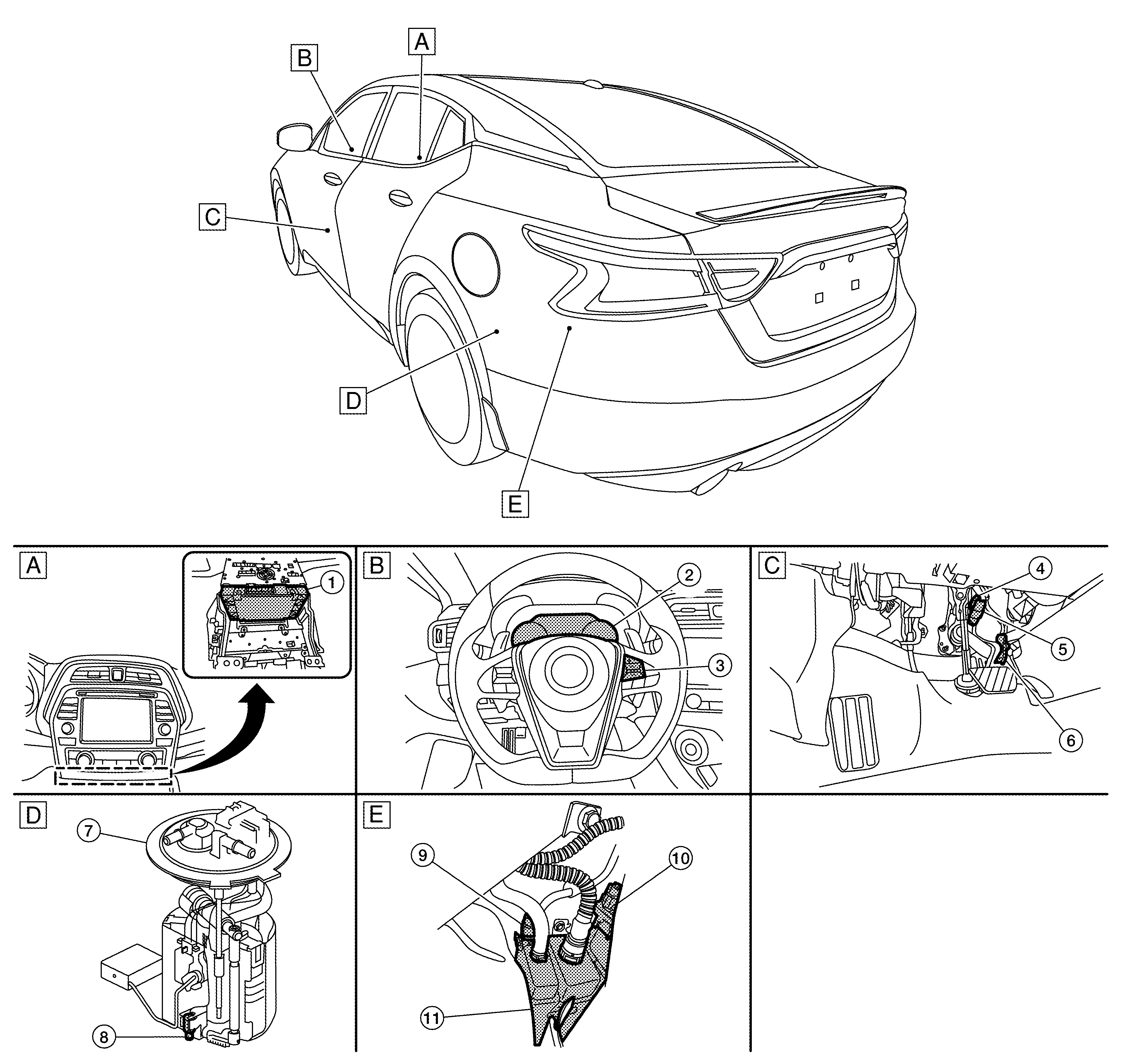

Components Location: Body
|
|
Center stack |
|
Steering column area |
|
Pedal periphery |
|
|
Inside fuel tank |
|
Rear of fuel tank area |
|
No. |
Component |
Function |
|
|
AC auto amp |
Mainly transmits the following signal to ECM via CAN communication.
Refer to Components Location for detailed installation location. |
|
|
Combination meter |
Mainly transmits the following signal to ECM via CAN communication.
Mainly receives the following signal from ECM via CAN communication.
Refer to Components Location for detailed installation location. |
|
|
ASCD steering switch |
|
|
|
Stop lamp switch |
|
|
|
Brake pedal position switch |
|
|
|
Accelerator pedal position sensor |
|
|
|
Fuel level sensor unit and fuel pump (with fuel tank temperature sensor) |
Fuel Level Sensor Unit and Fuel Pump (With Fuel Tank Temperature Sensor) Refer to Exploded View for detailed installation location. |
|
|
Fuel tank temperature sensor |
|
|
|
EVAP control system pressure sensor |
|
|
|
EVAP canister vent control valve |
|
|
|
EVAP canister |
