Engine Room

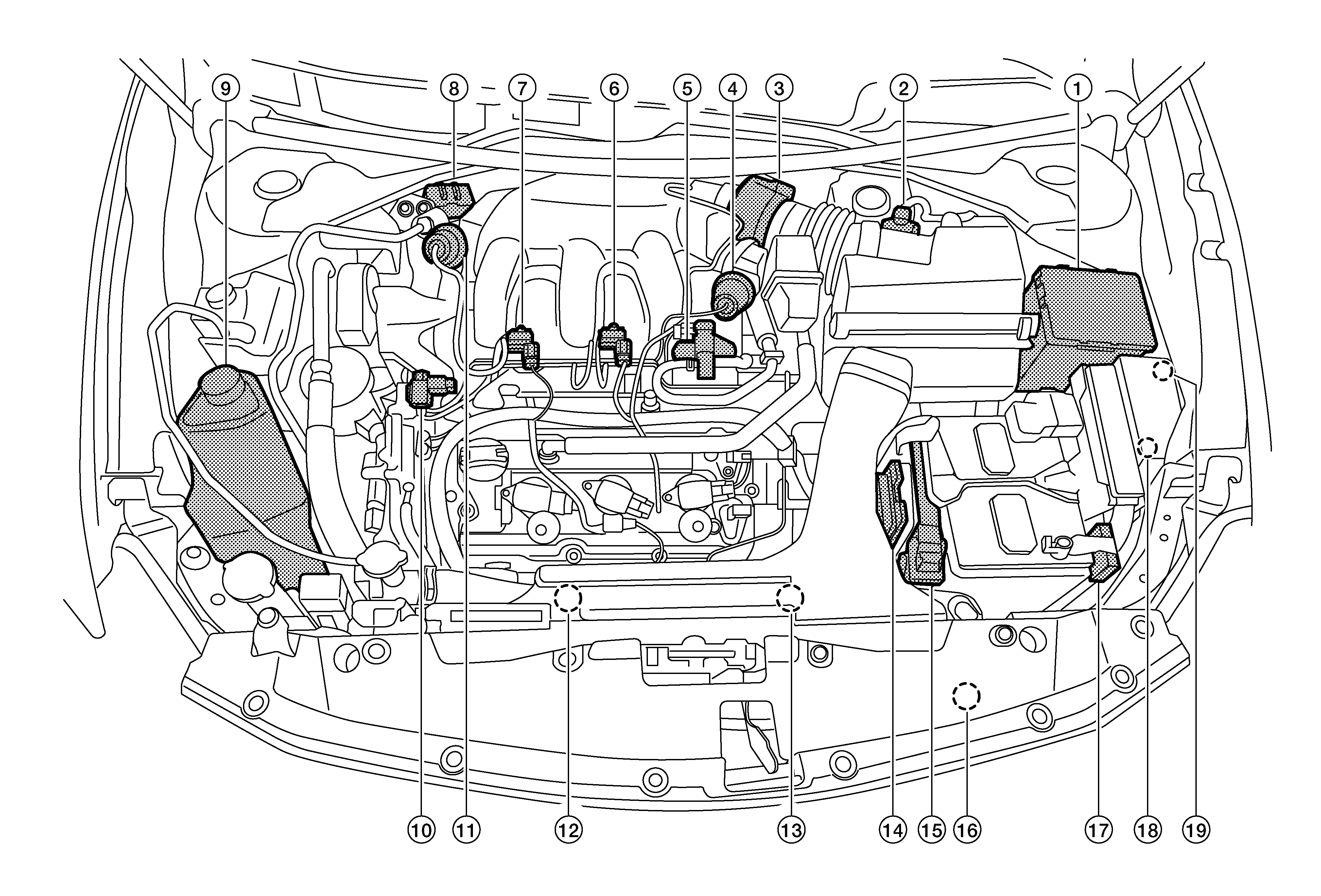

GNSALBIA1329Z-329Courtesy of NISSAN NORTH AMERICA, INC.

No.

Component

Function

SYMBOL

IPDM E/R

  • IPDM E/R control the internal relays and the actuators. Refer to System Description .
  • When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. Refer to Fail Safe .

SYMBOL

Mass air flow sensor (with intake air temperature sensor)

Mass Air Flow Sensor (With Intake Air Temperature Sensor)

SYMBOL

Electric throttle control actuator

Electric Throttle Control Actuator

SYMBOL

Power valve actuator 2

Power Valve Actuator 1 and 2

SYMBOL

EVAP canister purge volume control solenoid valve

EVAP Canister Purge Volume Control Solenoid Valve

SYMBOL

VIAS control solenoid valve 2

VIAS Control Solenoid Valve 1 and 2

SYMBOL

VIAS control solenoid valve 1

VIAS Control Solenoid Valve 1 and 2

SYMBOL

ABS actuator and electric unit (control unit)

Mainly transmits the following signal to ECM via CAN communication.

  • VDC operation signal
  • TCS operation signal

Refer to Components Location (without ICC), Components Location (with ICC) for detailed installation location.

SYMBOL

Power steering oil pump assembly (with power steering control module)

Mainly transmits the following signal to ECM via CAN communication.

  • EPS operation signal

Refer to Components Location for detailed installation location.

SYMBOL

Electronic controlled engine mount control solenoid valve

Electronic Controlled Engine Mount

SYMBOL

Power valve actuator 1

Power Valve Actuator 1 and 2

SYMBOL

Cooling fan motor-2

Cooling Fan Motor

SYMBOL

Cooling fan motor-1

Cooling Fan Motor

SYMBOL

TCM

Mainly transmits the following signal to ECM via CAN communication.

  • Self diagnosis signal
  • Shift position signal
  • Output shaft revolution signal
  • Drive mode signal

Refer to Components Location for detailed installation location.

SYMBOL

ECM

ECM

SYMBOL

Refrigerant pressure sensor

Refrigerant Pressure Sensor

Refer to Components Location for detailed installation location.

SYMBOL

Battery current sensor (with battery temperature sensor)

Battery Current Sensor (With Battery Temperature Sensor)

SYMBOL

Cooling fan relay-2

--

SYMBOL

Cooling fan relay-3
