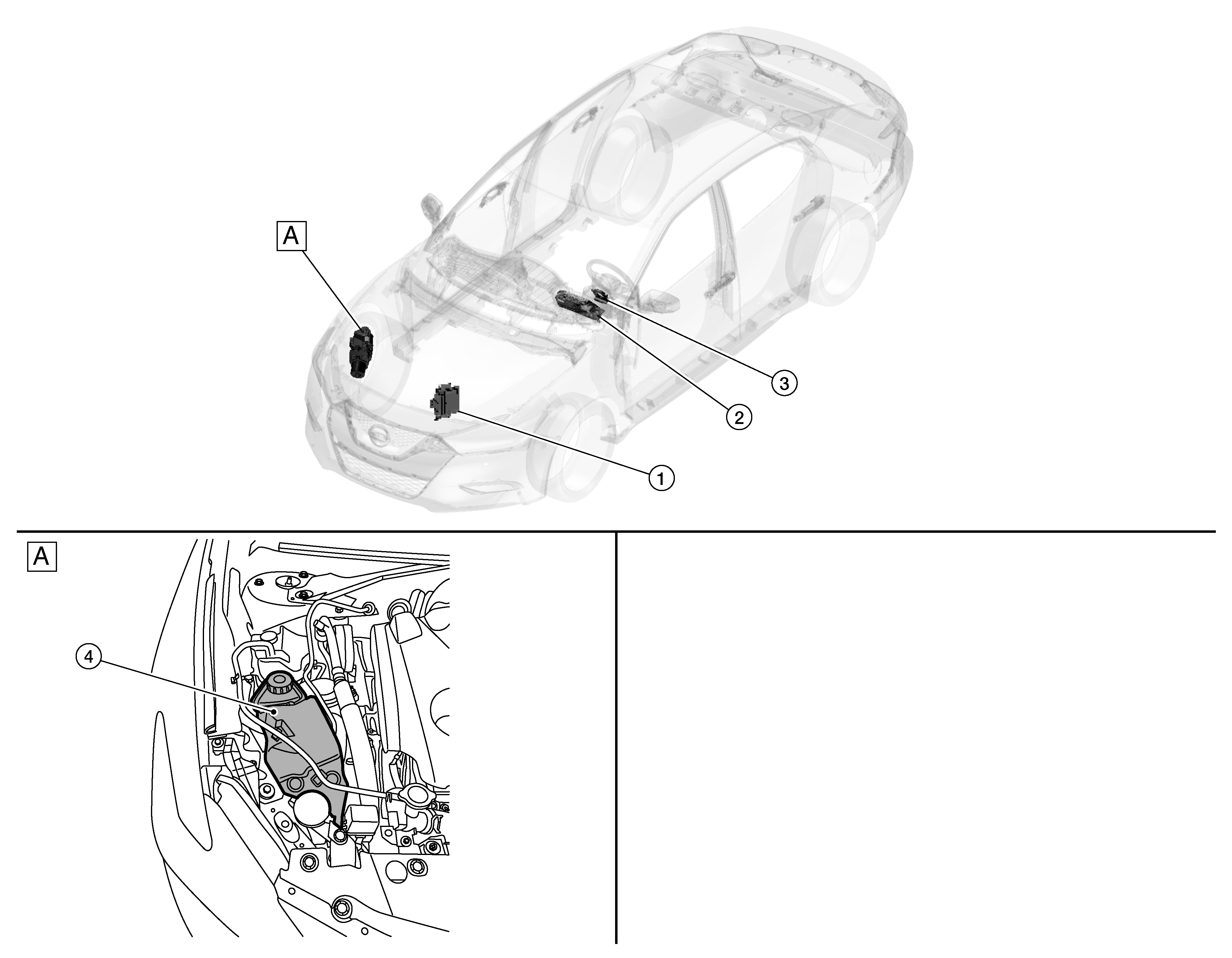

Component Location

A.

Engine room right side

No.

Component

Function

1.

ECM

Transmits mainly the following signal to power steering control module via CAN communication:

• Engine status signal
  • Refer to Component Location for detailed installation location.

2.

Combination Meter

Transmits mainly the following signal to power steering control module via CAN communication:

• Vehicle speed signal
  • Refer to Component Location for detailed installation location.

The hydraulic pump electric power steering system warning lamp turns ON according to the signal received by CAN communication from the power steering control module.

3.

Steering Angle Sensor

Transmits mainly the following signal to power steering control module via CAN communication:

• Steering Angle Sensor signal
  • Refer to Component Location (Without ICC) or Component Location (With ICC) for detailed installation location

4.

Power Steering Oil Pump Assembly

Reservoir Tank

Power Steering Oil Pump Assembly

Power Steering Oil Pump

Power Steering Motor

Power Steering Control Module
