Exploded View

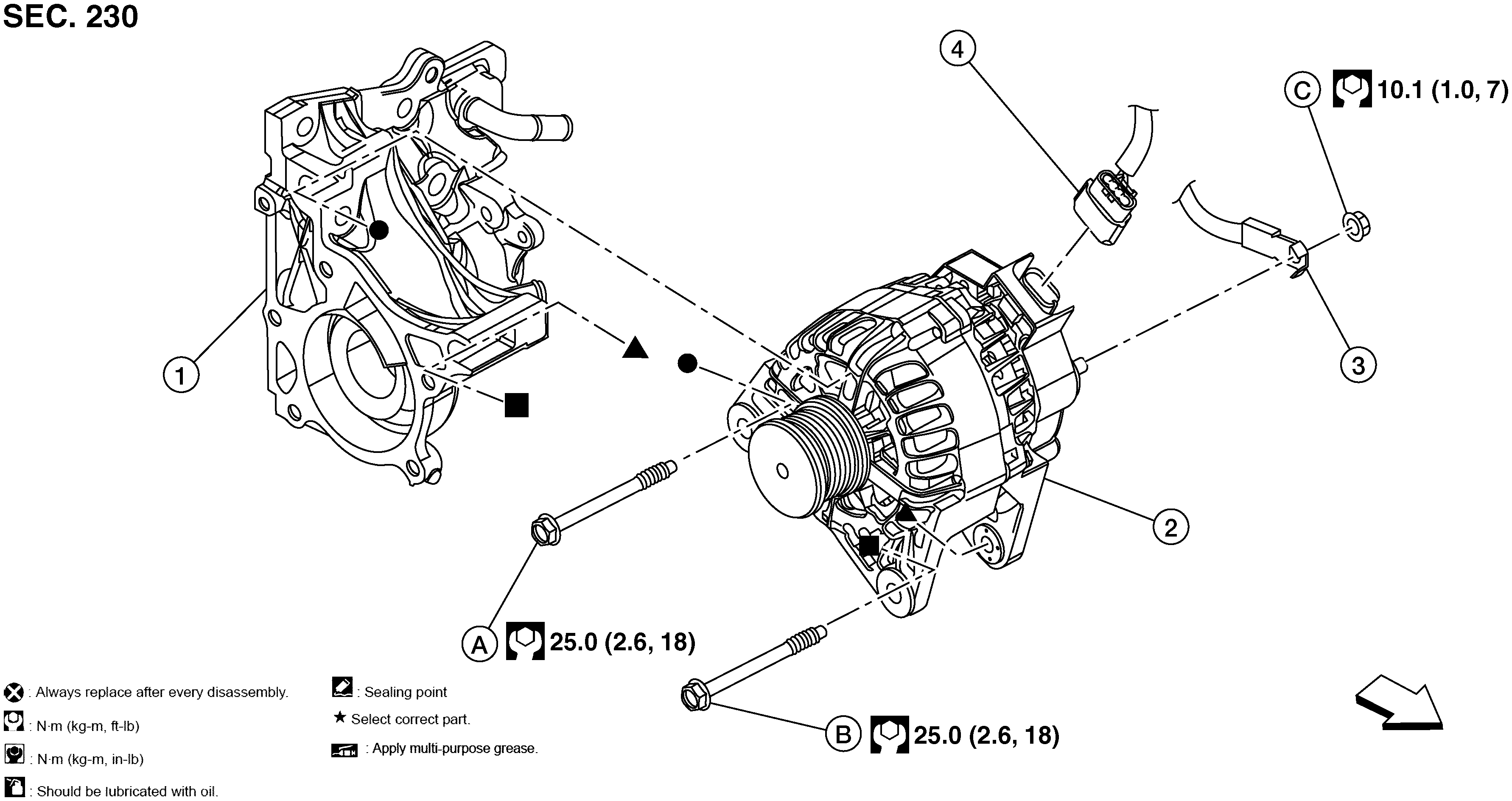

Fig 1: Generator Replacement Components With Torque Specifications

GNSAWMIA1904Z-904

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Thermostat housing	2.	Generator	3.	"B" terminal harness
4.	Harness connector
A.	Generator bolt (upper)	B.	Generator bolt (lower)	C.	"B" terminal nut
	Front

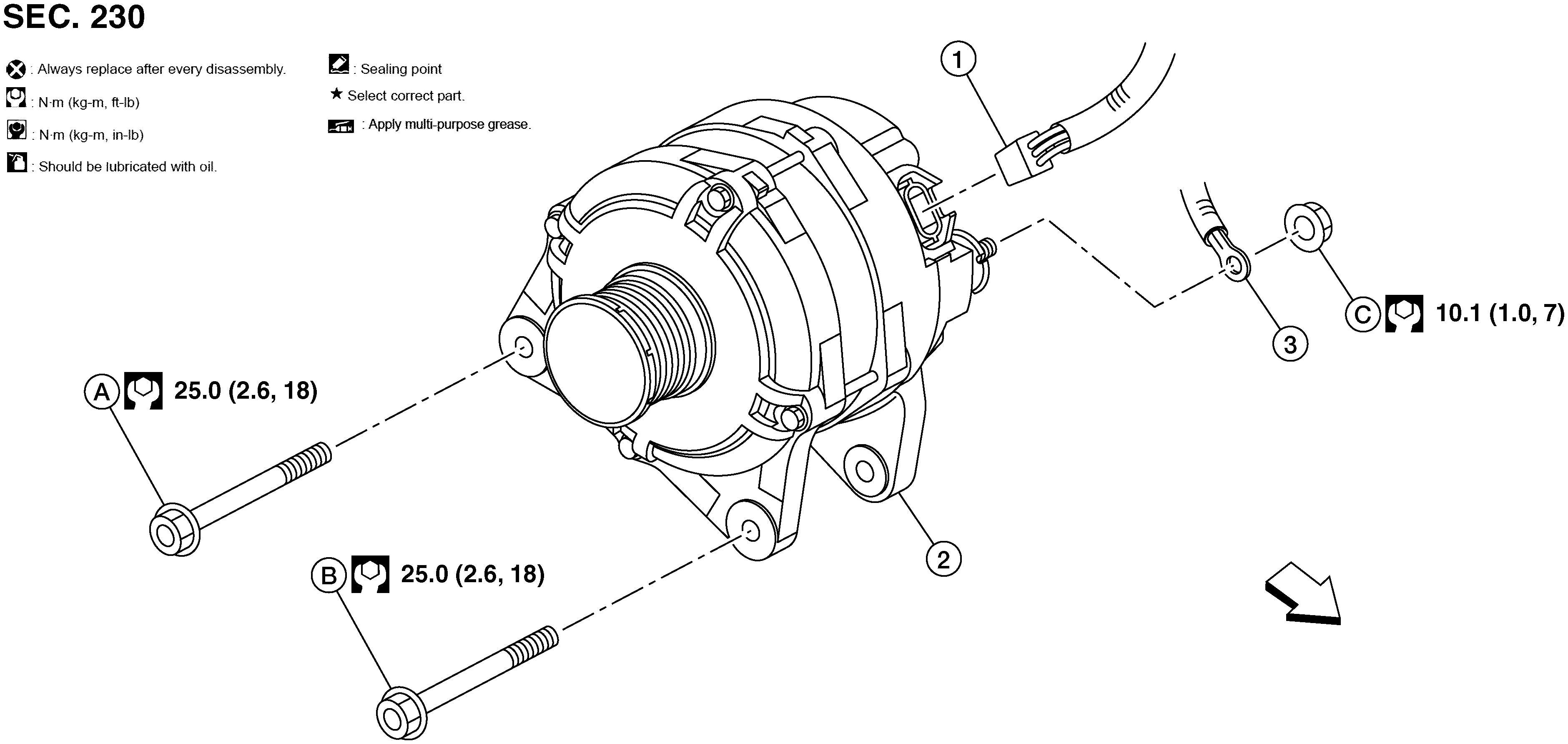

Fig 1: Alternator And Harness Replacement Components With Torque Specifications

GNSAWMIA1905Z-905

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Harness connector	2.	Generator	3.	"B" terminal harness
A.	Generator bolt (upper)	B.	Generator bolt (lower)	C.	"B" terminal nut
	Front
