Physical Values
- ECM is located in the engine room left side near battery.
- Specification data are reference values and are measured between each terminal and ground.
- Pulse signal is measured by CONSULT.
|
Terminal No. (Wire color) |
Description |
Condition |
Value (Approx.) |
||
|
+ |
- |
Signal name |
Input/Output |
||
|
1 (P) |
128 (B/Y) |
Throttle control motor (Close) |
Output |
[Ignition switch: ON]
|
1.8 V |
|
2 (G) |
128 (B/Y) |
Throttle control motor power supply |
Input |
[Ignition switch: ON] |
Battery voltage (11 - 14 V) |
|
3 (V) |
128 (B/Y) |
Throttle control motor (Open) |
Output |
[Ignition switch: ON]
|
3.2 V |
|
4 (W) |
8 (B) |
Knock sensor |
Input |
[Engine is running]
|
2.5 V |
|
5 (G) |
128 (B/Y) |
Intake manifold tuning valve motor (Close) |
Output |
[Ignition switch ON]
|
Battery voltage appears for about 1 second. |
|
6 (R) |
128 (B/Y) |
Intake manifold tuning valve motor power supply |
Input |
[Ignition switch: ON] |
Battery voltage (11 - 14 V) |
|
7 (R) |
128 (B/Y) |
Intake manifold tuning valve motor (Open) |
Output |
[Ignition switch ON]
|
Battery voltage appears for about 1 second. |
|
8 (B) |
- |
Sensor ground (Knock sensor) |
- |
- |
- |
|
9 (BR) 10 (SB) 13 (O) 14 (V) |
128 (B/Y) |

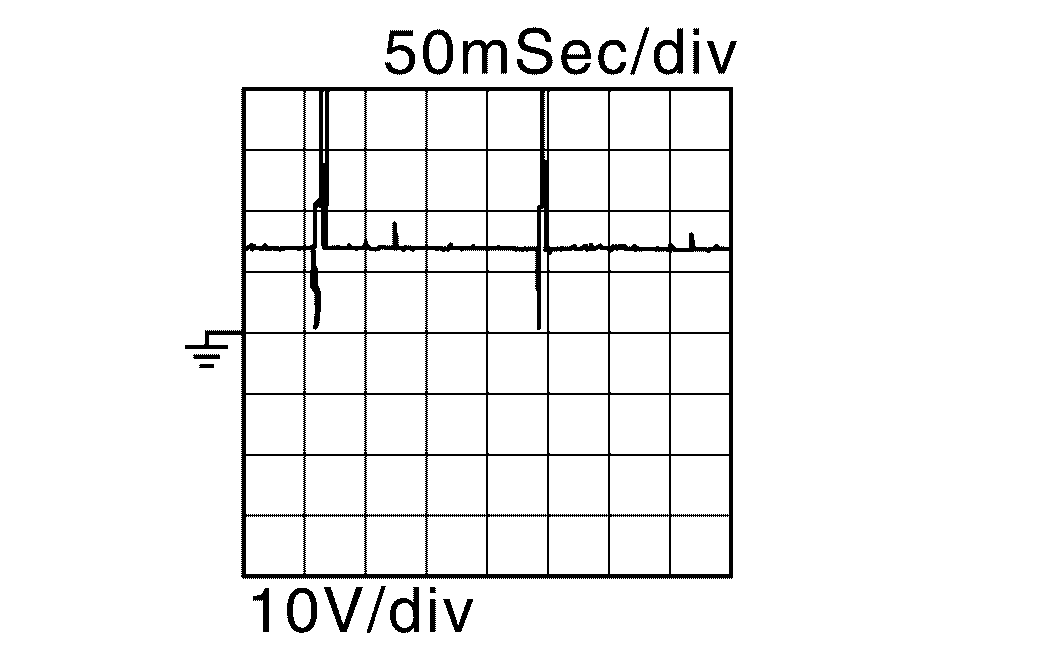

Fuel injector No. 4 Fuel injector No. 3 Fuel injector No. 1 Fuel injector No. 2 |
Output |
[Engine is running]
|
Battery voltage (11 - 14 V) |
|
[Engine is running]
|
Battery voltage (11 - 14 V) |
||||
|
12 (B) |
- |
ECM ground |
- |
- |
- |
|
16 (B) |
- |
ECM ground |
- |
- |
- |
|
17 (L) |
128 (B/Y) |

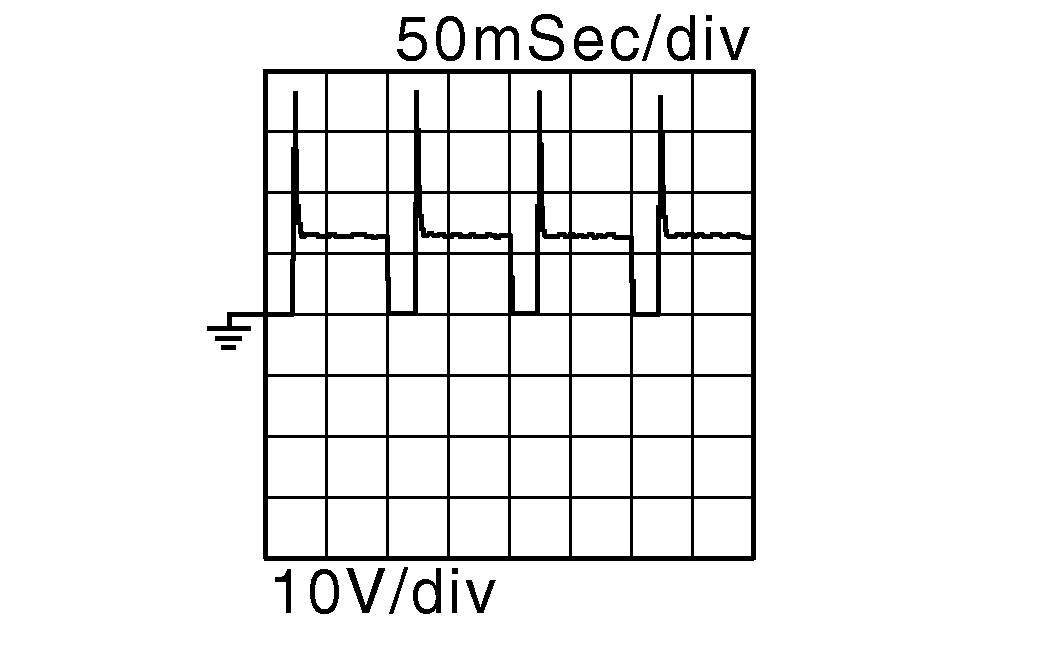

EVAP canister purge volume control solenoid valve |
Output |
[Engine is running]
|
Battery voltage (11 - 14 V) |
|
[Engine is running]
|
10 V |
||||
|
18 (GR) |
128 (B/Y) |
Fuel pump relay |
Output |
[Ignition switch: ON]
[Engine is running] |
0 - 1.0 V |
|
[Ignition switch: ON]
|
Battery voltage (11 - 14 V) |
||||
|
21 (Y) |
128 (B/Y) |
Throttle control motor relay |
Output |
[Ignition switch: OFF] |
Battery voltage (11 - 14 V) |
|
[Ignition switch: ON] |
0 - 1.0 V |
||||
|
22 (W) |
23 (BR) |
Heated oxygen sensor 2 |
Input |
[Engine is running]
|
0 - 1.0 V |
|
23 (BR) |
- |
Sensor ground (Heated oxygen sensor 2) |
- |
- |
- |
|
25 (Y) |
26 (P) |
Engine oil temperature sensor |
Input |
[Engine is running] |
0 - 4.8 V Output voltage varies with engine oil temperature. |
|
26 (P) |
- |
Sensor ground (Engine oil temperature sensor) |
- |
- |
- |
|
27 (LG) |
- |
Sensor ground (Engine coolant temperature sensor) |
- |
- |
- |
|
28 (V) |
27 (LG) |
Engine coolant temperature sensor |
Input |
[Engine is running] |
0 - 4.8 V Output voltage varies with engine coolant temperature. |
|
30 (L) |
- |
Sensor ground [Camshaft position sensor (PHASE)] |
- |
- |
- |
|
31 (BR) |
30 (L) |

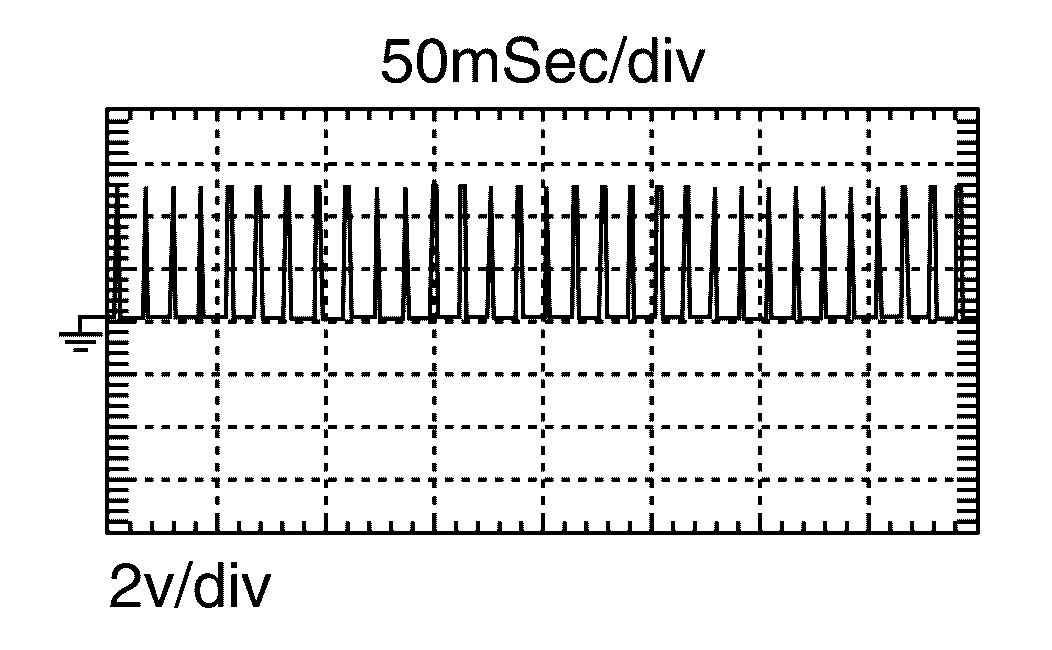

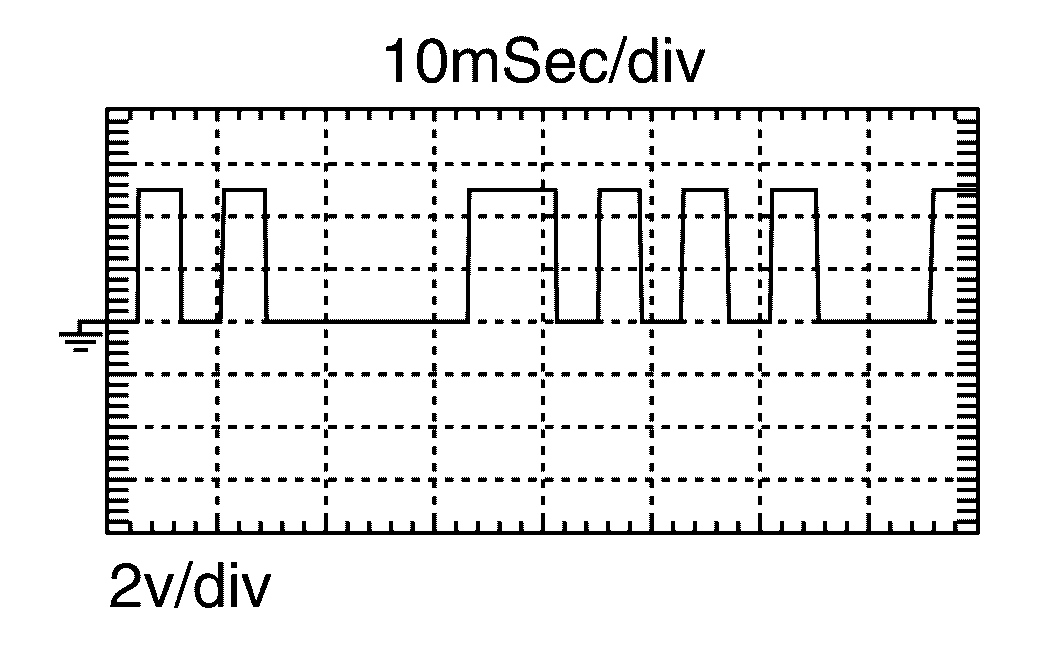

Camshaft position sensor (PHASE) |
Input |
[Engine is running]
|
1.0 - 2.0 |
|
[Engine is running]
|
1.0 - 2.0 |
||||
|
32 (GR) |
- |
Sensor power supply [Camshaft position sensor (PHASE)] |
- |
[Ignition switch: ON] |
5.0 V |
|
33 (GR) |
34 (W) |
Intake air temperature sensor |
Input |
[Engine is running] |
0 - 4.8 V Output voltage varies with intake air temperature. |
|
34 (W) |
- |
Sensor ground (Mass air flow sensor, intake air temperature sensor) |
- |
- |
- |
|
35 (G) |
34 (W) |
Mass air flow sensor |
Input |
[Ignition switch: ON]
|
Approx. 3, 700 Hz |
|
[Engine is running]
|
Approx. 4, 750 Hz |
||||
|
[Engine is running]
|
Approx. 4, 750 to Approx. 7, 000 Hz |
||||
|
36 (R) |
- |
Sensor power supply (Mass air flow sensor, intake air temperature sensor) |
- |
[Ignition switch: ON] |
5.0 V |
|
37 (B) |
- |
Shield |
- |
- |
- |
|
38 (W) |
- |
Sensor ground (Engine oil pressure sensor) |
- |
- |
- |
|
39 (G) |
38 (W) |
Engine oil pressure sensor |
Input |
[Engine is running]
|
1.3 V |
|
[Engine is running]
|
2.7 V |
||||
|
40 (R) |
38 (W) |
Sensor power supply (Engine oil pressure sensor) |
- |
[Ignition switch: ON] |
5.0 V |
|
41 (Y) |
128 (B/Y) |
A/F sensor 1 |
Input |
Engine running]
|
2.2 V (Output voltage varies with air-fuel ratio) |
|
42 (W) |
- |
Sensor ground [Exhaust valve timing control position sensor] |
- |
- |
- |
|
43 (P) |
42 (W) |
Exhaust valve timing control position sensor |
Input |
[Engine is running]
|
1.0 |
|
[Engine is running]
|
1.0 |
||||
|
44 (R) |
- |
Sensor power supply [Exhaust valve timing control position sensor] |
- |
[Ignition switch: ON] |
5 V |
|
45 (BR) |
128 (B/Y) |
A/F sensor 1 |
Input |
[Engine is running]
|
2.2 V Output voltage varies with air fuel ratio. |
|
49 *1 (G) |
128 (B/Y) |
Intake manifold runner control valve motor (Close) |
Output |
[Ignition switch ON]
|
Battery voltage appears for about 1 second. |
|
50 *1 (R) |
128 (B/Y) |
Intake manifold runner control valve motor power supply |
Input |
[Ignition switch: ON] |
Battery voltage (11 - 14 V) |
|
51 *1 (R) |
128 (B/Y) |
Intake manifold runner control valve motor (Open) |
Output |
[Ignition switch ON]
|
Battery voltage appears for about 1 second. |
|
52 (B) |
- |
ECM ground |
- |
- |
- |
|
53 (G) |
128 (B/Y) |
A/F sensor 1 heater |
Input |
[Engine is running]
|
10 V |
|
54 (G) |
128 (B/Y) |
Heated oxygen sensor 2 heater |
Output |
[Engine is running]
|
8 V |
|
[Ignition switch: ON]
[Engine is running]
|
Battery voltage (11 - 14 V) |
||||
|
61 (BG) |
62 (BR) |
Battery temperature sensor |
Input |
[Engine is running]
|
3.3 V |
|
62 (BR) |
- |
Sensor ground (Battery current sensor, battery temperature sensor) |
- |
- |
- |
|
63 (G) |
62 (BR) |
Battery current sensor |
Input |
[Engine is running]
|
2.6 - 3.5 V |
|
64 (Y) |
- |
Sensor power supply (Battery current sensor) |
- |
[Ignition switch: ON] |
5.0 V |
|
70 (W) |
- |
Sensor ground [Crankshaft position sensor (POS)] |
- |
- |
- |
|
71 (R) |
70 (W) |

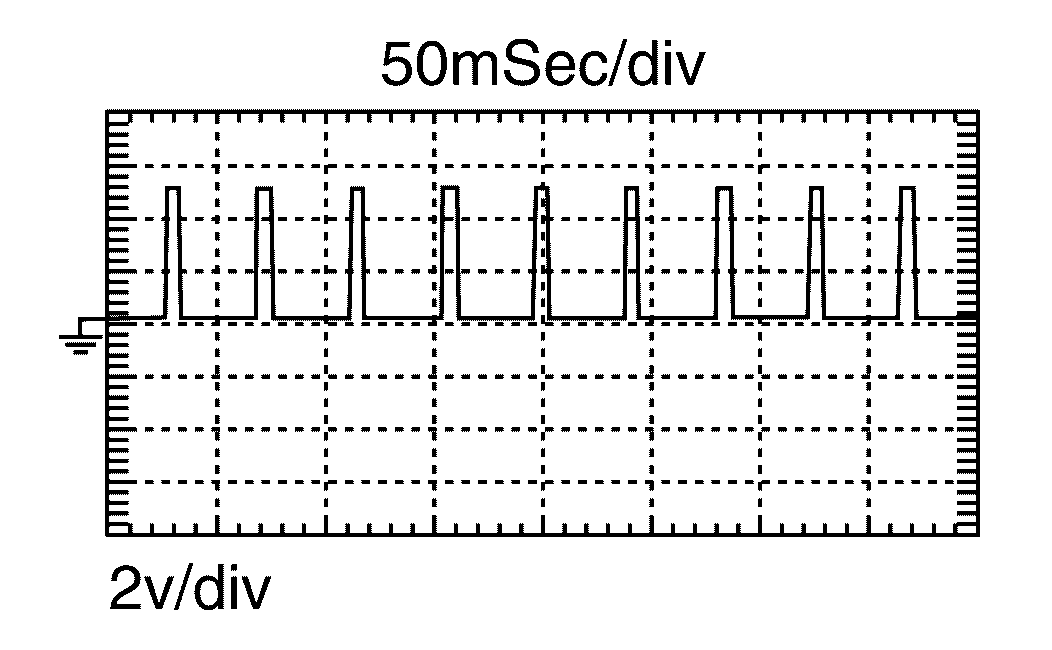

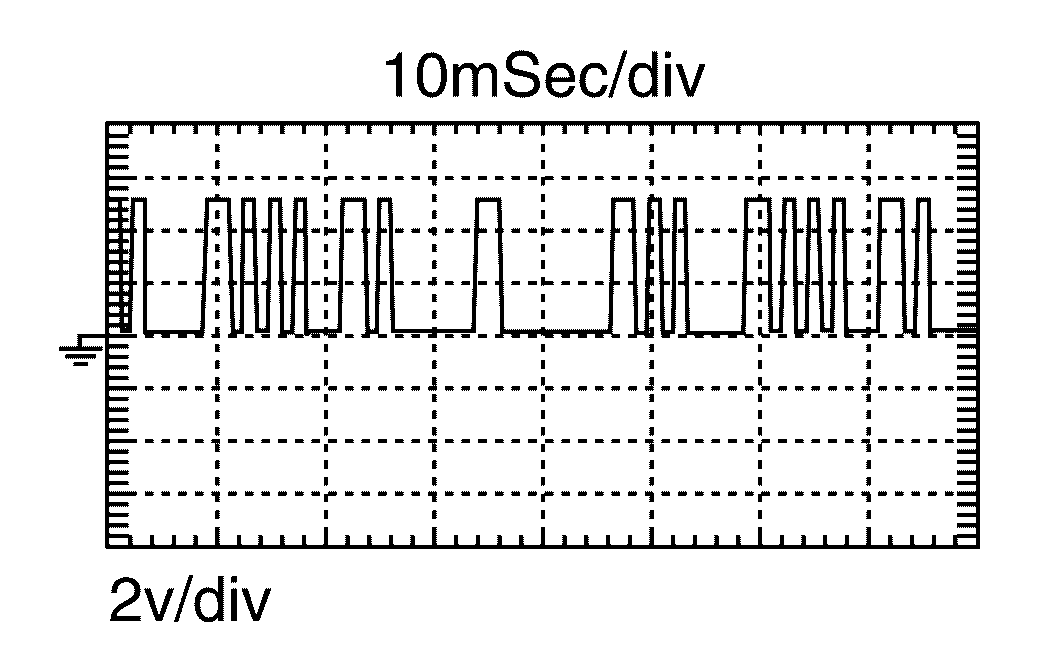

Crankshaft position sensor (POS) |
Input |
[Engine is running]
|
1.0 V |
|
[Engine is running]
|
1.0 V |
||||
|
72 (G) |
- |
Sensor power supply [Crankshaft position sensor (POS)] |
- |
[Ignition switch: ON] |
5.0 V |
|
73 (GR) |
- |
Shield |
- |
- |
- |
|
74 (V) |
- |
Sensor ground [Barometric pressure sensor] |
- |
- |
- |
|
75 (P) |
74 (V) |
Barometric pressure sensor |
Output |
[Engine is running]
|
4.6 V Output voltage atmospheric pressure. |
|
[Engine is running]
|
1.2 V |
||||
|
[Engine is running]
|
1.5 V |
||||
|
76 (R) |
- |
Sensor power supply [Barometric pressure sensor] |
- |
[Ignition switch: ON] |
5.0 V |
|
77 (W) |
78 (R) |
Throttle position sensor 2 |
Input |
[Ignition switch: ON]
|
Less than 4.75 V |
|
[Ignition switch: ON]
|
More than 0.36 V |
||||
|
78 (R) |
- |
Sensor ground (Throttle position sensor) |
- |
- |
- |
|
79 (G) |
78 (R) |
Throttle position sensor 1 |
Input |
[Ignition switch: ON]
|
More than 0.36 V |
|
[Ignition switch: ON]
|
Less than 4.75 V |
||||
|
80 (B) |
- |
Sensor power supply (Throttle position sensor) |
- |
[Ignition switch: ON] |
5.0 V |
|
81 (Y) |
128 (B/Y) |
Power supply for ECM (Backup) |
Input |
[Ignition switch: OFF] |
Battery voltage (11 - 14 V) |
|
83 *1 (LG) |
92 (V) |
Intake manifold runner control valve position sensor |
Input |
[Ignition switch ON]
|
Less than 2.4 V |
|
[Ignition switch ON]
|
More than 3.5 V |
||||
|
84 *1 (W) |
- |
Sensor power supply (Intake manifold runner control valve position sensor) |
- |
[Ignition switch: ON] |
More than 4.98 V |
|
86 (R) |
128 (B/Y) |

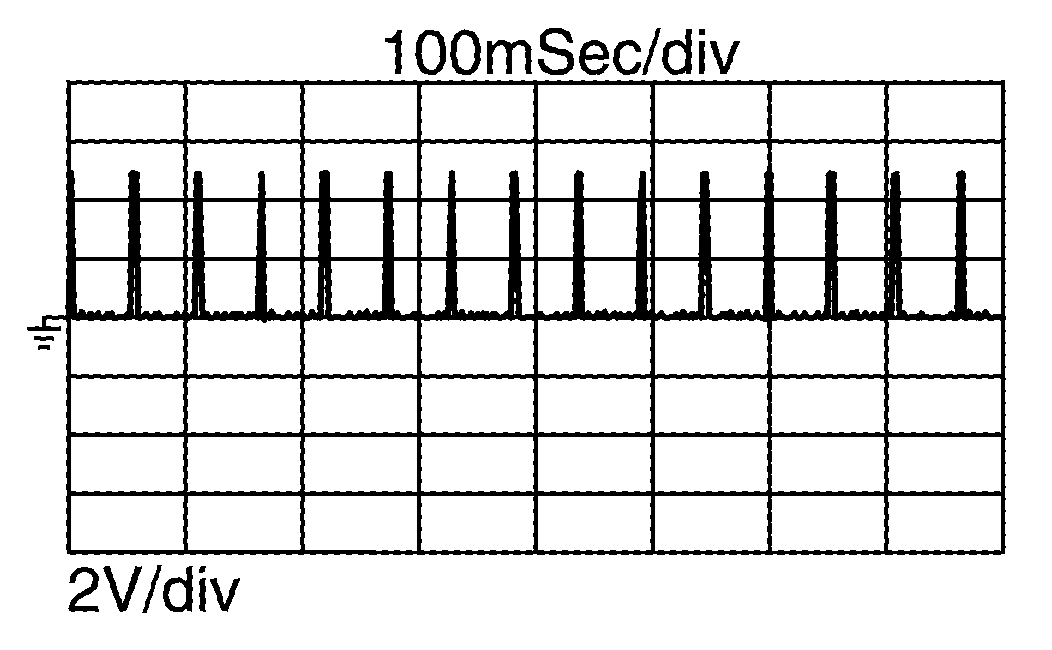

Ignition signal No. 1 |
Output |
[Engine is running]
|
0 - 0.1 V |
|
87 (LG) |
Ignition signal No. 2 |
||||
|
90 (P) |
Ignition signal No. 3 |
[Engine is running]
|
0 - 0.2 V |
||
|
91 (SB) |
Ignition signal No. 4 |
||||
|
89 (GR) |
128 (B/Y) |
ECM relay (Self shut-off) |
Output |
[Engine is running] [Ignition switch: OFF]
|
0 - 1.0 V |
|
[Ignition switch: OFF]
|
Battery voltage (11 - 14 V) |
||||
|
92 *1 (LG) |
- |
Sensor ground (Intake manifold runner control valve position sensor) |
- |
- |
- |
|
93 (LG) |
128 (B/Y) |
Intake valve timing control solenoid valve |
Output |
[Engine is running]
|
0 V |
|
[Engine is running]
|
11 - 14 V |
||||
|
94 (G) |
128 (B/Y) |
Exhaust valve timing control solenoid valve |
Output |
[Engine is running]
|
0 V |
|
[Engine is running]
|
Battery voltage (11 - 14 V) |
||||
|
97 (BR) |
128 (GR) |
EVAP canister vent control valve |
Output |
[Ignition switch: ON] |
Battery voltage (11 - 14 V) |
|
99 (P) |
- |
CAN communication line (CAN-L) |
Input/Output |
- |
- |
|
100 (L) |
- |
CAN communication line (CAN-H) |
Input/Output |
- |
- |
|
101 (G) |
128 (B/Y) |
Starter relay cut off signal |
Input/Output |
[Ignition switch: ON] |
0 V |
|
[Engine is running]
|
Battery voltage (11 - 14 V) |
||||
|
103 (LG) |
124 (Y) |
Refrigerant pressure sensor |
Input |
[Engine is running]
|
1.0 - 4.0 V |
|
104 (L) |
- |
Sensor power supply (Refrigerant pressure sensor) |
- |
[Ignition switch: ON] |
5.0 V |
|
105 (V) |
128 (B/Y) |
Starter motor relay control signal |
Output |
[Engine is running]
NOTE:
To decrease engine speed, perform the DTC confirmation procedure B in P1650. Refer to DTC Logic
.
|
0 V (While operating the starter motor) |
|
[Engine is running]
|
Battery voltage (11 - 14 V) |
||||
|
109 (O) |
128 (B/Y) |
Ignition switch |
Input |
[Ignition switch: OFF] |
0 V |
|
[Ignition switch: ON] |
Battery voltage (11 - 14 V) |
||||
|
110 (G) |
111 (B) |
ASCD steering switch |
Input |
[Ignition switch: ON]
|
4 V |
|
[Ignition switch: ON]
|
0 V |
||||
|
[Ignition switch: ON]
|
1 V |
||||
|
[Ignition switch: ON]
|
3 V |
||||
|
[Ignition switch: ON]
|
2 V |
||||
|
111 (B) |
- |
Sensor ground (ASCD steering switch) |
- |
- |
- |
|
113 (G) |
- |
Sensor power supply (EVAP control system pressure sensor) |
- |
[Ignition switch: ON] |
5.0 V |
|
114 (P) |
124 (SB) |
EVAP control system pressure sensor |
Input |
[Ignition switch: ON] |
0.5 - 4.6 V |
|
115 (SB) |
128 (B/Y) |
Stop lamp switch |
Input |
[Ignition switch: OFF]
|
0 V |
|
[Ignition switch: OFF]
|
Battery voltage (11 - 14 V) |
||||
|
116 (G) |
128 (B/Y) |
Brake pedal position switch |
Input |
[Ignition switch: OFF]
|
Battery voltage (11 - 14 V) |
|
[Ignition switch: OFF]
|
0 V |
||||
|
117 (BR) |
128 (B/Y) |
|
Input |
[Ignition switch: ON]
|
Battery voltage (11 - 14 V) |
|
[Ignition switch: ON]
|
0 V |
||||
|
118 (O) |
- |
Sensor power supply (Accelerator pedal position sensor 2) |
- |
[Ignition switch: ON] |
5.0 V |
|
119 (W) |
120 (Y) |
Accelerator pedal position sensor 2 |
Input |
[Ignition switch: ON]
|
0.3 - 0.6 V |
|
[Ignition switch: ON]
|
1.95 - 2.4 V |
||||
|
120 (Y) |
- |
Sensor ground (Accelerator pedal position sensor 2) |
- |
- |
- |
|
121 (G) |
128 (B/Y) |
Power supply for ECM |
Input |
[Ignition switch: ON] |
Battery voltage (11 - 14 V) |
|
122 (V) |
- |
Sensor power supply (Accelerator pedal position sensor 1) |
- |
[Ignition switch: ON] |
5.0 V |
|
123 (B/Y) |
- |
ECM ground |
- |
- |
- |
|
124 (V) |
- |
Sensor ground (EVAP control system pressure sensor, refrigerant pressure sensor) |
- |
- |
- |
|
126 (R) |
127 (GR) |
Accelerator pedal position sensor 1 |
Input |
[Ignition switch: ON]
|
0.6 - 0.9 V |
|
[Ignition switch: ON]
|
3.9 - 4.7 V |
||||
|
127 (GR) |
- |
Sensor ground (Accelerator pedal position sensor 1) |
- |
- |
- |
|
128 (B/Y) |
- |
ECM ground |
- |
- |
- |
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
*1: CVT models
*2: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to How to Handle Battery .
