Exploded View: MR16DDT

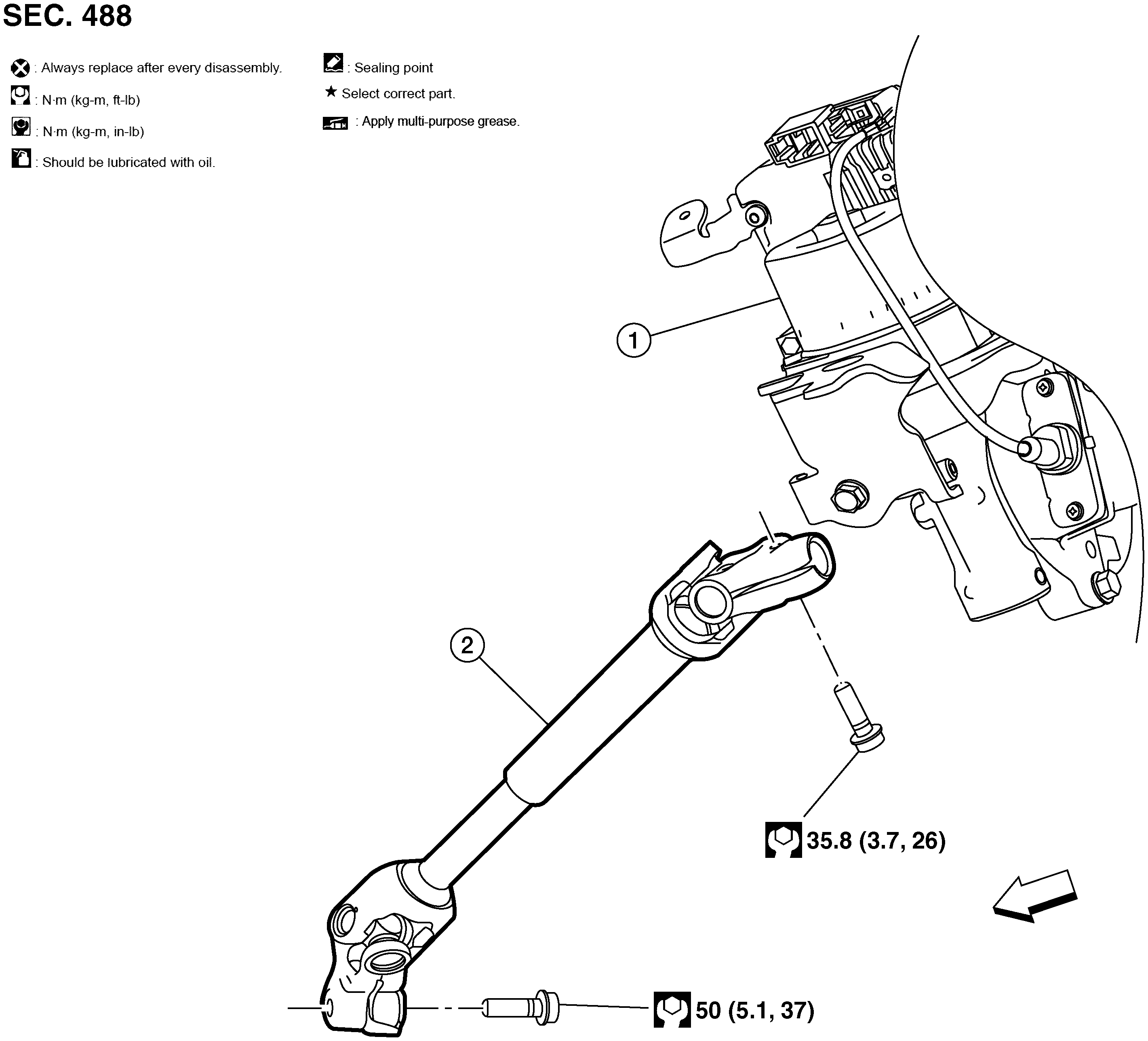

Fig 1: Steering Column Replacement Components With Torque Specifications (MR16DDT)
GNSALGIA0118Z-118Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Lower joint

SYMBOL

Front
