Exploded View

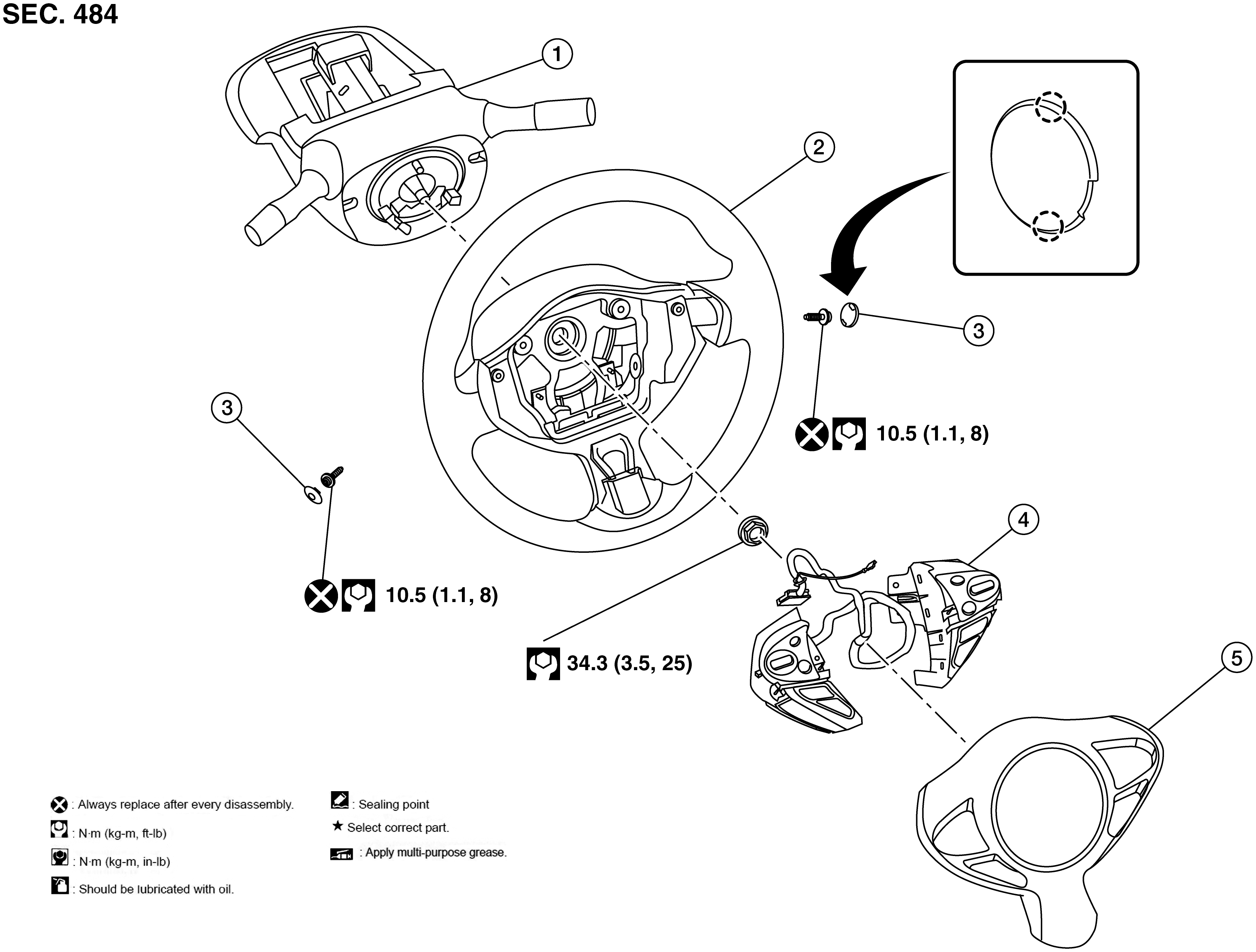

Fig 1: Steering Wheel Replacement Components With Torque Specifications (Type 1)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column assembly	2.	Steering wheel	3.	Steering switches
4.	Driver air bag module

Fig 2: Steering Wheel Replacement Components With Torque Specifications (Type 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column assembly	2.	Steering wheel	3.	Side lid (LH/RH)
4.	Steering switches	5.	Driver air bag module
