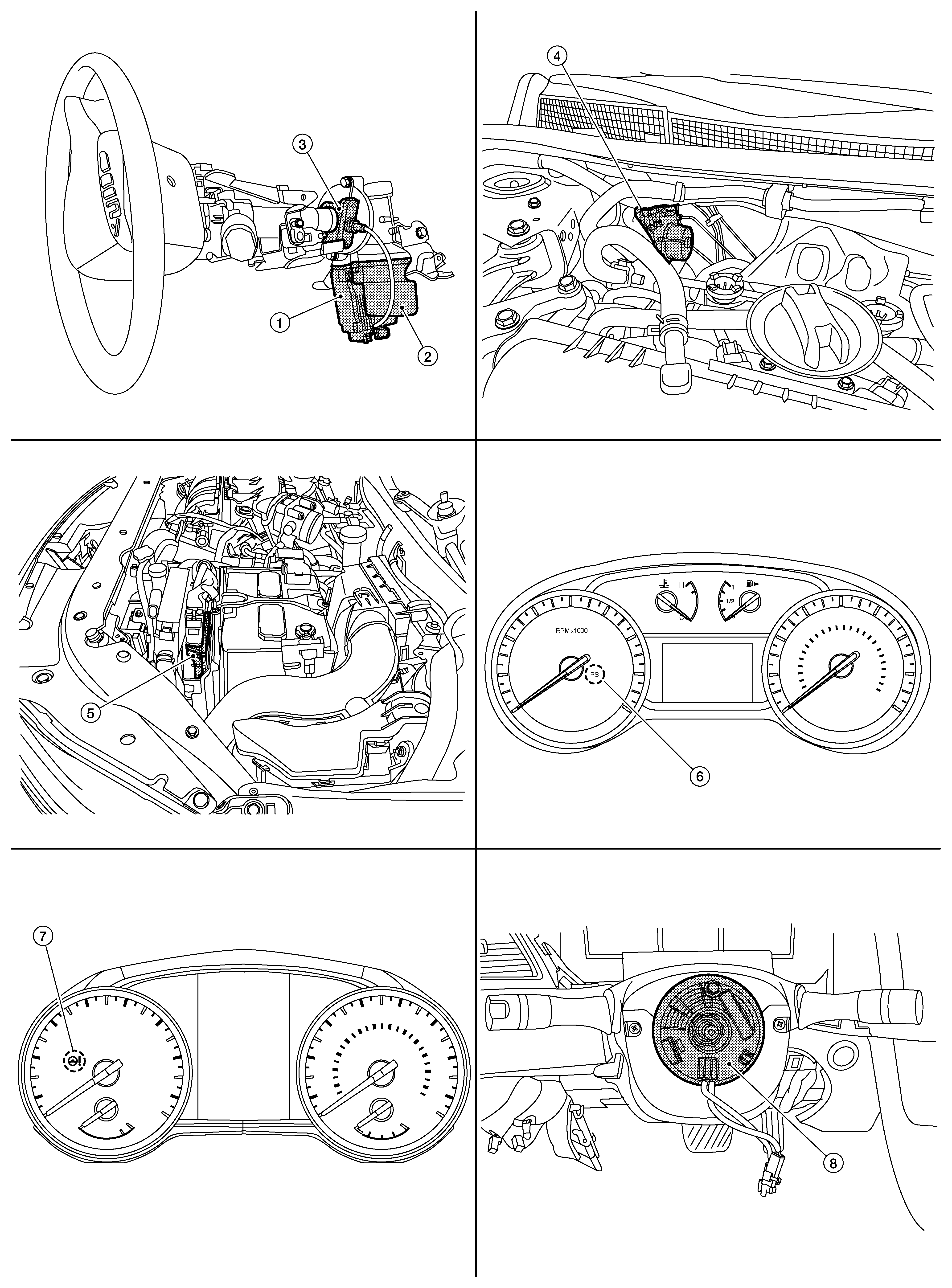

Component Parts Location
|
1. |
EPS control unit (view with steering column removed from vehicle) |
2. |
EPS motor (view with steering column removed from vehicle) |
3. |
Torque sensor (view with steering column removed from vehicle) |
|
4. |
ABS actuator and electric unit (control unit) |
5. |
ECM |
6. |
EPS warning lamp (In combination meter type A) |
|
7. |
EPS warning lamp (In combination meter type B) |
8. |
Steering angle sensor (view with steering wheel removed) |
