Physical Values

Terminal

Wire

color

Circuit

Input/

Output

Ignition

switch

Condition

Value

1

R

Battery power supply

Input

OFF

-

Battery voltage

2

Y

Battery power supply

Input

OFF

-

Battery voltage

3

SB ¹

W ²

Ignition switch power supply (START)

Input

OFF

ACC

ON

-

0V

START

-

Battery voltage

5

Y

Cooling fan power supply (HIGH)

Output

ON

or

START

Cooling fan OFF

0V

Cooling fan LO

4 - 8 V

Cooling fan MID or HI

Battery voltage

6

R

Starter motor power supply

Output

OFF

ACC

ON

-

0V

START

-

Battery voltage

7

P

Cooling fan power supply (LOW)

Output

ON

or

START

Cooling fan OFF

0V

Cooling fan LO

Battery voltage

Cooling fan MID

4 - 8 V

Cooling fan HI

Battery voltage

8

G

Battery power supply

Input

OFF

-

Battery voltage

9

BR

Fuel pump power supply

Output

ON

RUN

Approximately 1 second after turning the ignition switch ON

Battery voltage

ON

Approximately 1 second after turning the ignition switch ON

0V

10 ²

L

Ignition switch power supply (ON or START)

Input

OFF

0V

ON

or

START

Battery voltage

11

G

ECM relay power supply

Output

OFF

More than a few seconds after turning ignition switch OFF

0V

ON

OFF

For a few seconds after turning ignition switch OFF

Battery voltage

13 ³

R ¹

LG ²

Starter relay coil power supply

Input

ON

Clutch pedal depressed

0V

Clutch pedal released

Battery voltage

14

L

Headlamp LOW (LH) power supply

Output

Lighting switch OFF

0V

Lighting switch 2ND

Battery voltage

15 ¹

LG

Starter relay coil power supply

Input

0V

Battery voltage

16

P

Headlamp LOW (RH) power supply

Output

Lighting switch OFF

0V

Lighting switch 2ND

Battery voltage

17

LG

Front wiper motor LOW power supply

Output

ON

Front wiper switch OFF

0V

Front wiper switch LO

Battery voltage

18

GR

Front wiper motor HIGH power supply

Output

ON

Front wiper switch OFF

0V

Front wiper switch HI

Battery voltage

19

B

Ground

-

-

-

-

20

BR

ABS actuator and electric unit (control unit) power supply

Output

OFF

-

0V

ON

or

START

-

Battery voltage

21 ³

G

Clutch interlock switch power supply

Output

OFF

or

ACC

0V

ON

Battery voltage

21 ⁴

R

Transmission range switch power supply

Output

OFF

or

ACC

0V

ON

Battery voltage

22

P

Illumination power supply

Output

Lighting switch OFF

0V

Lighting switch 1ST

Battery voltage

23

R

Combination lamp power supply

Output

Lighting switch OFF

0V

Lighting switch 1ST

Battery voltage

24 ⁵

W

Daytime running light relay 1 power supply

Output

Lighting switch OFF

0V

Lighting switch 1ST

Battery voltage

25

G

Headlamp HIGH (LH) power supply

Output

Lighting switch other than HI and PASS

0V

Lighting switch HI

Lighting switch PASS

Battery voltage

27

Y

Headlamp HIGH (RH) power supply

Output

Lighting switch other than HI and PASS

0V

Lighting switch HI

Lighting switch PASS

Battery voltage

28

V

A/C compressor power supply

Output

RUN

A/C switch OFF

0V

A/C switch ON

(A/C compressor is operating)

Battery voltage

29

L/W

Throttle control motor relay power supply

Output

OFF

More than a few seconds after turning ignition switch OFF

0V

ON

OFF

For a few seconds after turning ignition switch OFF

Battery voltage

32

G/W

Throttle control motor relay control

Output

ON → OFF

0V

↓

Battery voltage

↓

0 V

ON

0V

34

Y

Ignition coil power supply

Output

OFF

or

ACC

0V

ON

Battery voltage

35

BR

NATS antenna amp power supply

Output

OFF

Battery voltage

36

SB

Fuel injector power supply

Output

OFF

or

ACC

0V

ON

Battery voltage

39

L

Timing control solenoid valve power

supply

Output

OFF

More than a few seconds after turning ignition switch OFF

0V

ON

OFF

For a few seconds after turning ignition switch OFF

Battery voltage

40 ⁴

BR

Starter relay coil power supply

Input

ON

Select lever in any position other than P or N

0V

Select lever P or N

Battery voltage

43

GR

Fuel pump relay control

Output

ON

RUN

Approximately 1 second after turning the ignition switch ON

0V

ON

Approximately 1 second or more after turning the ignition switch

Battery voltage

47

R/W

ECM power supply

Output

OFF

More than a few seconds after turning ignition switch OFF

0V

ON

OFF

For a few seconds after turning ignition switch OFF

Battery voltage

48

O

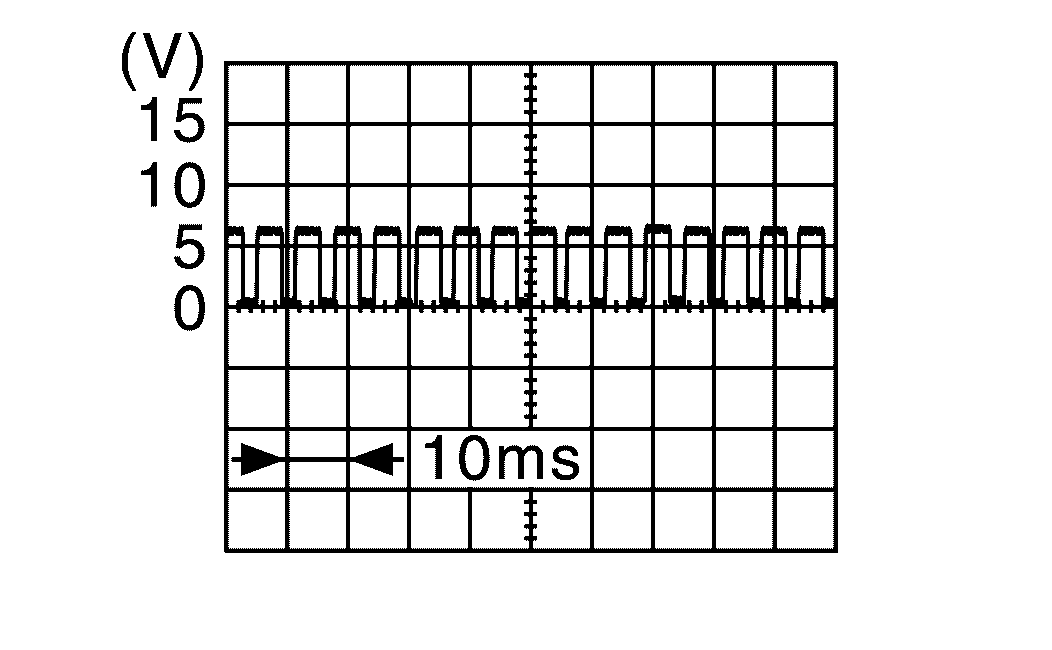

Generator C

Output

OFF

or

ACC

0V

ON

50

P

ECM relay control

Output

OFF

More than a few seconds after turning ignition switch OFF

0V

ON

OFF

For a few seconds after turning ignition switch OFF

Battery voltage

59

Y

Cooling fan relay control

Output

Cooling fan OFF or LO operated

Battery voltage

Cooling fan MID or HI operated

0V

60

B

Ground

-

-

-

-

61

P

CAN low

Input/Output

-

-

-

62

L

CAN high

Input/Output

-

-

-

65

BR

Cooling fan relay power supply

Output

OFF

or

ACC

0V

ON

Battery voltage

69 ⁵

GR

Daytime running light relay 1 control

Output

Battery voltage

0V

71 ⁶

W

Front fog lamp relay control

Output

Front fog lamp switch OFF

Battery voltage

Front fog lamp switch ON

0V

73

SB

Horn relay control

Output

Horn is not activated

Battery voltage

Horn is activated

0V

74

V

Front wiper motor stop position

Input

ON

Front wiper stop position

0V

Any position other than front wiper stop position

Battery voltage

80 ¹

R

PNP switch

Input

ON

Selector Lever in P

0V

Selector lever in any position other than P

Battery voltage

81 ¹

SB

Push-button ignition switch

Input

ON

Press the push-button ignition switch

0V

Release the push button ignition switch

Battery voltage

89 ¹

B

Ground

-

-

-

-

90 ¹

L

Ignition relay power supply

Input

ON

Ignition switch OFF or ACC

Battery voltage

Ignition switch ON

0V
