SRT Status Mode

Description

This function allows to read if ECM has completed the self-diagnoses of major emission control systems and components. For SRT, refer to System Readiness Test (SRT) Code .

Operation Procedure

1. Turn ignition switch ON and wait 20 seconds.

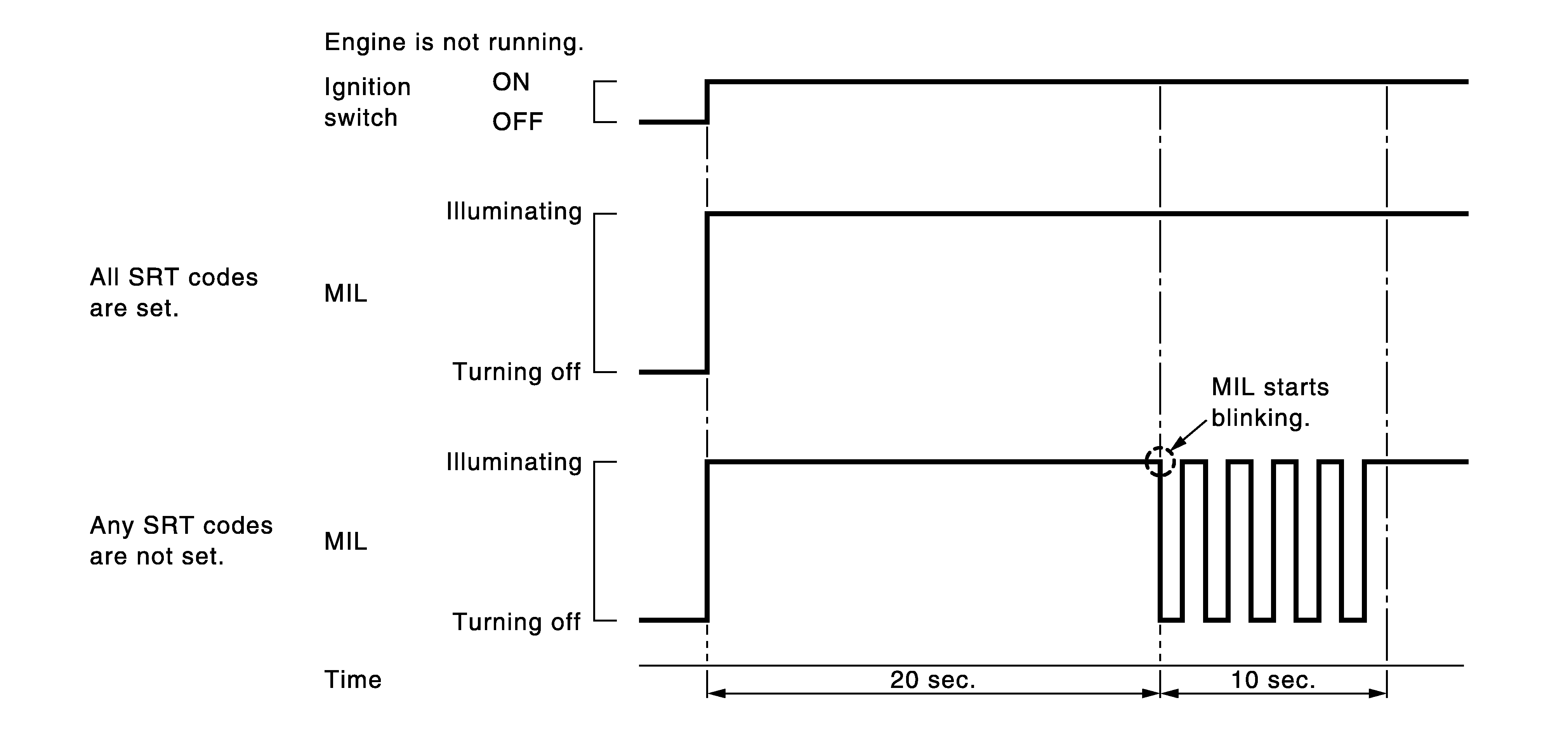

2. SRT status is indicated as shown blow.
   • ECM continues to illuminate MIL if all SRT codes are set.
   • ECM blinks MIL for about 10 seconds if all SRT codes are not set.
