Work Procedure

1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for scheduled maintenance.
2. Open engine hood and check the following:

   Courtesy of NISSAN NORTH AMERICA, INC.

   • Harness connectors for improper connections
   • Wiring harness for improper connections, pinches and cut
   • Vacuum hoses for splits, kinks and improper connections
   • Hoses and ducts for leaks
   • Air cleaner clogging
   • Gasket
3. Confirm that electrical or mechanical loads are not applied.
   • Headlamp switch is OFF.
   • Air conditioner switch is OFF.
   • Rear window defogger switch is OFF.
   • Steering wheel is in the straight-ahead position, etc.
4. Start engine and warm it up until engine coolant temperature indicator points to the middle of gauge.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Ensure engine stays below 1, 000 rpm.

5. Run engine at about 2, 000 rpm for about 2 minutes under no load.

   Courtesy of NISSAN NORTH AMERICA, INC.

6. Make sure that no DTC is displayed with CONSULT or GST.

Is any DTC detected?

YES

GO TO 2 .

NO

GO TO 3 .

Repair or replace components as necessary according to corresponding Diagnostic Procedure.

GO TO 3

1. Run engine at about 2, 000 rpm for about 2 minutes under no load.

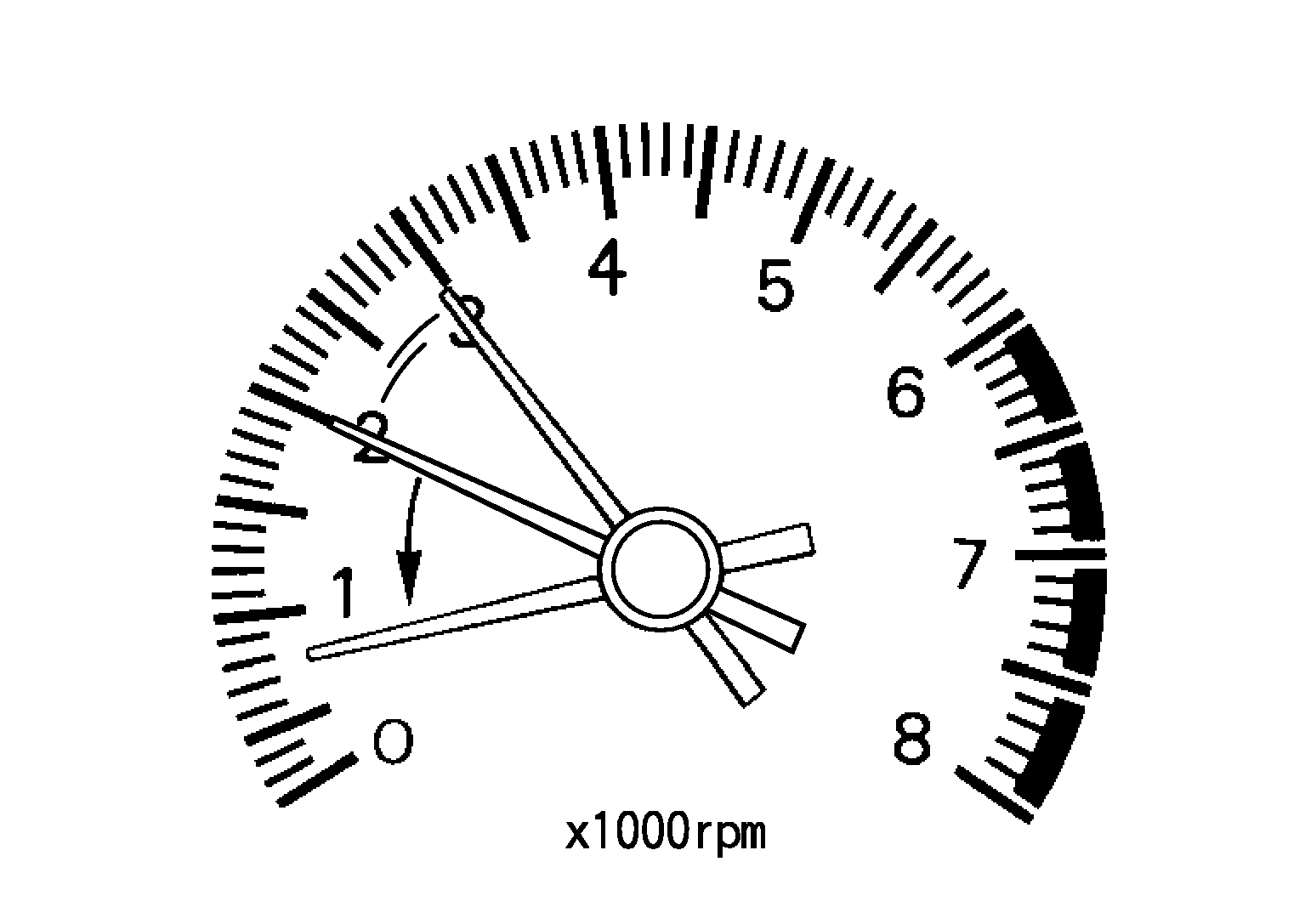

2. Rev engine (2, 000 to 3, 000 rpm) two or three times under no load, then run engine at idle speed for about 1 minute.

   Courtesy of NISSAN NORTH AMERICA, INC.

3. Check idle speed.

   For procedure, refer to Inspection .

   For specification, refer to Idle Speed .

Is the inspection result normal?

YES

GO TO 10 .

NO

GO TO 4 .

1. Stop engine.
2. Perform Description .

GO TO 5 .

Perform Description .

GO TO 6 .

Perform Description .

Is Idle Air Volume Learning carried out successfully?

YES

GO TO 7 .

NO

Follow the instruction of IDLE AIR VOLUME LEARNING. Then GO TO 4 .

1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.

   For procedure, refer to Inspection .

   For specification, refer to Idle Speed .

Is the inspection result normal?

YES

GO TO 10 .

NO

GO TO 8 .

Check the Following.

• Check camshaft position sensor (PHASE) and circuit. Refer to DTC Logic .
• Check crankshaft position sensor (POS) and circuit. Refer to DTC Logic .

Is the inspection result normal?

YES

GO TO 9 .

NO

Repair or replace. Then GO TO 4 .

1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
2. Perform initialization and registration of all NATS ignition key IDs. Refer to Description (with intelligent key) or Description (without intelligent key).

GO TO 4 .

1. Run engine at idle.
2. Check ignition timing with a timing light.

   Courtesy of NISSAN NORTH AMERICA, INC.

   For procedure, refer to Inspection .

   For specification, refer to Ignition Timing .

   • Timing indicator (1)

Is the inspection result normal?

YES

GO TO 19 .

NO

GO TO 11 .

1. Stop engine.
2. Perform Description .

GO TO 12 .

Perform Description .

GO TO 13 .

Perform Description .

Is idle air volume learning carried out successfully?

YES

GO TO 14 .

NO

Follow the instruction of IDLE AIR VOLUME LEARNING. Then GO TO 4 .

1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.

   For procedure, refer to Inspection .

   For specification, refer to Idle Speed .

Is the inspection result normal?

YES

GO TO 15 .

NO

GO TO 17 .

1. Run engine at idle.
2. Check ignition timing with a timing light.

   Courtesy of NISSAN NORTH AMERICA, INC.

   For procedure, refer to Inspection .

   For specification, refer to Ignition Timing .

   • Timing indicator (1)

Is the inspection result normal?

YES

GO TO 19 .

NO

GO TO 16 .

Check timing chain installation. Refer to Removal and Installation .

Is the inspection result normal?

YES

GO TO 17 .

NO

Repair the timing chain installation. Then GO TO 4 .

Check the following.

• Check camshaft position sensor (PHASE) and circuit. Refer to DTC Logic .
• Check crankshaft position sensor (POS) and circuit. Refer to DTC Logic .

Is the inspection result normal?

YES

GO TO 18 .

NO

Repair or replace. Then GO TO 4 .

1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to Description (with intelligent key). Description (without intelligent key).

GO TO 4 .

If ECM is replaced during this BASIC INSPECTION procedure, perform Description .

INSPECTION END
