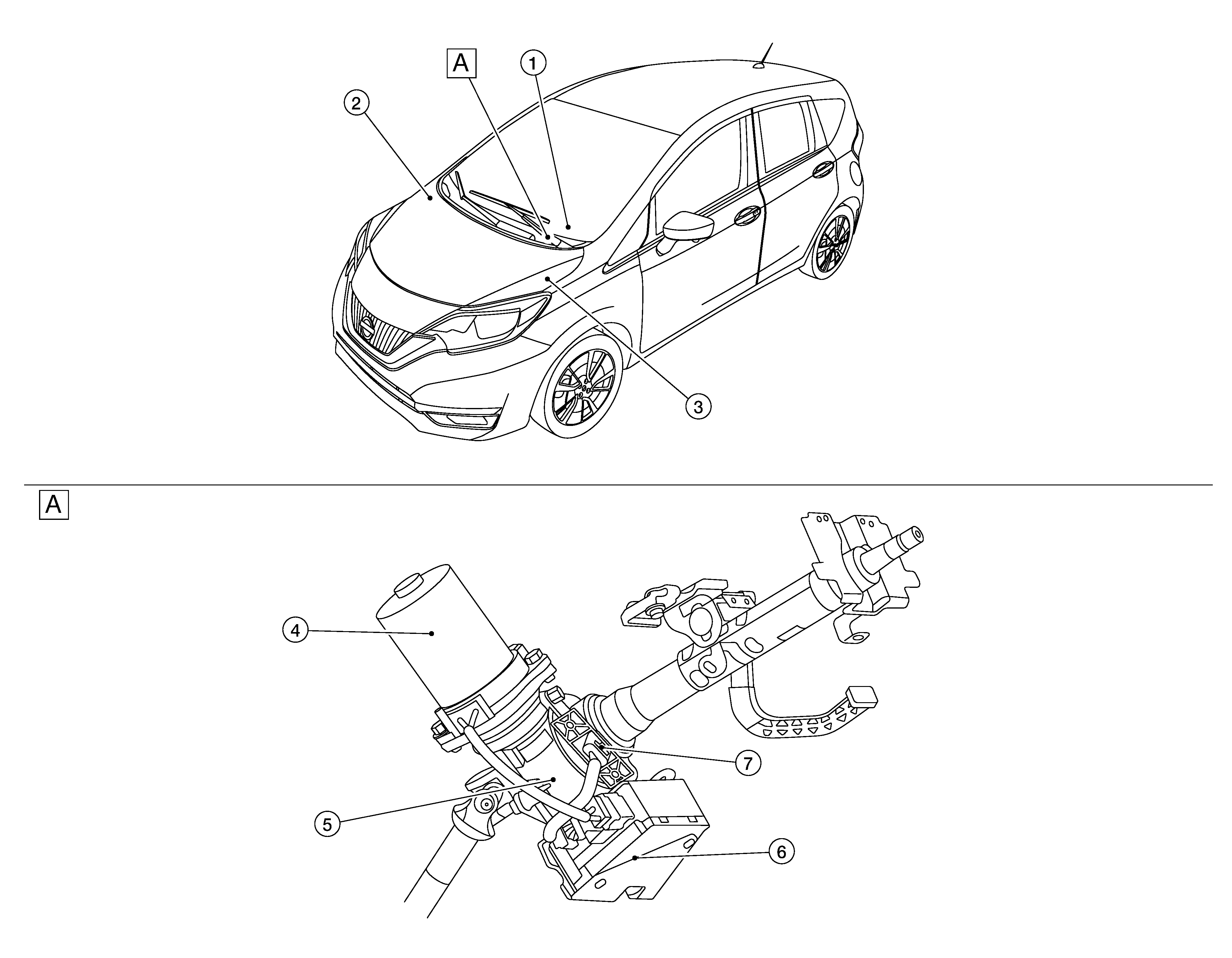

Component Parts Location

A.

Steering column assembly

No.

Component

Function

1.

Combination meter

(EPS warning lamp)

• Transmits mainly the following signal to EPS control unit via CAN communication:
  • Vehicle speed signal (Meter)
• Turns ON the EPS warning lamp according to the signal from EPS control unit via CAN communication.
• For detailed installation location, refer to Component Parts Location (Type A) or Component Parts Location (Type B).

2.

ABS actuator and electric unit (control unit)

• Transmits mainly the following signal to EPS control unit via CAN communication:
  • Vehicle speed signal (ABS)
• For detailed installation location, refer to Component Parts Location .

3.

ECM

• Transmits mainly the following signal to EPS control unit via CAN communication:
  • Engine status signal
• For detailed installation location, refer to Component Parts Location .

• Receives mainly the following signal from EPS control unit via CAN communication:
  • EPS torque signal

4.

EPS motor

Refer to EPS Motor, Torque Sensor, Reduction Gear .

5.

Reduction gear

Refer to EPS Motor, Torque Sensor, Reduction Gear .

6.

EPS control unit

Refer to EPS Control Unit .

7.

Torque sensor

Refer to EPS Motor, Torque Sensor, Reduction Gear .
