Exploded View

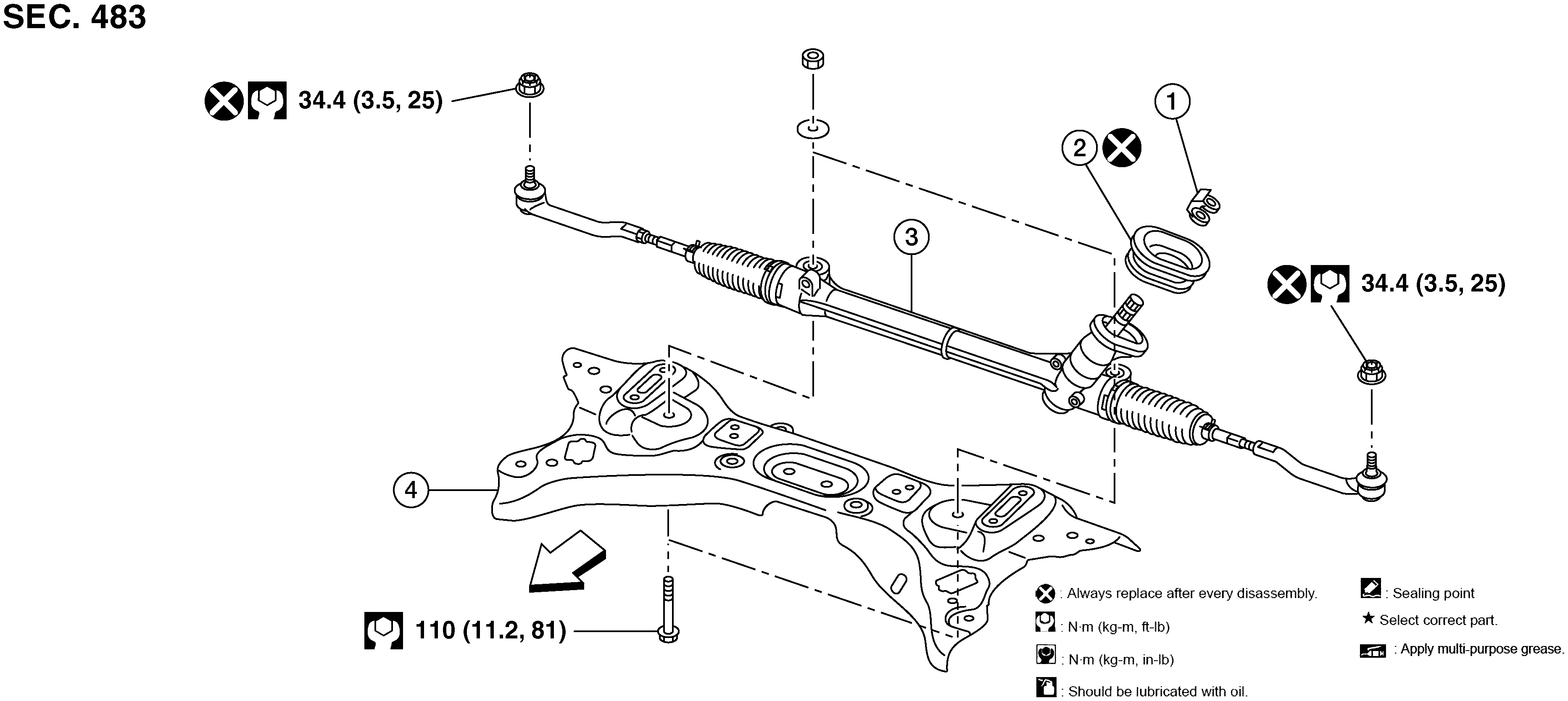

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSAWGIA0510Z-510Courtesy of NISSAN NORTH AMERICA, INC.

1.

Guide

2.

Cowl seal

3.

Steering gear

4.

Front suspension member

SYMBOL

Front
