Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

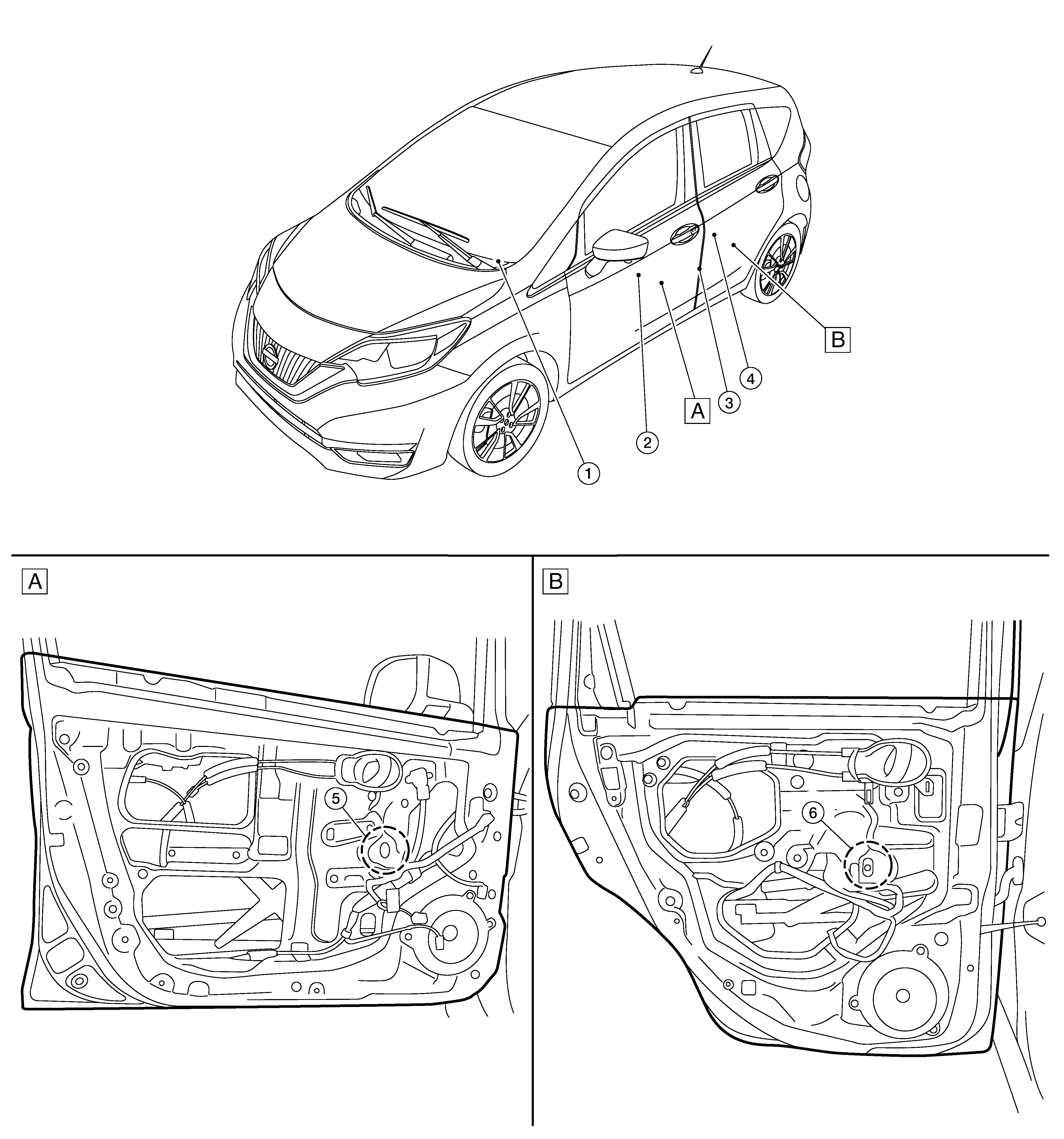

View with LH front door finisher removed

View with LH rear door finisher removed

No.	Component parts	Function
1.	BCM	Supplies power supply to power window switch. Controls retained power. Refer to Component Parts Location for detailed installation location.
2.	Main power window and door lock/unlock switch	Refer to Main Power Window And Door Lock/Unlock Switch .
3.	Front door switch LH	Inputs door open/close condition to BCM. Refer to Door Switch for detailed installation location.
4.	Rear power window switch LH	Refer to Power Window Switch .
5.	Front power window motor LH	Refer to Power Window Motor .
6.	Rear power window motor LH	Refer to Power Window Motor .
