Spark Plug
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

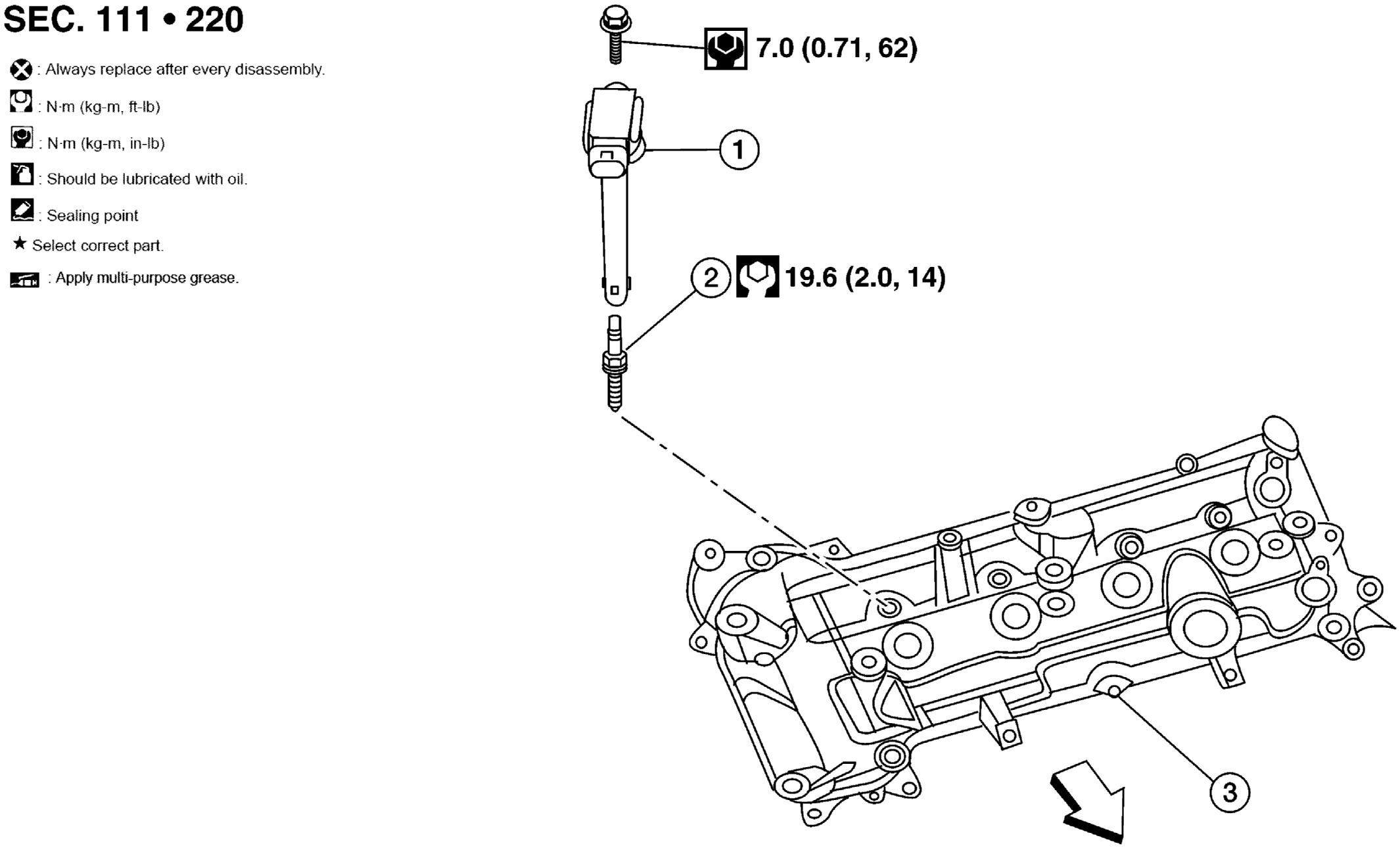

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Ignition coil
2.
Spark plug
3.
Rocker cover
Front
Courtesy of NISSAN NORTH AMERICA, INC.
