Exploded View

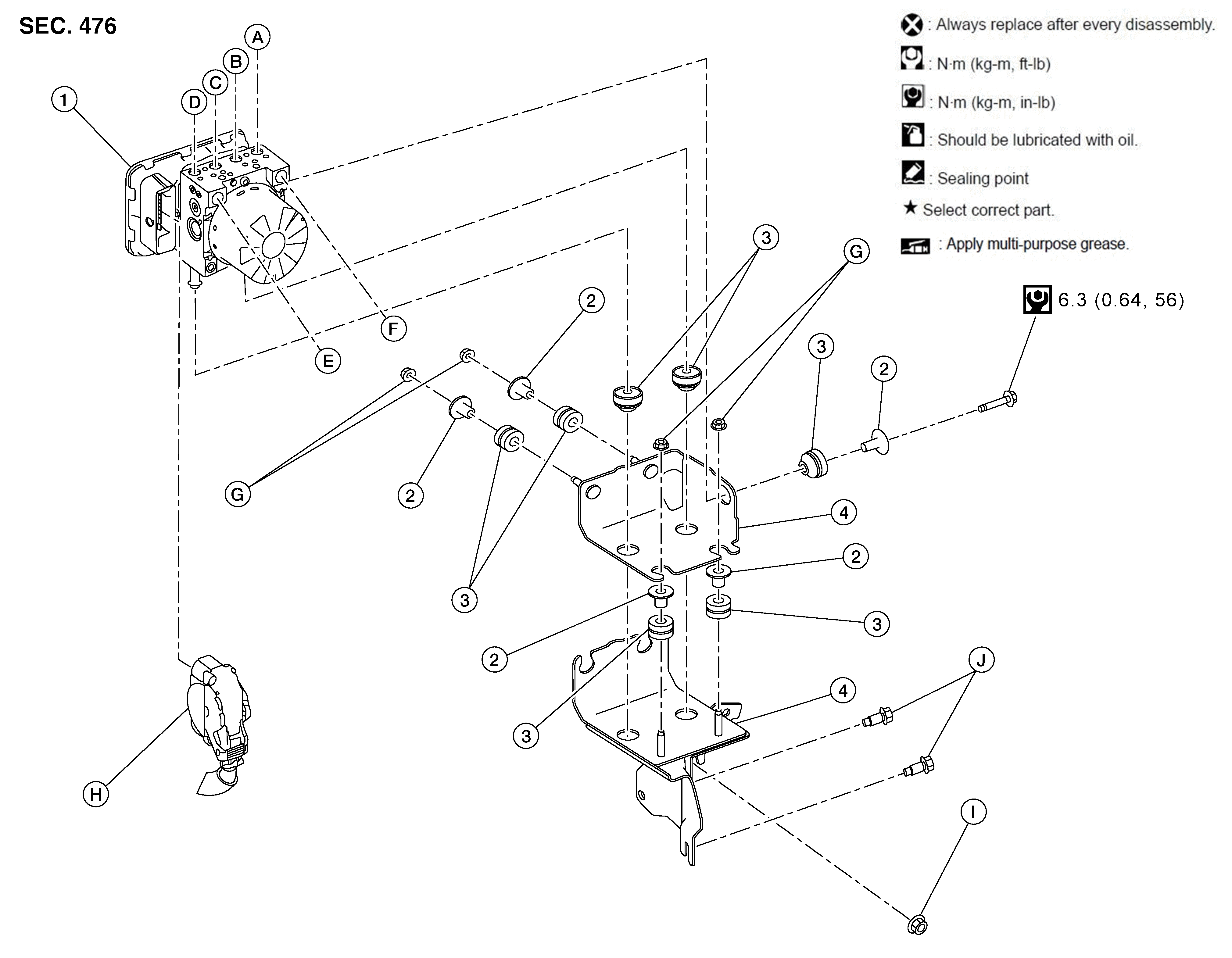

Fig 1: ABS Actuator And Electric Unit (Control Unit) Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Insulator collar	3.	Insulator
4.	Bracket	A.	To rear (LH) brake caliper or wheel cylinder. Refer to Exploded View .	B.	To front (RH) brake caliper. Refer to Exploded View .
C.	To front (LH) brake caliper. Refer to Exploded View .	D.	To rear (RH) brake caliper or wheel cylinder. Refer to Exploded View .	E.	From master cylinder primary side. Refer to Exploded View .
F.	From master cylinder secondary side. Refer to Exploded View .	G.	Nut	H.	Harness connector
I.	Refer to Removal and Installation .	J.	Refer to Removal and Installation .
