Exploded View

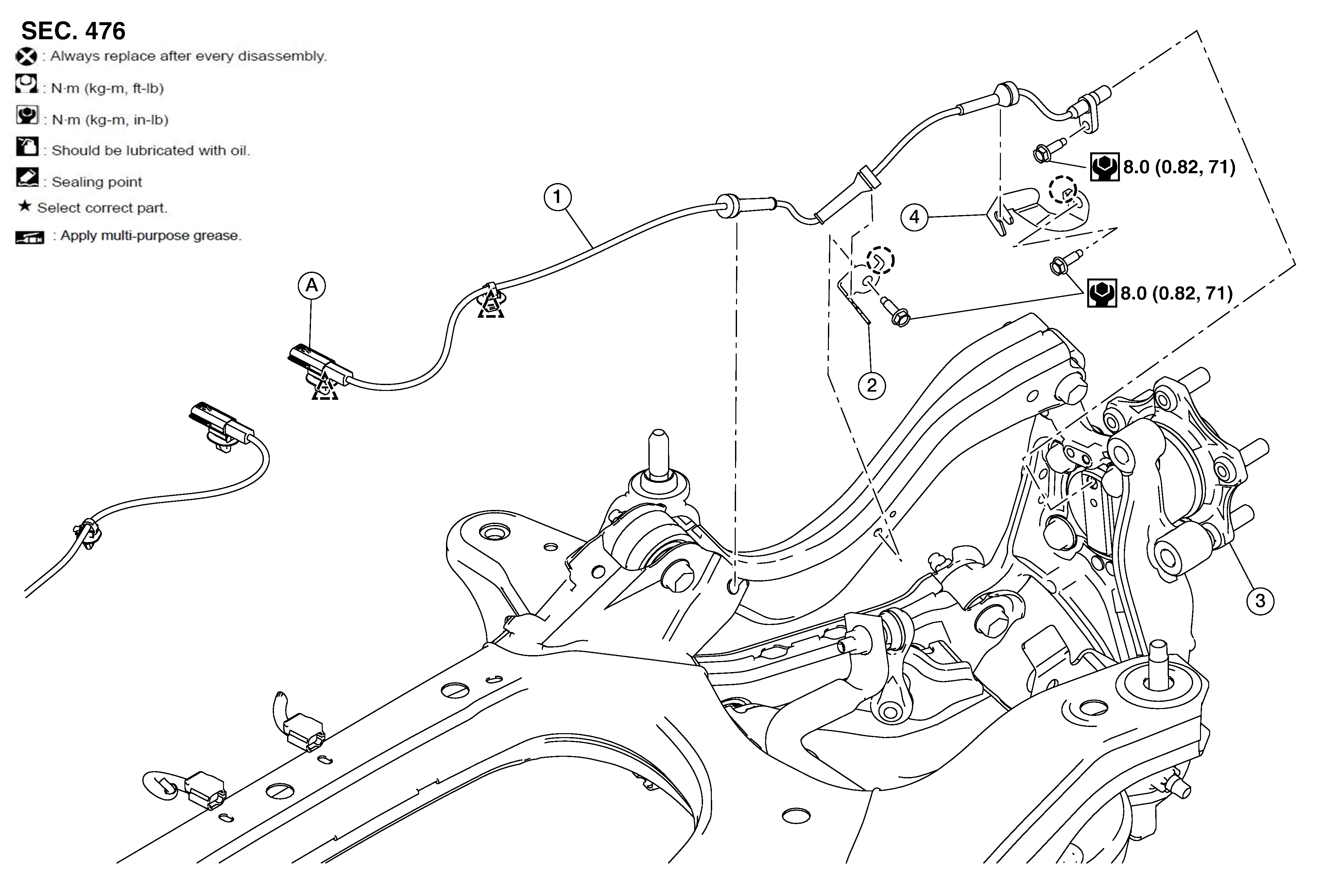

Fig 1: Rear Wheel Sensor Components With Torque Specifications
GNSALFIA0231Z-231Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear wheel sensor

2.

Sensor bracket [LH/RH (inboard)]

3.

Wheel hub assembly (Bearing-integrated type)

4.

Sensor bracket [LH/RH (outboard)]

A.

Harness connector

SYMBOL

Pawl

SYMBOL

Clip
