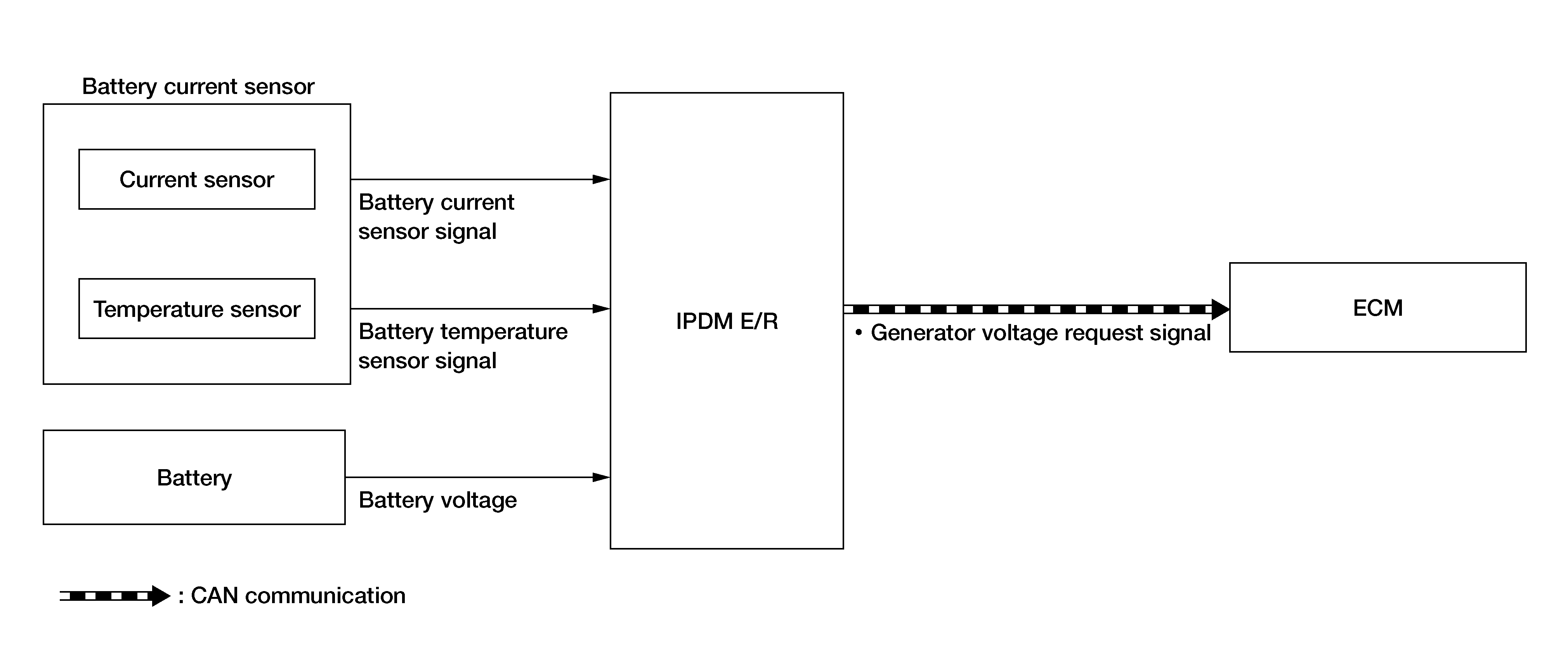

System Diagram
Description
|
Component |
Function |
|
|
Battery current sensor |
Current sensor |
Detects the charging/discharging current of the battery. |
|
Temperature sensor |
Detects the temperature around the battery. |
|
|
Battery |
Battery supplies power supply voltage to each unit and parts. |
|
|
IPDM E/R |
The IPDM E/R transmits the generator voltage request signal to the ECM via CAN communication according to battery voltage and the battery temperature sensor signal. |
|
|
ECM |
The ECM controls power generation voltage to the generator according to the request from the IPDM E/R received via CAN communication. |
|
