Removal and Installation

REMOVAL

1. Remove shift selector finisher using the following steps:

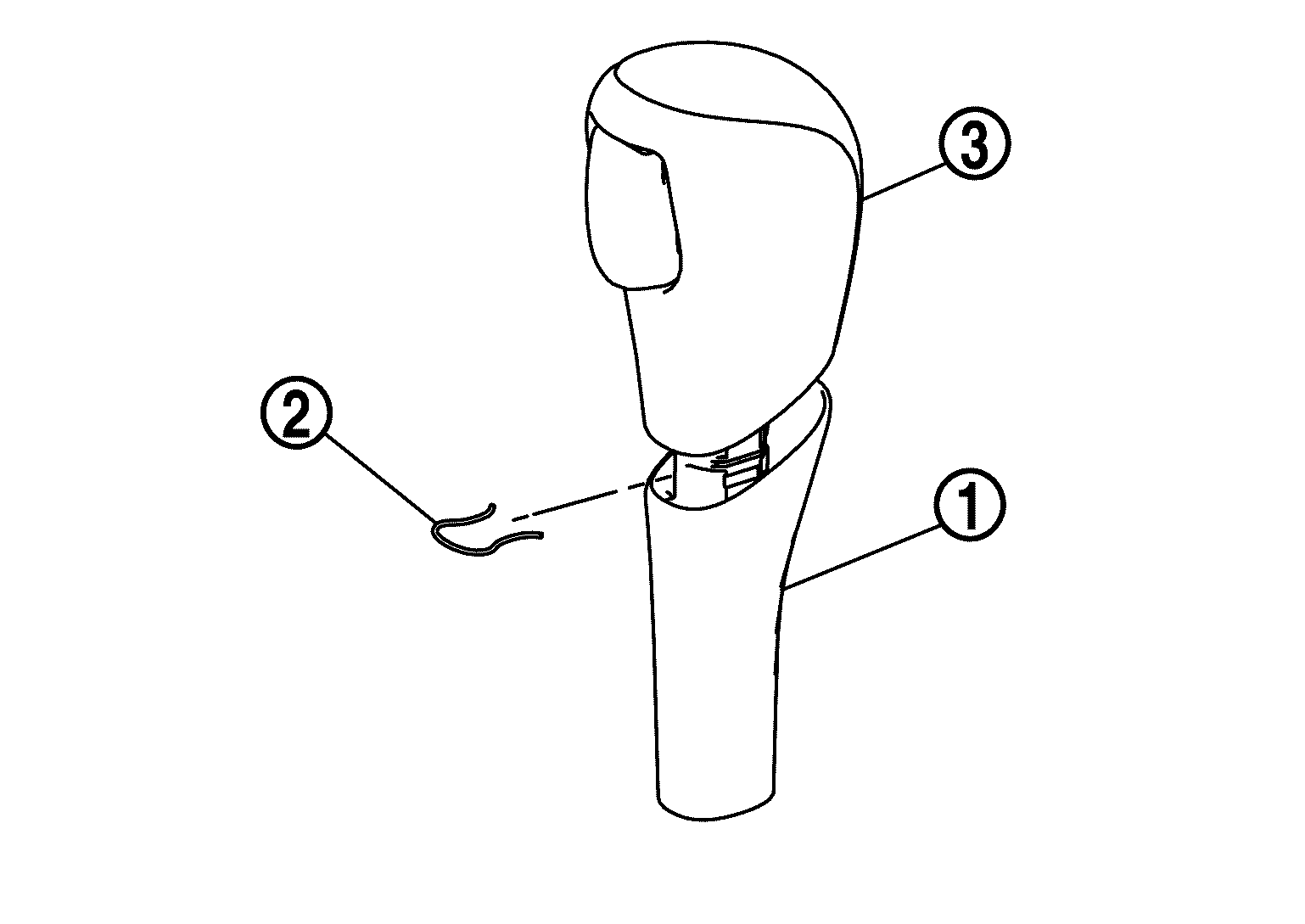

   • CVT shift selector knob:
     • Slide the knob cover (1) down.

       Courtesy of NISSAN

     • Pull out the lock pin (2).
     • Pull the shift selector knob (3) and knob cover upwards to remove.

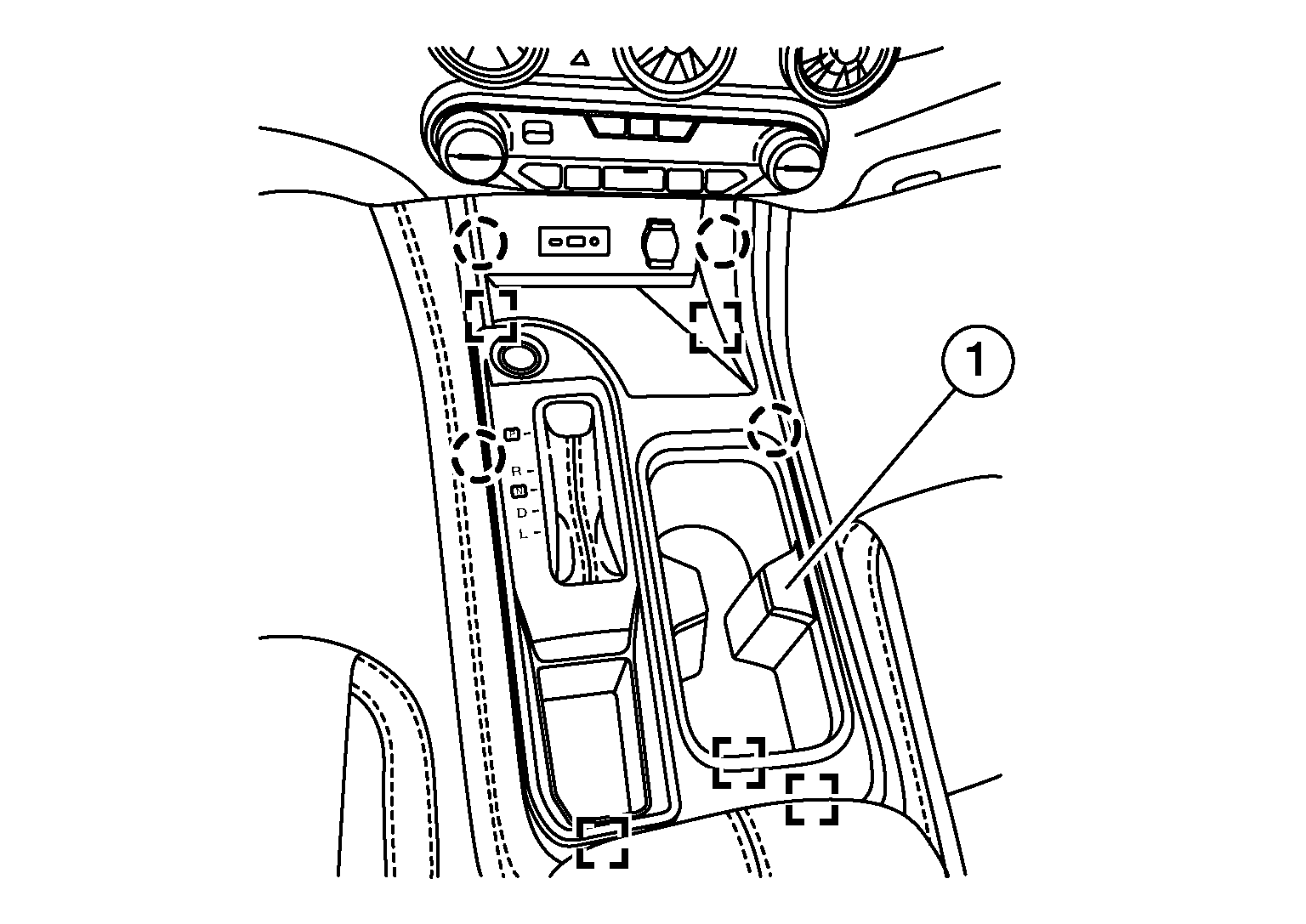

     • Using a suitable tool, release clips and pawls.

       Courtesy of NISSAN

       : Pawl : Metal clip

   • M/T shift selector knob:

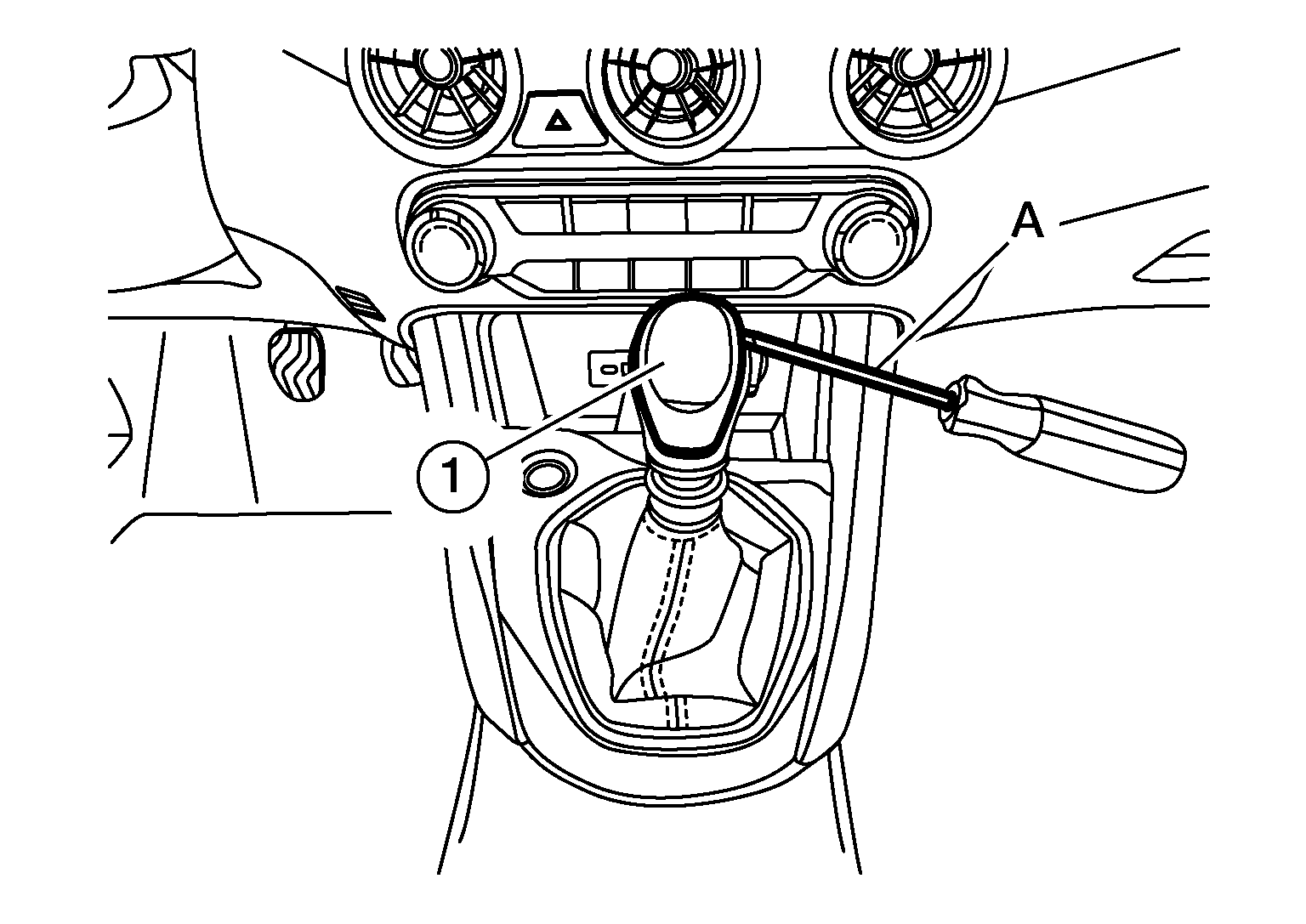

     • Using suitable tool (A), remove shift knob finisher (1).

       Courtesy of NISSAN

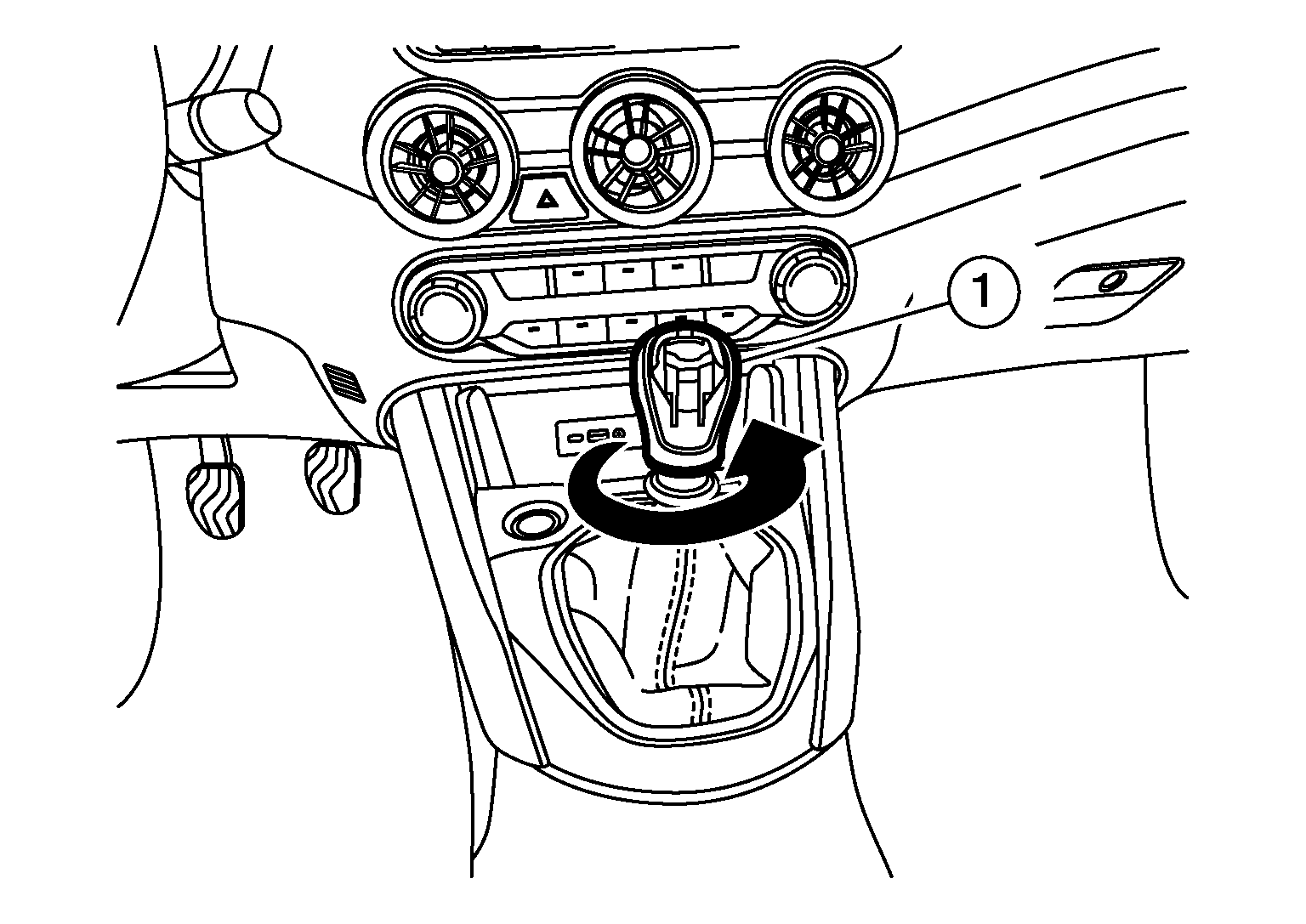

     • Remove shift knob (1) as shown, below.

       Courtesy of NISSAN

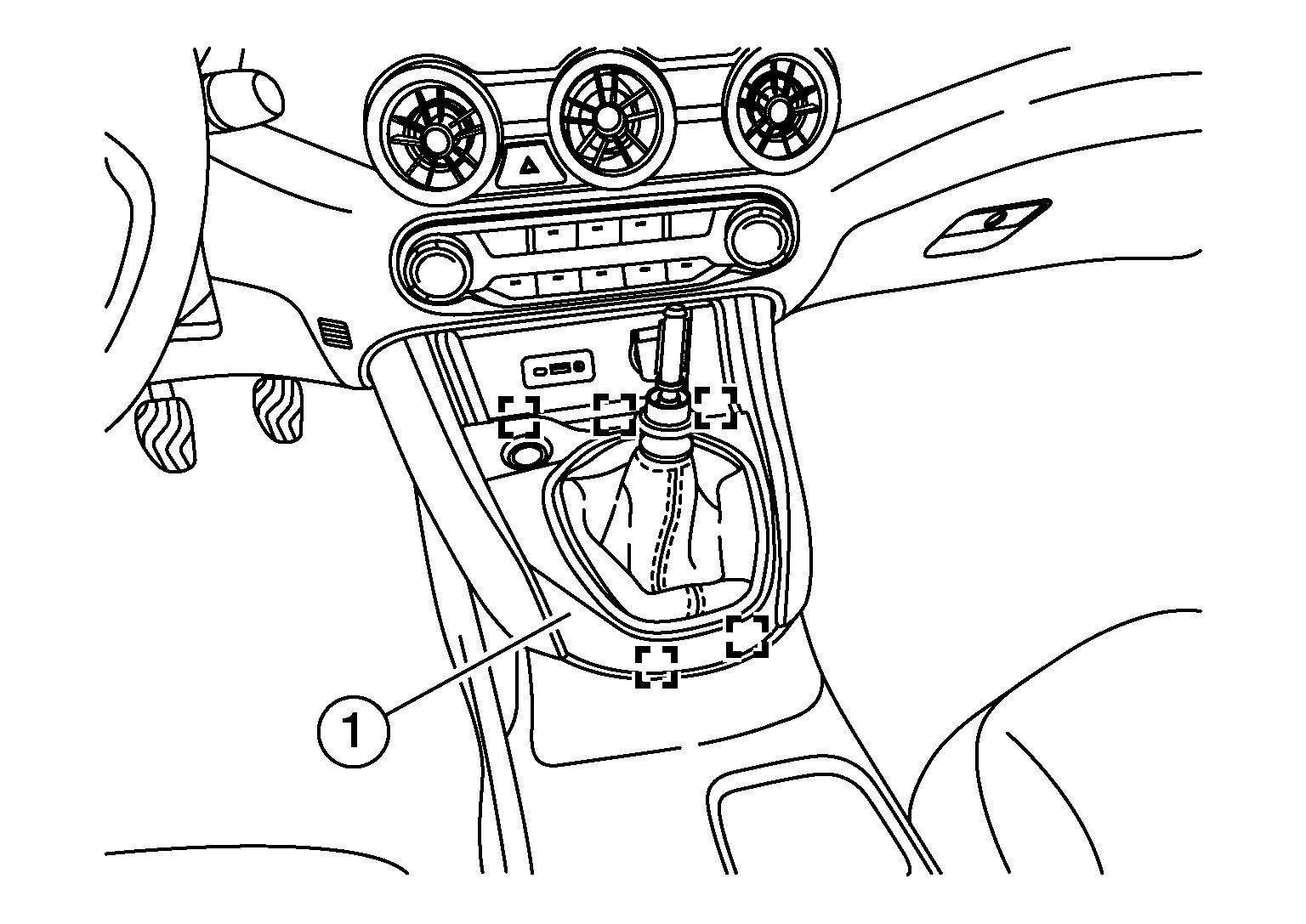

     • Using a suitable tool, release clips of shift selector finisher (1).

       Courtesy of NISSAN

       : Metal clip

2. Remove shift selector finisher.

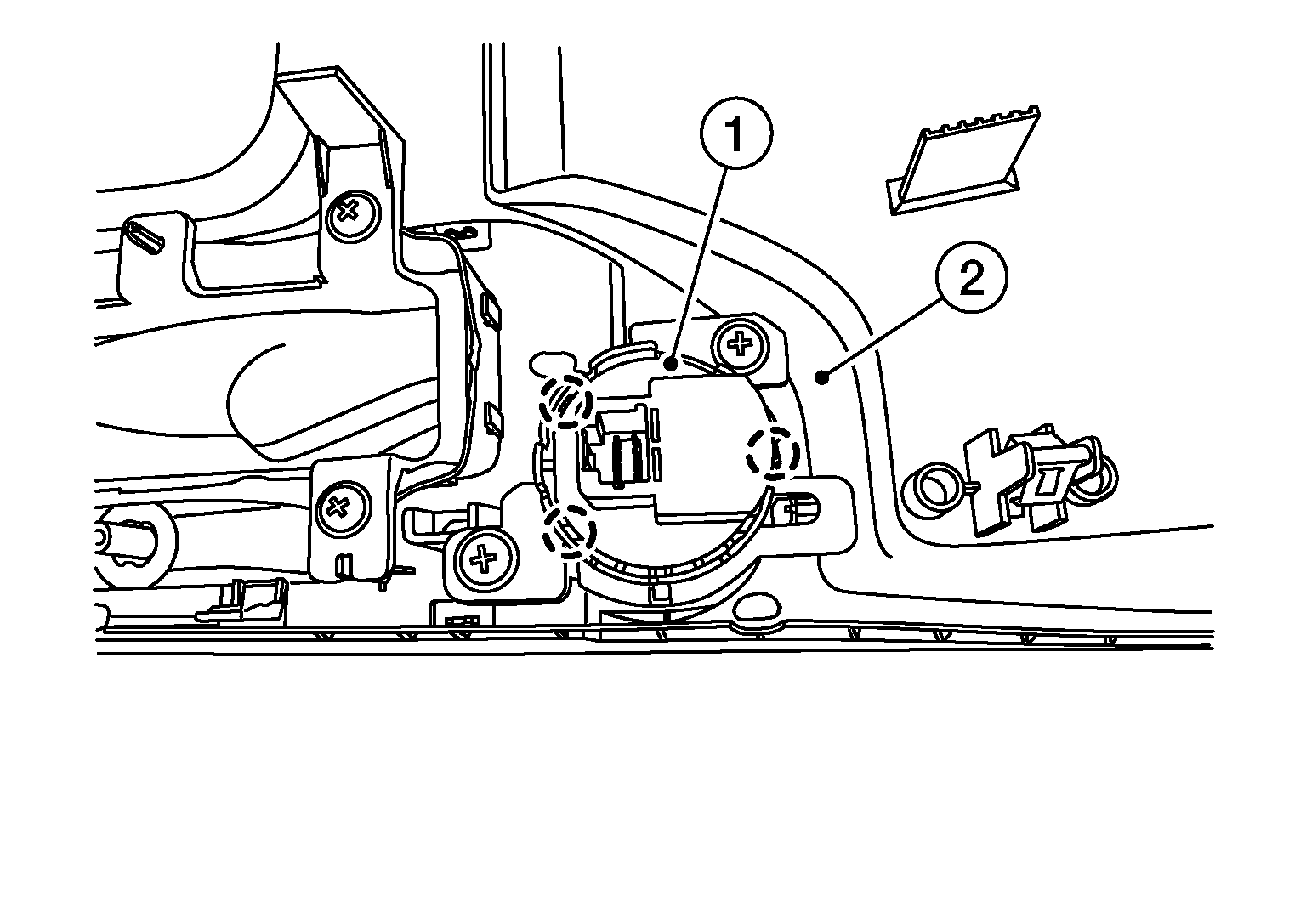

3. Using a suitable tool release pawls and remove push-button ignition switch (1) from shift selector finisher (2).

   Courtesy of NISSAN

   : Pawl

   NOTE: CVT shown; M/T similar

INSTALLATION

Installation is in the reverse order of removal.
