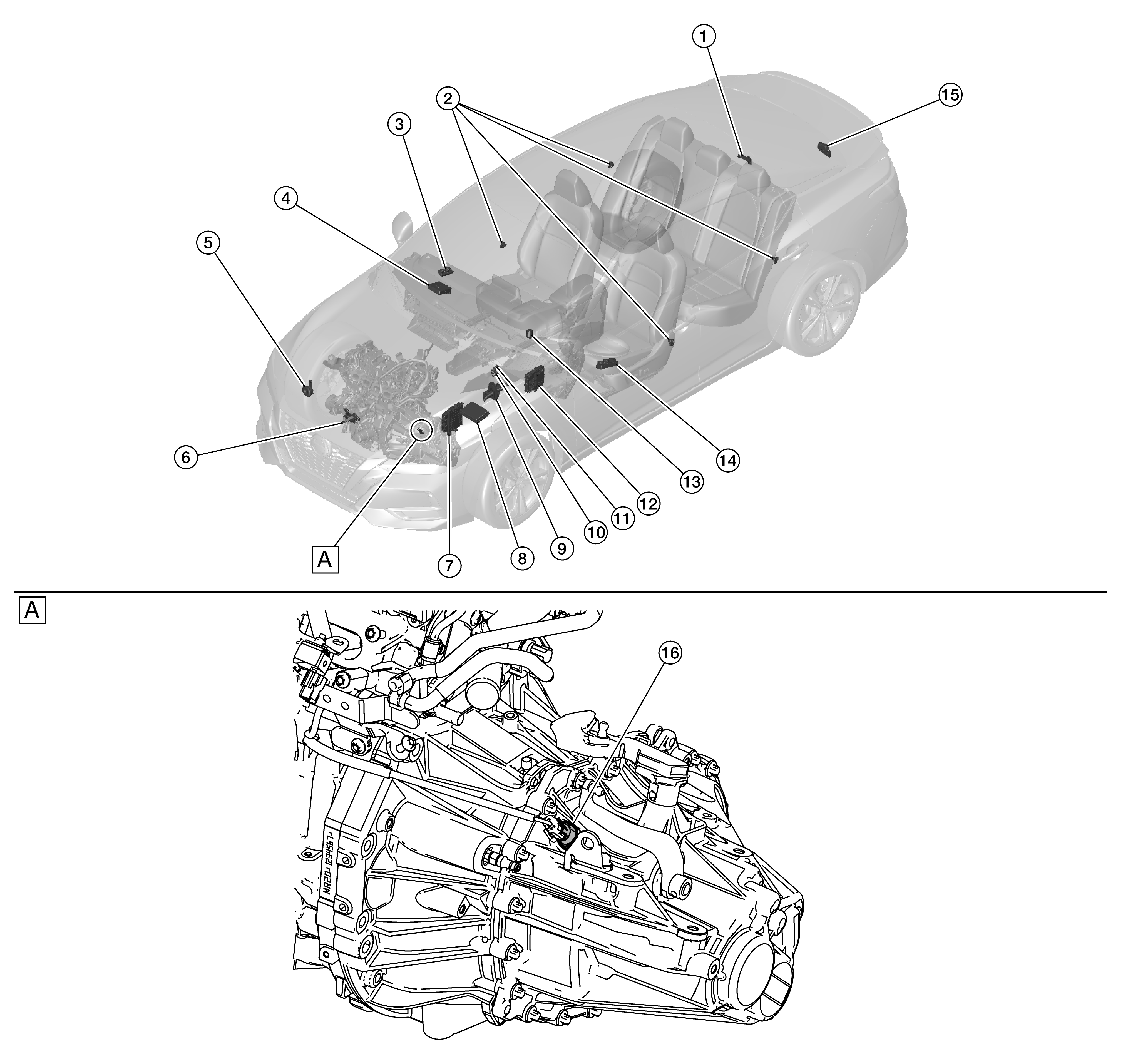

| 1. |
Inside key antenna (trunk room) |
Inside key antenna (trunk room) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the Intelligent Key unit. Refer to Inside Key Antenna (trunk room)
for detailed component location. |
| 2. |
Door switches |
Door switch detects door open/close condition and then transmits ON/OFF signal to BCM. Refer to Front Door Switch
or Rear Door Switch
for detailed component location. |
| 3. |
Power window and door lock/unlock switch RH |
Refer to Power window and door lock/unlock switch RH
for detailed component location. |
| 4. |
Intelligent Key unit |
Intelligent Key unit controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS) ] and VEHICLE SECURITY SYSTEM. Intelligent Key unit performs the ID verification between Intelligent Key unit and Intelligent Key when the Intelligent Key is carried into the detection area of inside key antenna, and push-button ignition switch is pressed. If the ID verification result is OK, ignition switch operation is available. Then, when the ignition switch is placed ON, Intelligent Key unit performs ID verification between Intelligent Key unit and ECM. If the ID verification result is OK, ECM can start engine. Refer to Component Location
for detailed component location. |
| 5. |
Horn (low) |
Horn is operated when the panic button on the Intelligent Key is pressed or the alarm is activated. |
| 6. |
Hood switch |
Hood switch transmits hood open/closed signal to the IPDM E/R. Refer to Hood Switch . |
| 7. |
ECM (Engine Control Module) |
Refer to Component Description
for detailed component location. |
| 8. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
IPDM E/R detects hood open/closed signal and controls horns when horn chirp is required. Refer to Component Location
for detailed component location. |
| 9. |
Clutch master cylinder (clutch switch) |
Clutch master cylinder (clutch switch) detects that the clutch pedal is depressed, and transmits the signal to the BCM. |
| 10. |
Stop lamp switch |
Stop lamp switch detects that the brake pedal is depressed, and transmits the signal to the BCM. Refer to Stop lamp switch
for detailed component location. |
| 11. |
Brake pedal position switch |
Stop lamp switch detects that the brake pedal is depressed, and transmits the signal to the BCM. |
| 12. |
BCM (Body Control Module) |
BCM controls the door lock actuators. Refer to Component Location
for detailed component location |
| 13. |
Push-button ignition switch/NATS antenna |
Push-button ignition switch has NATS antenna and push switch inside which detects that push-button ignition switch is pressed, and then transmits ON/OFF signal to Intelligent Key unit. Intelligent Key unit changes the ignition switch position with the operation of push-button ignition switch. Intelligent Key unit maintains the ignition switch position status while push-button ignition switch is not operated. Refer to NATS Antenna . |
| 14. |
Main power window and door lock/unlock switch |
Door lock and unlock switch is integrated into the power window main switch. Door lock and unlock switch transmits door lock/unlock operation signal to BCM. Refer to Main power window and door lock/unlock switch
for detailed component location. |
| 15. |
Trunk lid opener assembly (trunk lid lamp switch) |
Trunk lid opener assembly (trunk lid lamp switch) detects open/close condition and then transmits ON/OFF signal to BCM. |
| 16. |
Park/neutral position (PNP) switch |
Park/neutral position (PNP) switch detects that the Transmission is in the neutral position, and transmits the signal to the BCM. |
