Removal and Installation

REMOVAL

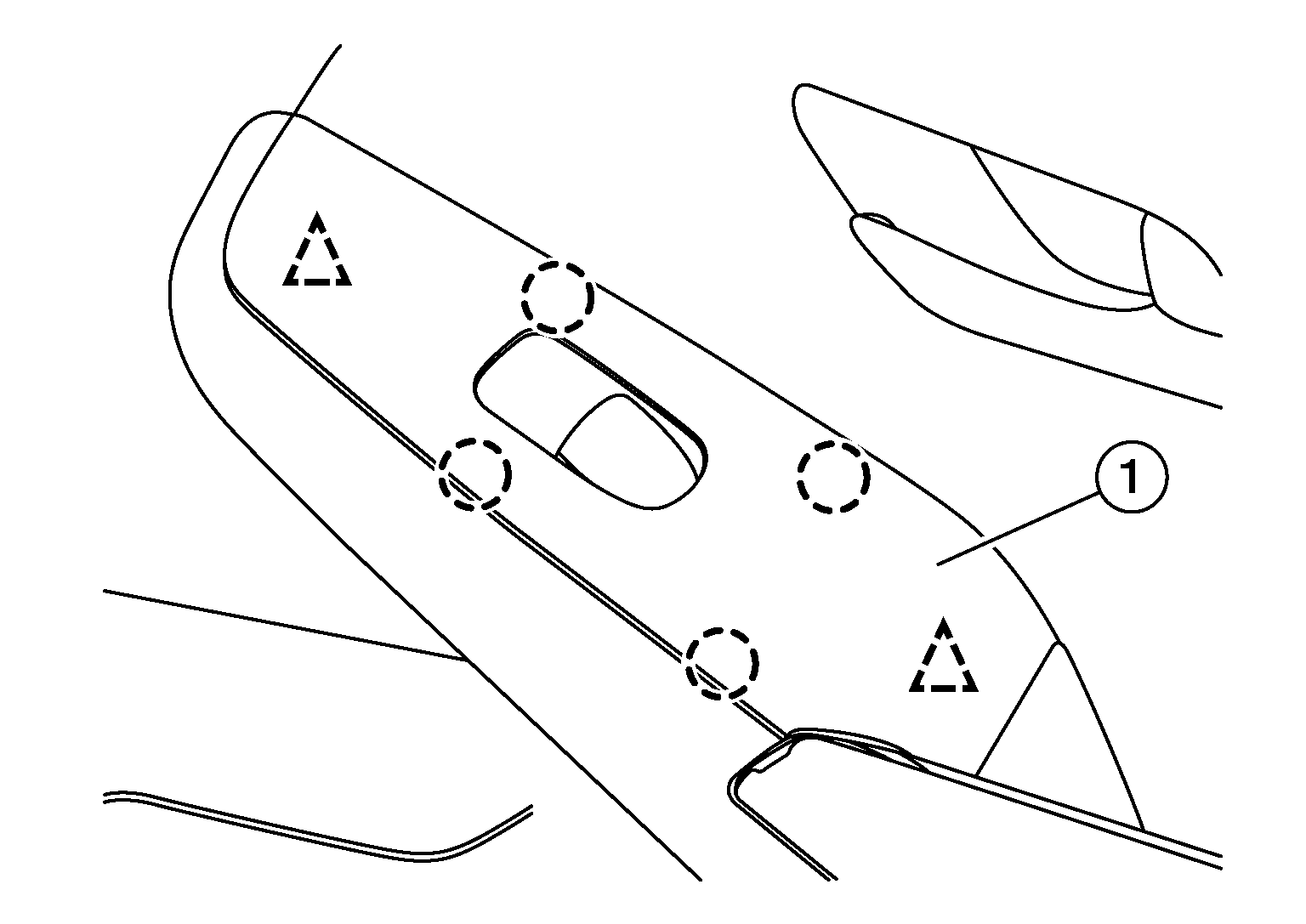

1. Using a suitable tool, release clips and pawls and remove rear power window switch finisher (1).

   Courtesy of NISSAN

   NOTE: RH shown; LH similar

   	: Pawl
   	: Clip

2. Disconnect the harness connector from the rear power window switch.

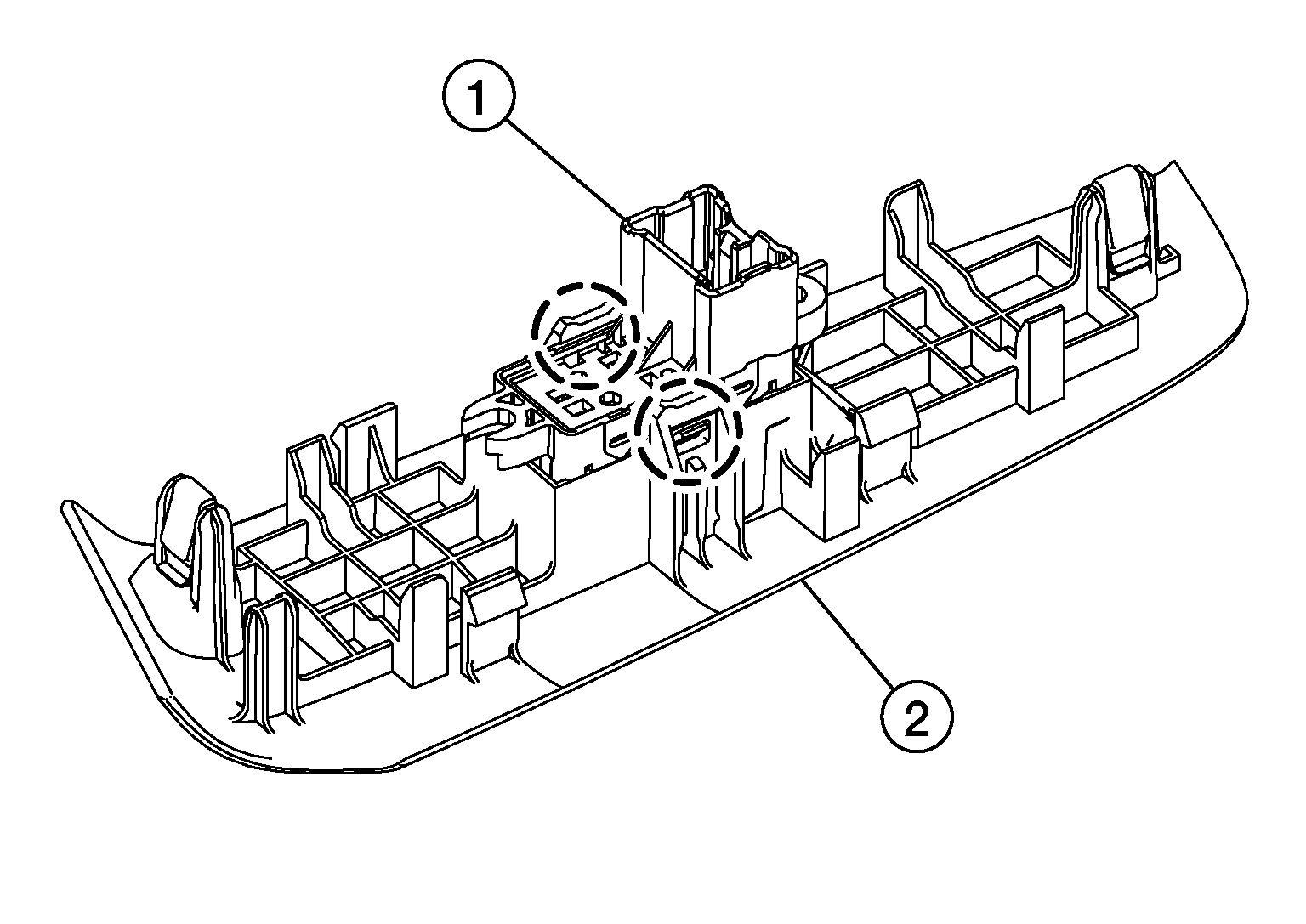

3. Using a suitable tool, release the pawls and remove the rear power window switch (1) from the rear power window switch finisher (2).

   Courtesy of NISSAN

   NOTE: RH shown; LH similar

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.
