Exploded View

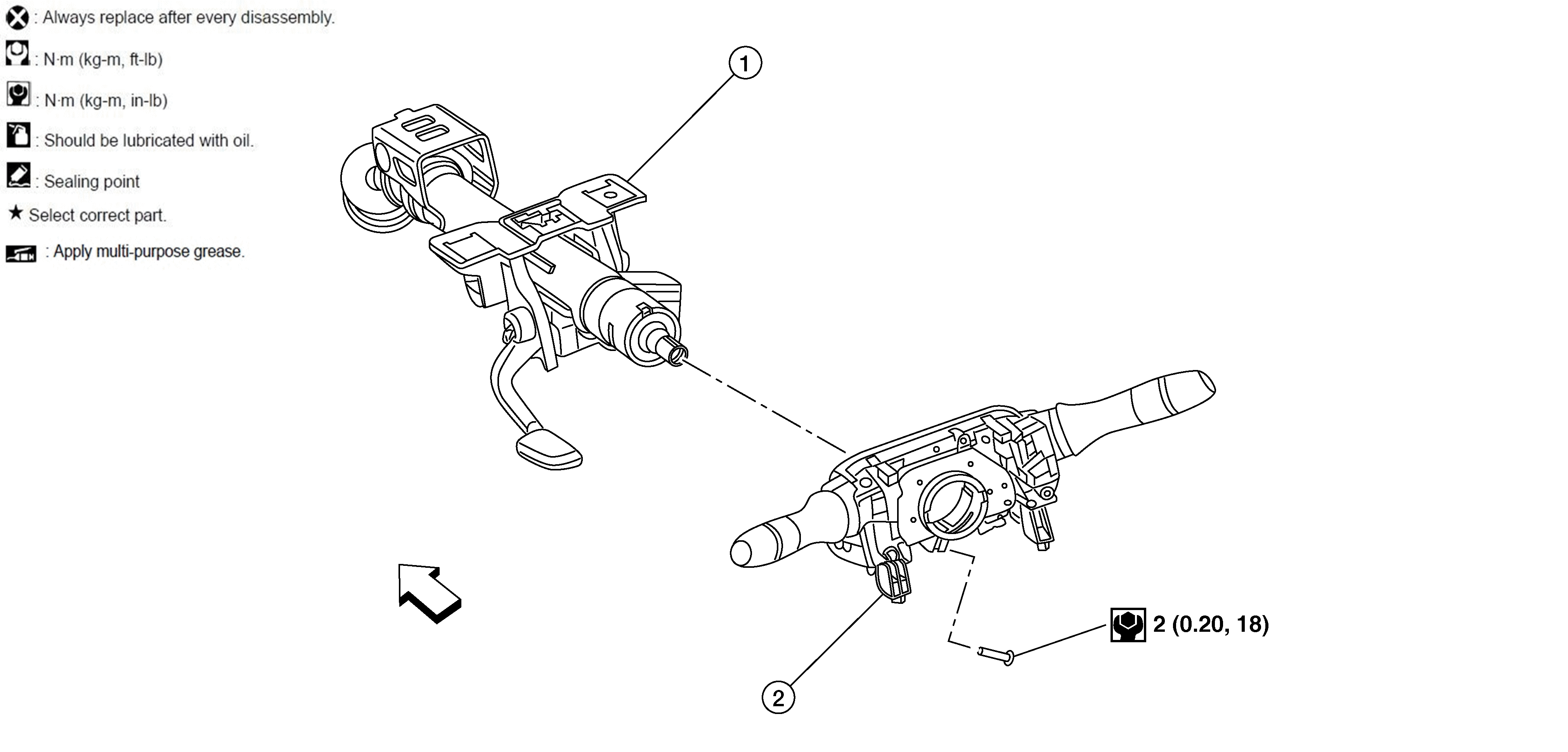

Fig 1: Combination Switch With Torque Specifications
GNSDB47037Courtesy of NISSAN
1. Steering column 2. Combination switch SYMBOL Front
NOTE: SYMBOL Shown with the steering wheel removed for clarity only.
