Component Inspection

1. 1. Turn ignition switch OFF.
   2. Loosen the fixing bolt of the sensor.
   3. Disconnect crankshaft position sensor (POS) harness connector.
   4. Remove the sensor.

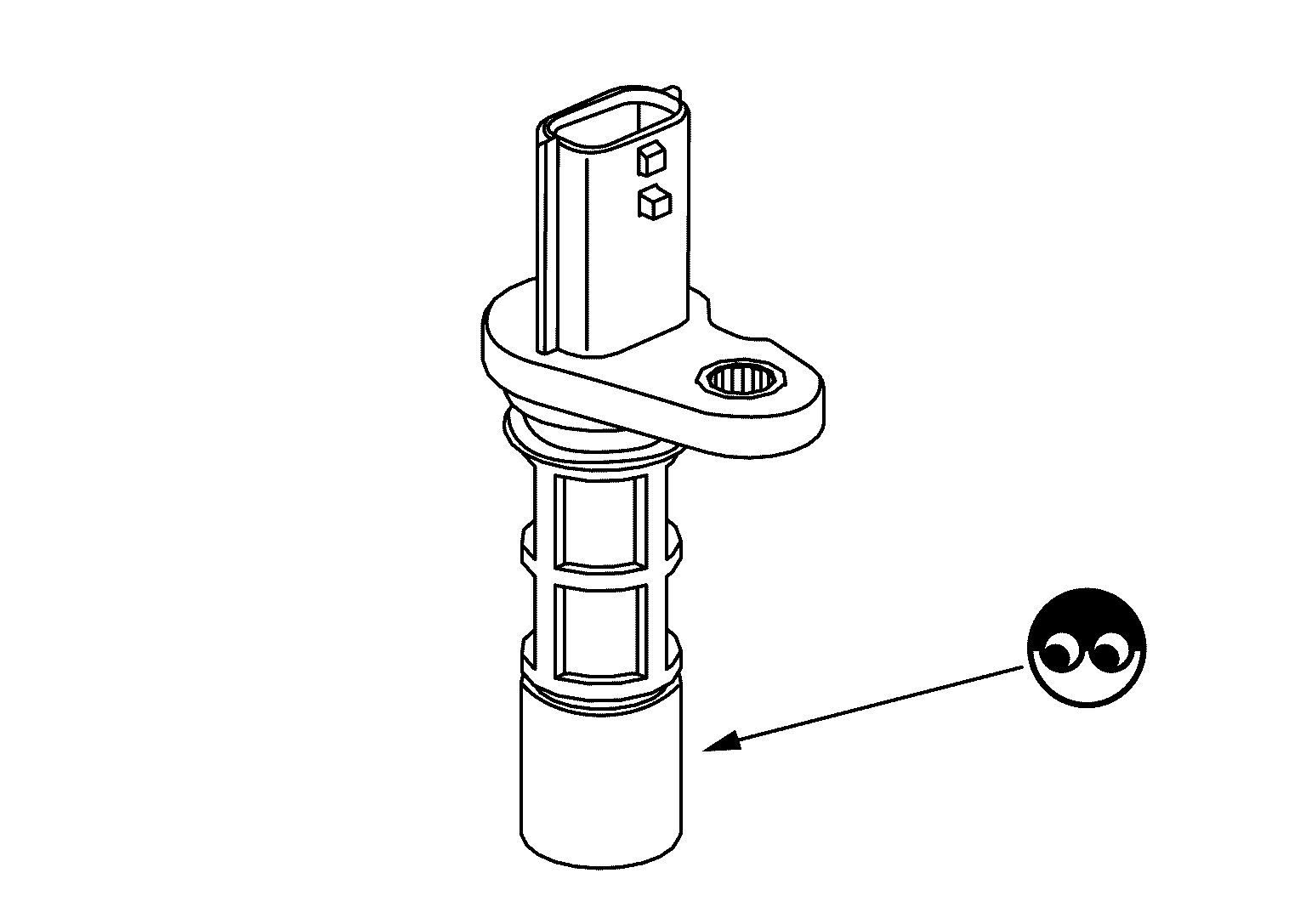

   5. Visually check the sensor for chipping.

      Courtesy of NISSAN

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Replace crankshaft position sensor (POS). Refer to Exploded View .

1. Check resistance between crankshaft position sensor (POS) terminals as follows.

   CKP sensor 1		Condition		Resistance
   Terminal
   1	2	Temperature	25°C (77°F)	Except 0 Ω
   	3
   2	3

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Replace crankshaft position sensor (POS). Refer to Exploded View .
