Component Inspection

1. 1. Turn ignition switch OFF.
   2. Remove high pressure fuel pump relay. Refer to Component Location .

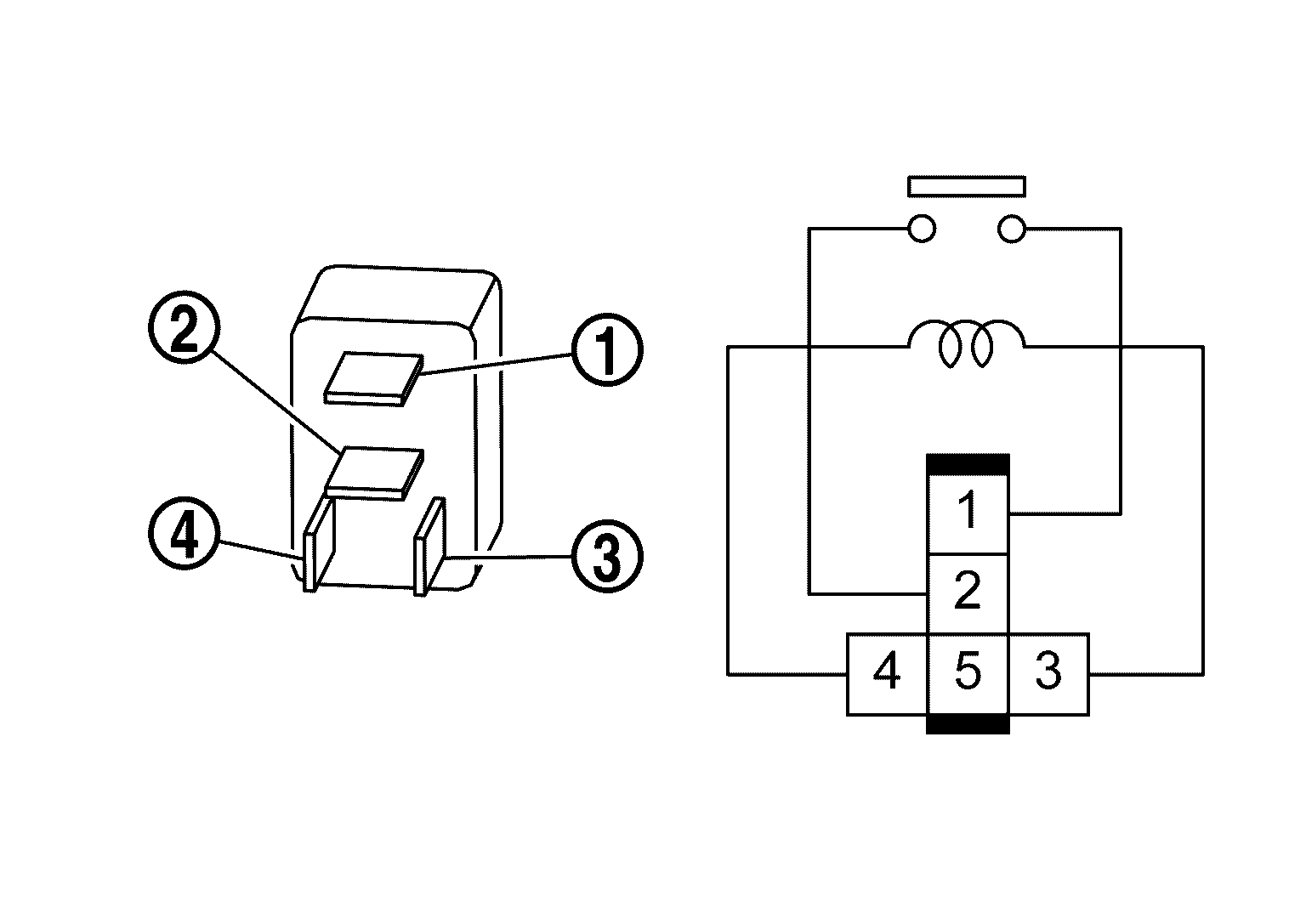

   3. Check the continuity between high pressure fuel pump relay terminals.

      Courtesy of NISSAN

      High pressure fuel pump relay		Condition	Continuity
      +	-
      Terminal
      1	2	12 V direct current supply between terminals 3 and 4	Existed
      		No current supply	Not existed

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Replace high pressure fuel pump relay. Refer to Component Location .
