Component Function Check

1. With CONSULT:
   1. Start engine.
   2. Select "FUEL PRES SEN V" in "DATA MONITOR" mode of "ENGINE" using CONSULT and check the indication as per the following conditions.

      Monitor item	Condition	Indication
      FUEL PRES SEN V	At idle	0.820 - 1, 140 V
      	Revving engine up to 4, 000 RPM quickly.	0.820 - 2, 900 V

2. Without CONSULT
   1. Start engine.
   2. Check the voltage between ECM terminals as per the following conditions.

      ECM			Condition	Voltage
      Connector	+	-
      	Terminal

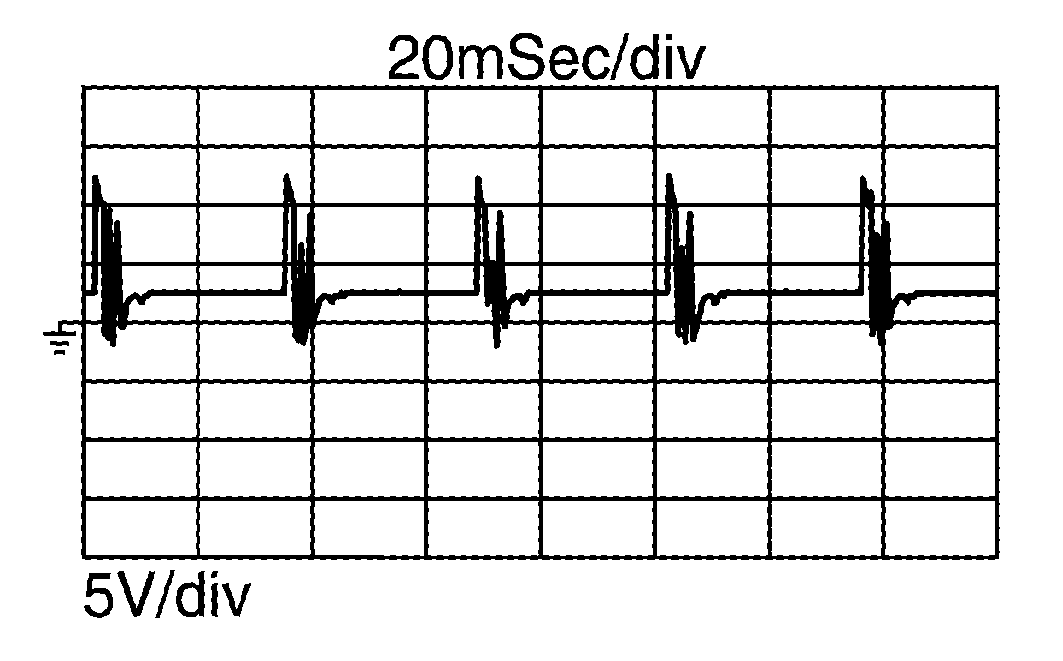

      F25	67	68	[Engine is running] Warm-up condition Idle speed NOTE: The pulse cycle changes depending on RPM at idle.	Courtesy of NISSAN

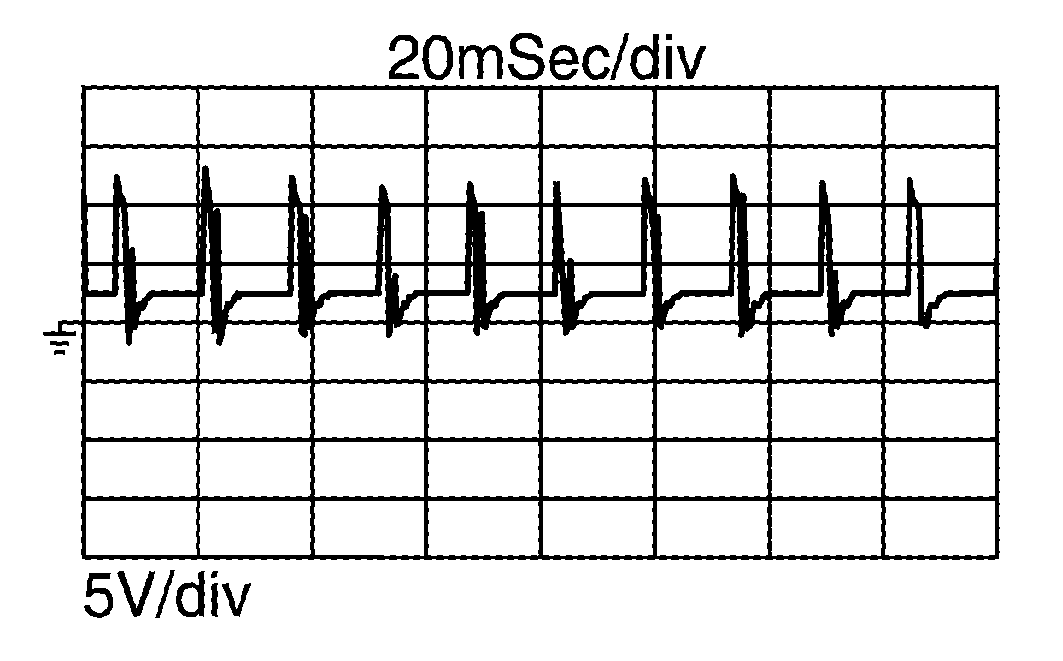

      			[Engine is running] Warm-up condition Engine speed: 2, 000 RPM	Courtesy of NISSAN

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Refer to Diagnosis Procedure .
