Flash Code Index
WARNING LAMP FLASH CODE CHART
How to read flash codes
- Put the vehicle in Diagnosis Mode. Refer to Trouble Diagnosis without CONSULT .
- All codes are proceeded by a seven second "holding" flash.
- Identify how many primary flashes are displayed as well as the length of each primary flash.
- Refer to the tables and examples below to determine which SRS subsystem the code belongs to.
- Count the short secondary flashes that follow the primary flashes.
- Match the correct flashing pattern to the malfunctioning component and perform the Diagnosis Procedure.
Refer to the illustrations below for an example of each flashing pattern.
Front subsystem
| Flashes (Primary) | Flash Length (seconds) | Flashes (Secondary) | Malfunctioning Component or Circuit | Reference |
|---|---|---|---|---|

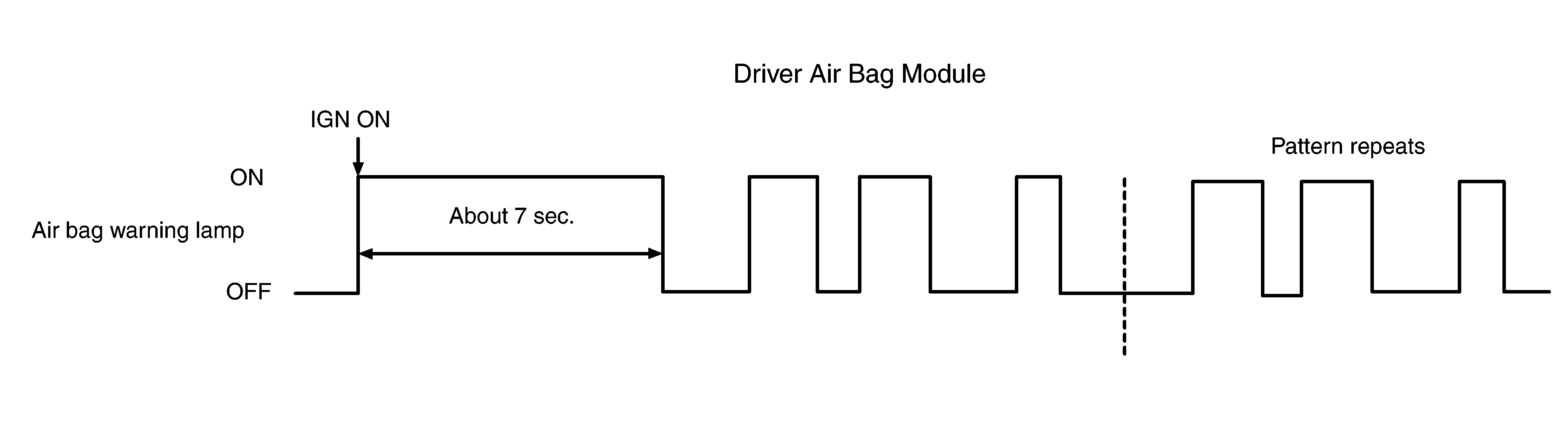

| 2 | 1.5 | 1 | Driver air bag module | DTC Index (B0001)DTC Index (B0002) |
| 2 | Front passenger air bag module | DTC Index (B0010)DTC Index (B0011) | ||
| 3 | Front LH seat belt pre-tensioner (shoulder) | DTC Index (B1029) | ||
| 4 | Front RH seat belt pre-tensioner (shoulder) | DTC Index (B102A) | ||
| 5 | Front LH seat belt pre-tensioner (lap) | DTC Index (B1001) | ||
| 6 | Front RH seat belt pre-tensioner (lap) | DTC Index (B1002) |
Side subsystem
| Flashes (Primary) | Flash Length (seconds) | Flashes (Secondary) | Malfunctioning Component or Circuit | Reference |
|---|---|---|---|---|

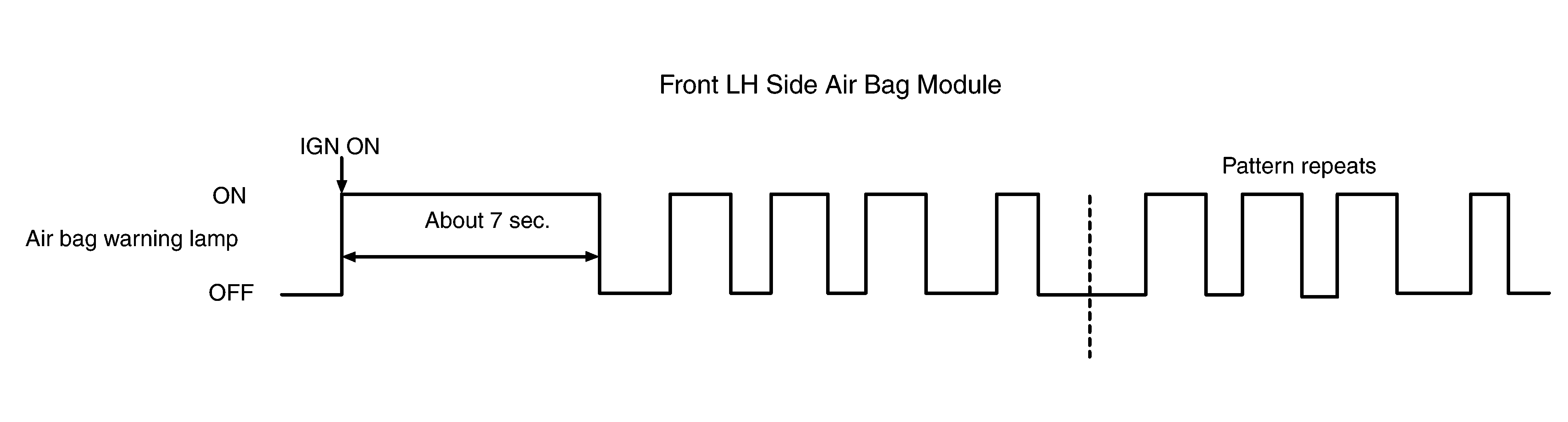

| 3 | 1.5 | 1 | Front LH side air bag module | DTC Index (B0020) |
| 2 | Front RH side air bag module | DTC Index (B0028) | ||
| 3 | LH side curtain air bag module | DTC Index (B0021)DTC Index (B0022) | ||
| 4 | RH side curtain air bag module | DTC Index (B0029)DTC Index (B002A) |
Air bag subsystem
| Flashes (Primary) | Flash Length (seconds) | Flashes (Secondary) | Malfunctioning Component or Circuit | Reference |
|---|---|---|---|---|
| 1 | 3 | 1 | Collision detection | DTC Index (B12B5) |

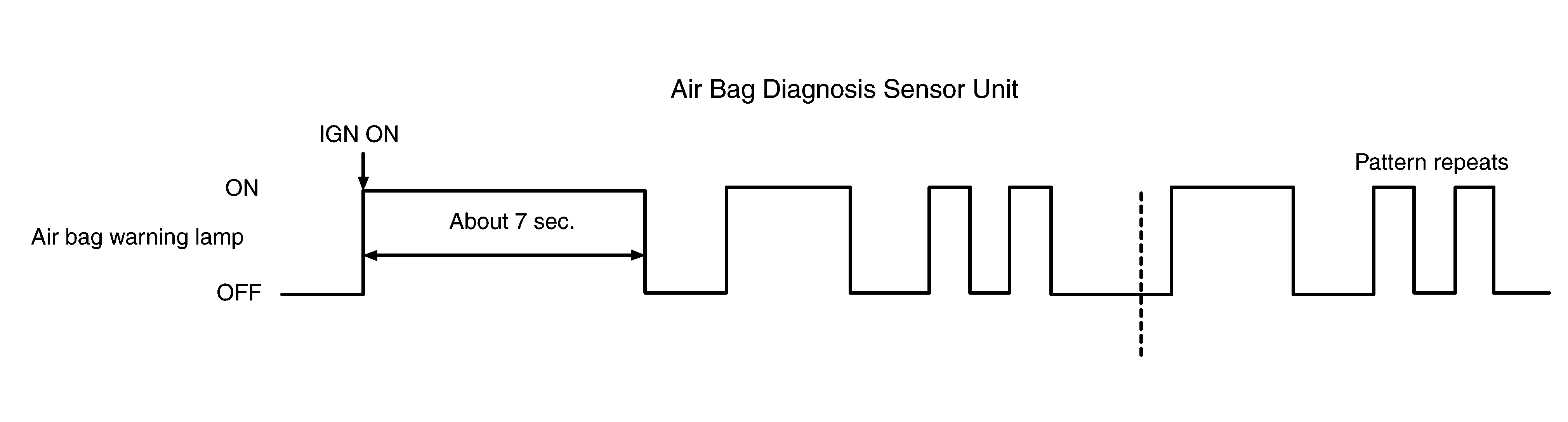

| 2 | Air bag diagnosis sensor unit | DTC Index (B1000) | ||
| 3 | Front passenger air bag OFF indicator | DTC Index (B00D5) | ||
| 4 | Occupant classification system | DTC Index (B00A0)DTC Index (B1019) |
Sensor subsystem
| Flashes (Primary) | Flash Length (seconds) | Flashes (Secondary) | Malfunctioning Component or Circuit | Reference |
|---|---|---|---|---|

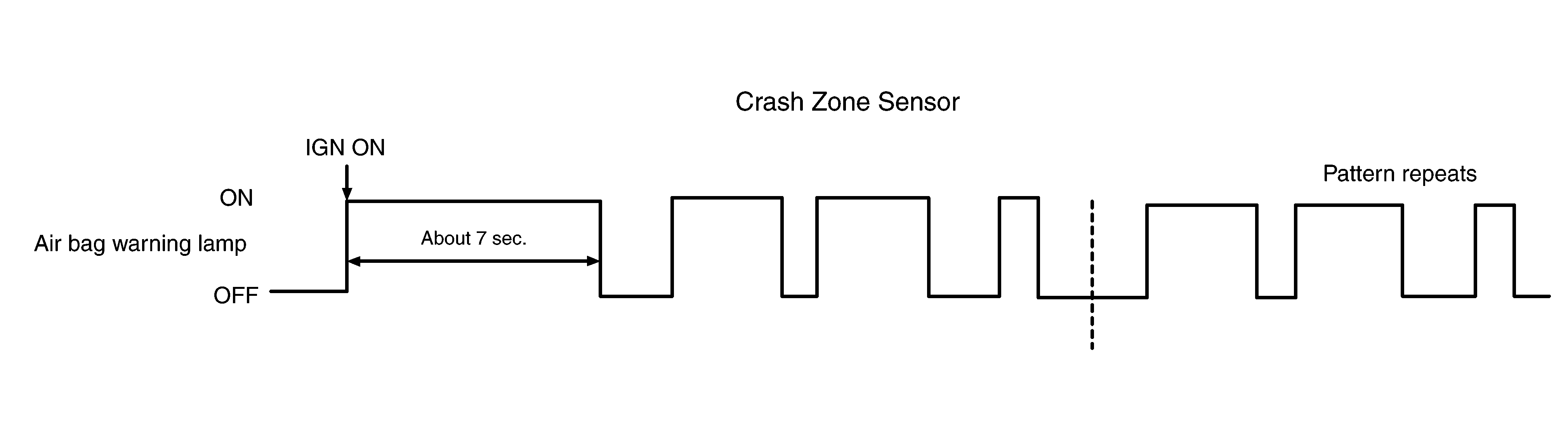

| 2 | 3 | 1 | Crash zone sensor | DTC Index (B0094) |
| 2 | Front side air bag satellite sensor LH | DTC Index (B0092) | ||
| 3 | Front side air bag satellite sensor RH | DTC Index (B0097) | ||
| 4 | Rear side air bag satellite sensor LH | DTC Index (B0093) | ||
| 5 | Rear side air bag satellite sensor RH | DTC Index (B0098) | ||
| 6 | Front door satellite sensor LH | DTC Index (B0091) | ||
| 7 | Front door satellite sensor RH | DTC Index (B0096) | ||
| 8 | Front seat belt buckle switch LH | DTC Index (B0050)DTC Index (B2C21)DTC Index (B2F60) | ||
| 9 | Front seat belt buckle switch RH | DTC Index (B0052) |
