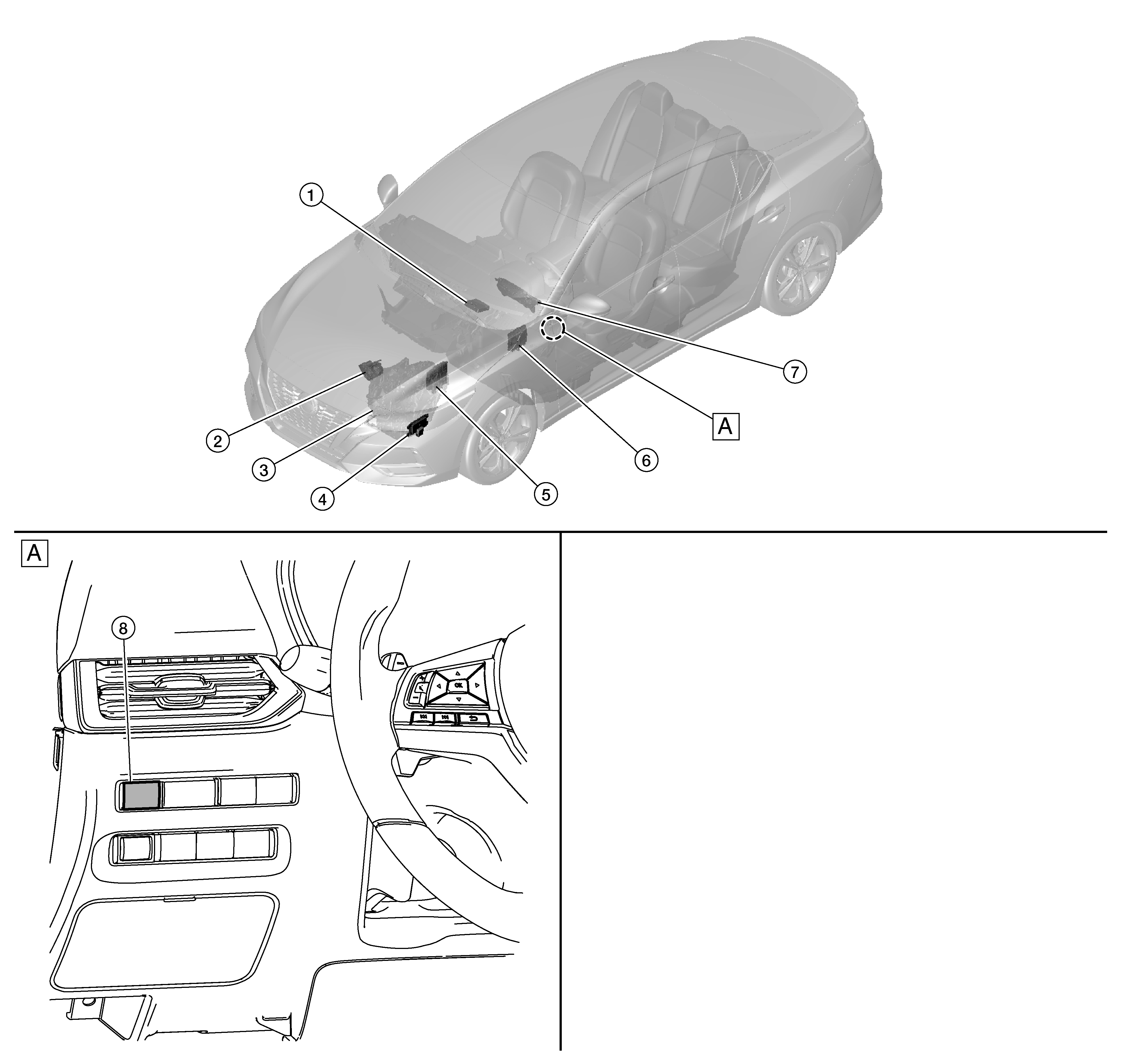

| 1. |
A/C auto amp. (Auto A/C) |
The A/C auto amp. receives the ECO mode signal from the BCM via CAN communication. Refer to Component Location
(Auto A/C), Component Location
(Manual A/C) for detailed component location. |
| A/C amp. (Manual A/C) |
| 2. |
Electric throttle control actuator |
Refer to Component Description
for detailed component location. |
| 3. |
Trans axle assembly |
Refer to Component Location
for detailed component location. |
| 4. |
TCM (Transmission Control Module) |
The TCM receives the ECO mode signal from the BCM via CAN communication. Refer to Component Location
for detailed component location. |
| 5. |
ECM (Engine Control Module) |
The ECM receives the ECO mode signal from the BCM via CAN communication. Refer to Component Location
for detailed component location. |
| 6. |
BCM (Body Control Module) |
- The BCM transmits the ECO mode indicator signal to the combination meter via CAN communication.
- The BCM transmits the ECO mode signal to the ECM, TCM and A/C auto amp. via CAN communication.
Refer to Component Location
for detailed component location. |
| 7. |
Combination meter |
The combination meter receives the ECO mode indicator signal via CAN communication from the BCM. Refer to Component Location
(Type A) or Component Location
(Type B) for detailed component location. |
| 8. |
ECO mode switch |
Refer to ECO Mode Switch . |
