Component Inspection

1. 1. Turn ignition switch OFF.
   2. Remove fuel injector relays. Refer to Component Location .

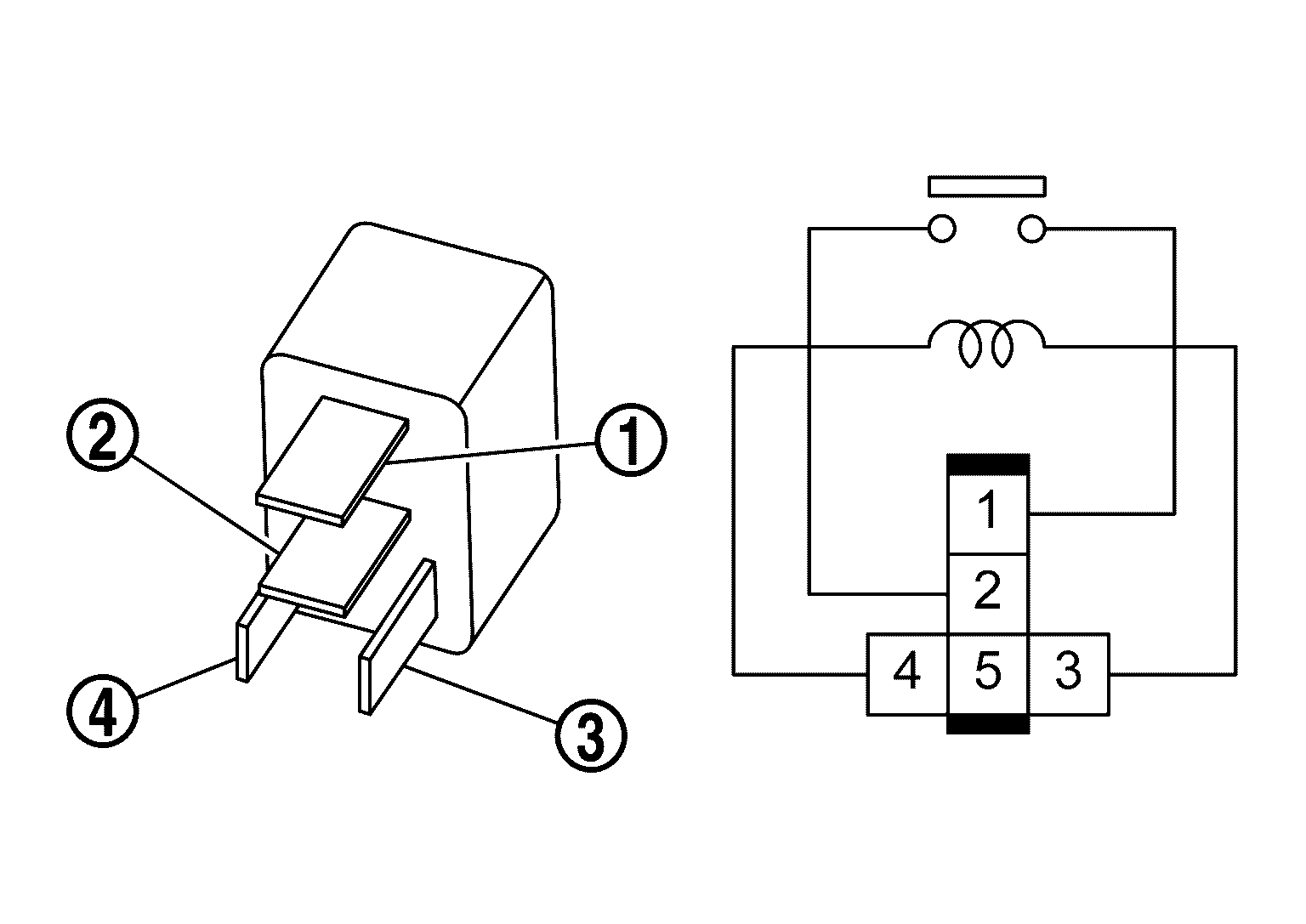

   3. Check the continuity between fuel injector relay terminals as per the following conditions. Direct Fuel Injector Relay 1

      Courtesy of NISSAN

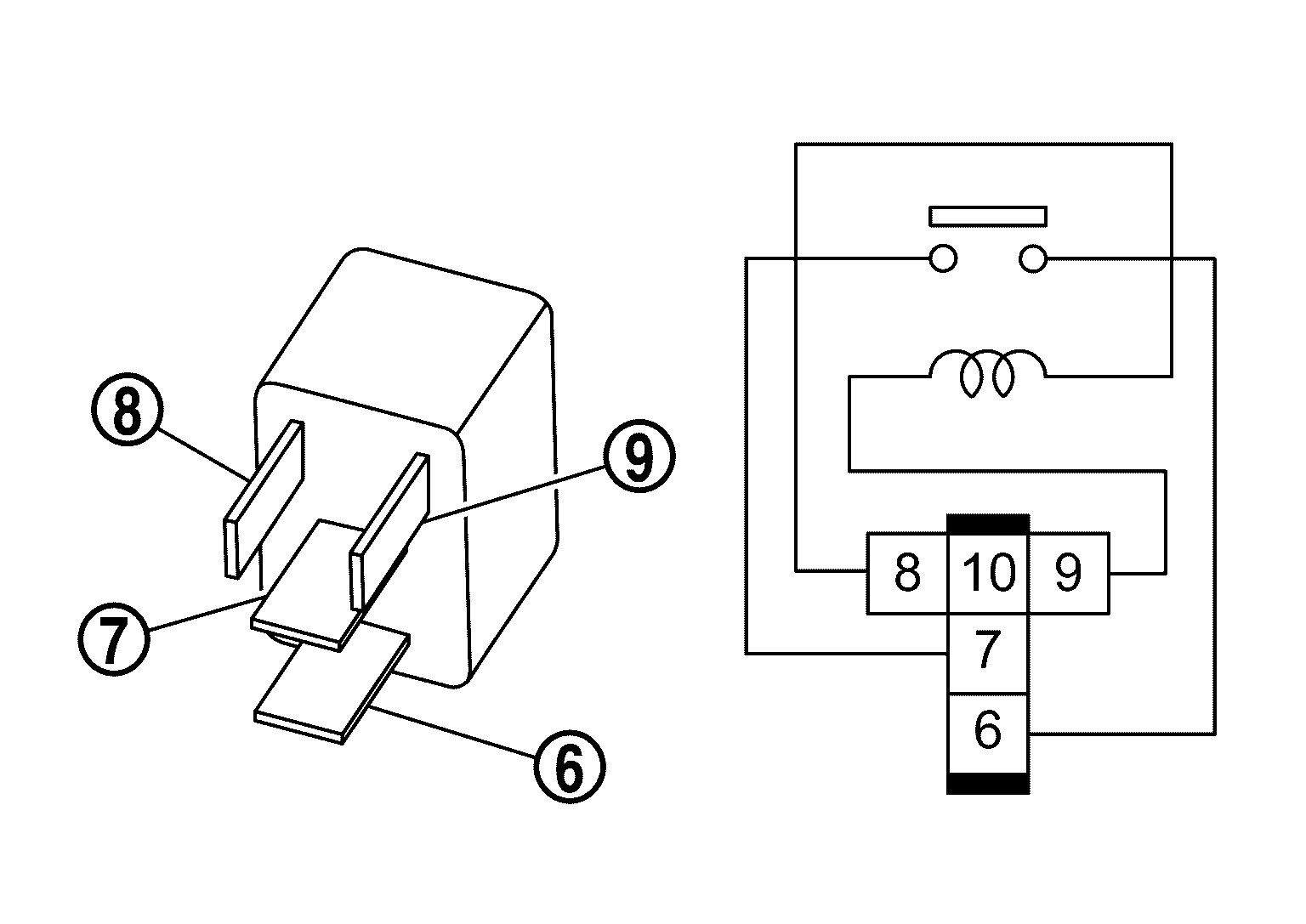

      Direct Fuel Injector Relay 2

      Courtesy of NISSAN

      Fuel injector relay		Condition	Continuity
      +	-
      Terminal
      1	2	12 V direct current supply between terminals 3 and 4	Existed
      		No current supply	Not existed
      6	7	12 V direct current supply between terminals 8 and 9	Existed
      		No current supply	Not existed

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Replace fuel injector relay. Refer to Component Location .
