Reference Value

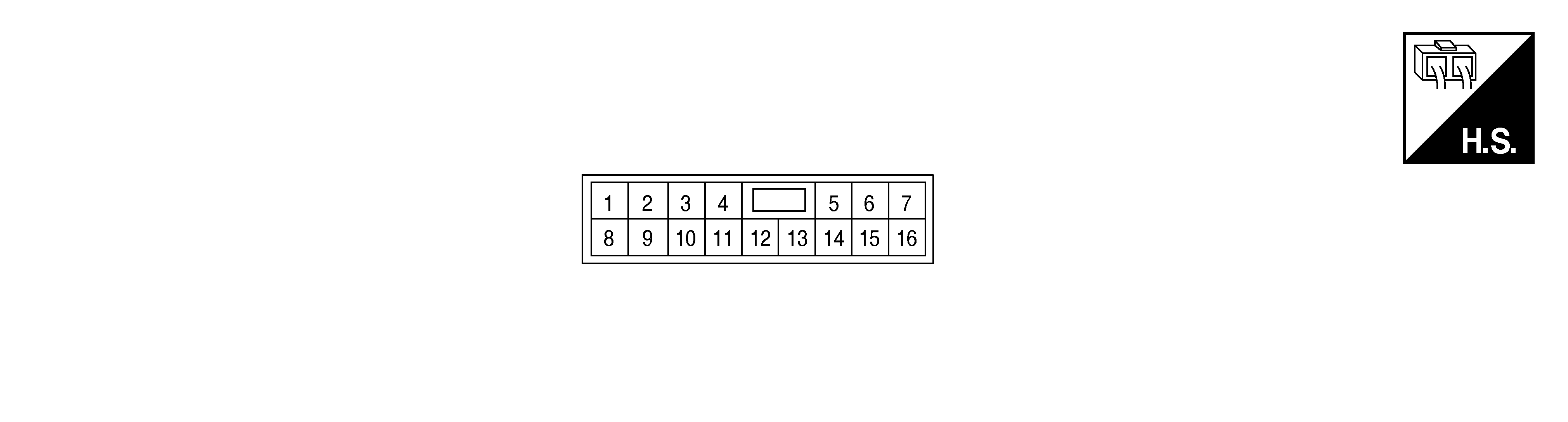

TERMINAL LAYOUT

Courtesy of NISSAN NORTH AMERICA, INC.

PHYSICAL VALUES

Terminal No. (Wire color)		Description		Condition		Voltage (Approx.)
+	-	Signal name	Input/Output	Condition		Voltage (Approx.)
1 (L)	Ground	Rear power window motor LH DOWN signal	Output	Main power window and door lock/unlock switch (rear LH switch)	Operate (DOWN)	Battery voltage
1 (L)	Ground	Rear power window motor LH DOWN signal	Output		Other than above	0 V
2 (BR)	Ground	Rear power window motor LH UP signal	Output	Main power window and door lock/unlock switch (rear LH switch)	Operate (UP)	Battery voltage
2 (BR)	Ground	Rear power window motor LH UP signal	Output		Other than above	0 V
3 (P)	Ground	Front power window motor LH DOWN signal	Output	Main power window and door lock/unlock switch (Front LH switch)	Operate (DOWN)	0 V
					Operate (AUTO)	0 V
					Other than above	Battery voltage
6 (BR)	Ground	Rear power window motor RH DOWN signal	Output	Main power window and door lock/unlock switch (rear RH switch)	Operate (DOWN)	Battery voltage
6 (BR)	Ground	Rear power window motor RH DOWN signal	Output		Other than above	0 V
7 (P)	Ground	Rear power window motor RH UP signal	Output	Main power window and door lock/unlock switch (rear RH switch)	Operate (UP)	Battery voltage
7 (P)	Ground	Rear power window motor RH UP signal	Output		Other than above	0 V
8 (Y)	Ground	Door lock signal	Output	Door lock switch in main power window and door lock/unlock switch	Pressed	0 V
8 (Y)	Ground	Door lock signal	Output		Not pressed	Battery voltage
9 (BR)	Ground	Door unlock signal	Output	Door lock switch in main power window and door lock/unlock switch	Pressed	0 V
9 (BR)	Ground	Door unlock signal	Output		Not pressed	Battery voltage
10 (B)	Ground	Front power window motor LH UP signal	Output	Main power window and door lock/unlock switch (Front LH switch)	Operate (UP)	0 V
					Operate (AUTO)	0 V
					Other than above	Battery voltage
11 (R)	Ground	Ignition ON power supply 1	Input	Ignition switch ON or power window timer operates		Battery voltage
12 (V)	Ground	Ignition ON power supply 2	Input	Ignition switch ON or power window timer operates		Battery voltage
13 (B)	Ground	Ground	-	-		0 V
14 (GR)	Ground	Front power window motor RH UP signal	Output	Main power window and door lock/unlock switch (Front RH switch)	Operate (UP)	Battery voltage
14 (GR)	Ground	Front power window motor RH UP signal	Output		Other than above	0 V
15 (LG)	Ground	Front power window motor RH DOWN signal	Output	Main power window and door lock/unlock switch (Front RH switch)	Operate (DOWN)	Battery voltage
15 (LG)	Ground	Front power window motor RH DOWN signal	Output		Other than above	0 V
