Removal and Installation

REMOVAL

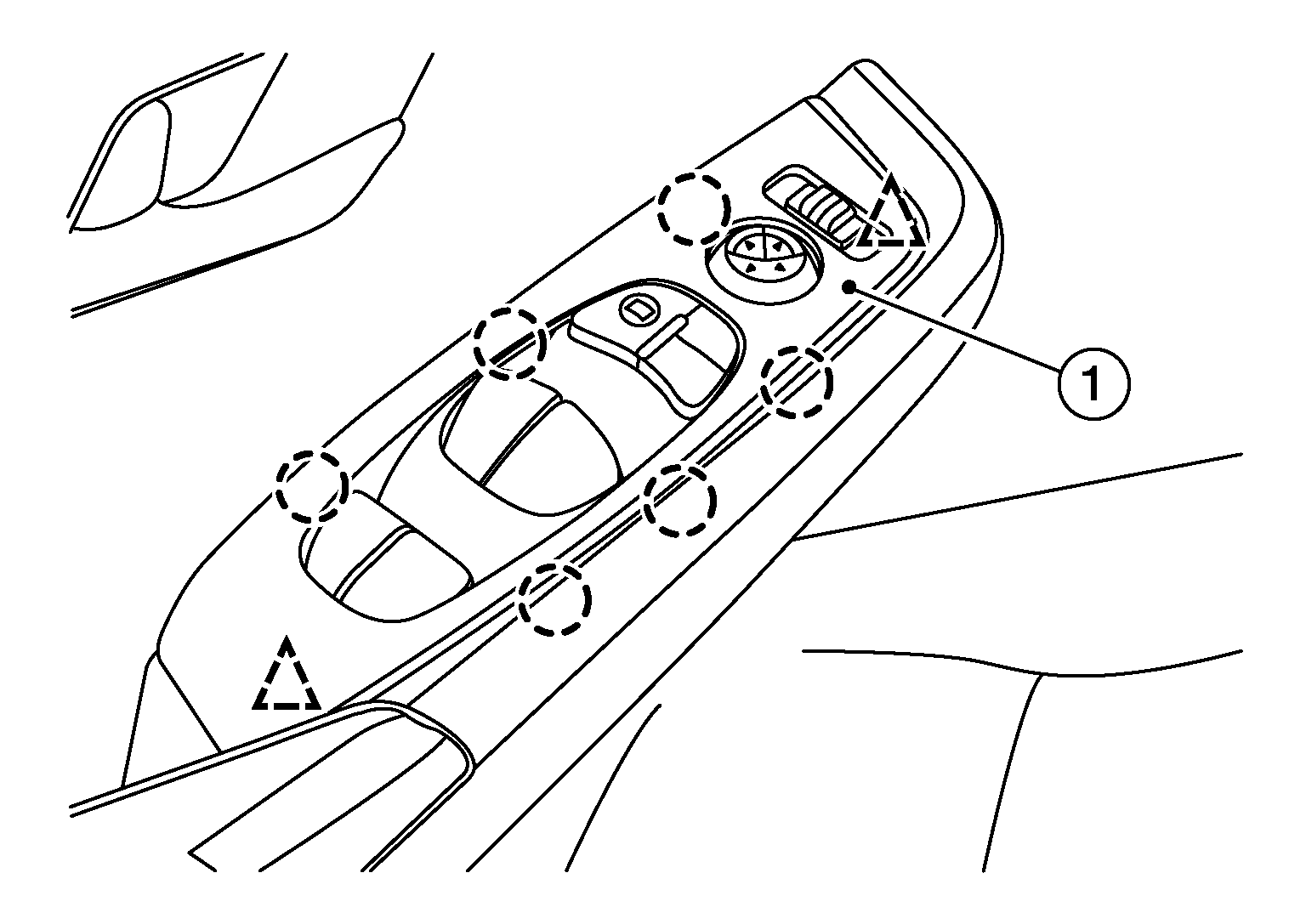

1. Using suitable tool, release clips and pawls and remove main power window and door lock/unlock switch finisher (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

   	: Pawl
   	: Clip

2. Disconnect the harness connectors from the main power window and door lock/unlock switch and door mirror remote control switch.

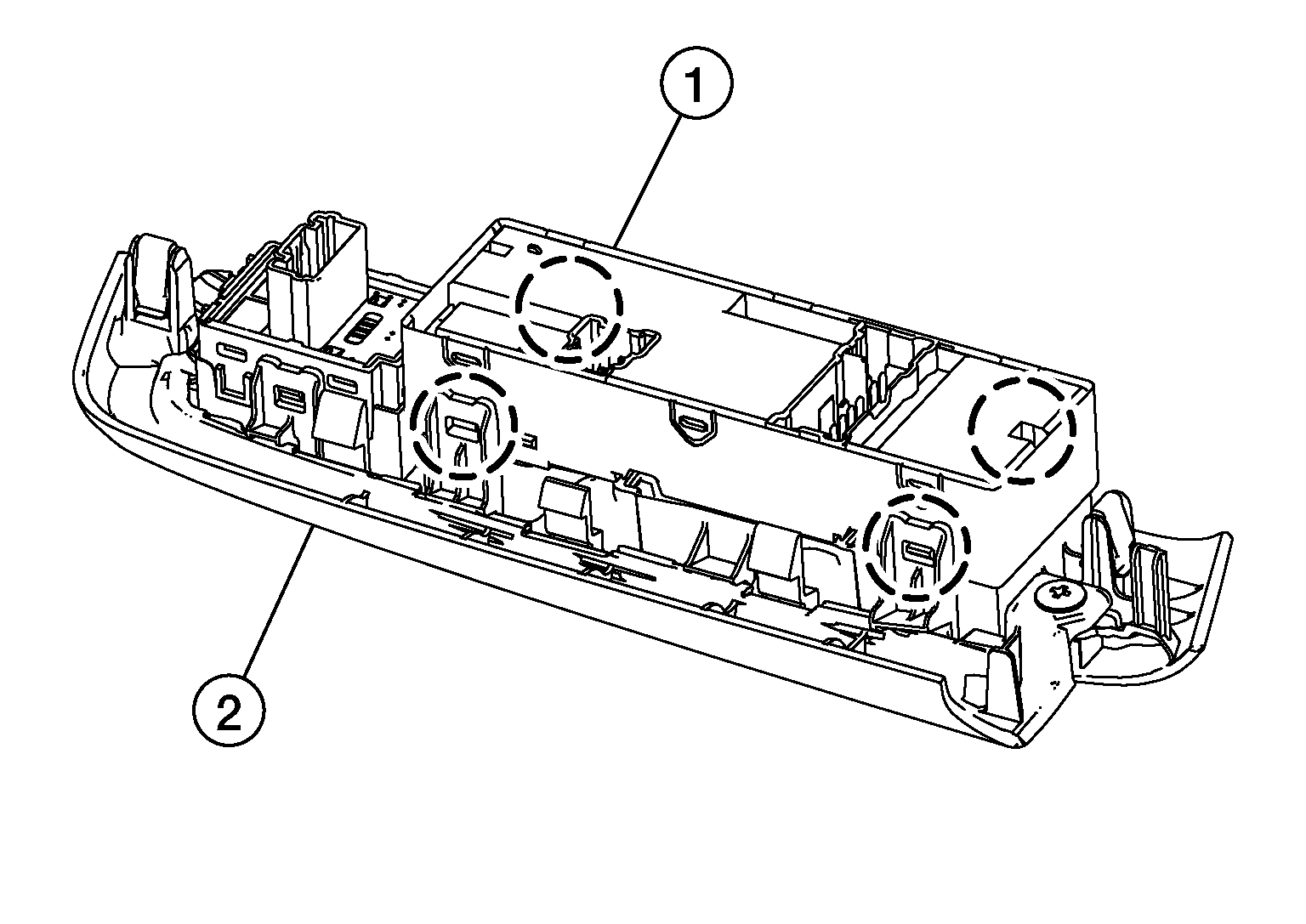

3. Using a suitable tool, release pawls and remove the main power window and door lock/unlock switch (1) from the main power window and door lock/unlock switch finisher (2).

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.
