Work Flow (With 165-DSS-5000P)

CHARGING SYSTEM DIAGNOSIS WITH 165-DSS-5000P

To test the charging system, use the following special service tool:

• 165-DSS-5000P battery and electrical diagnostic analyzer

NOTE: Refer to the applicable Instruction Manual for proper charging system diagnosis procedures.

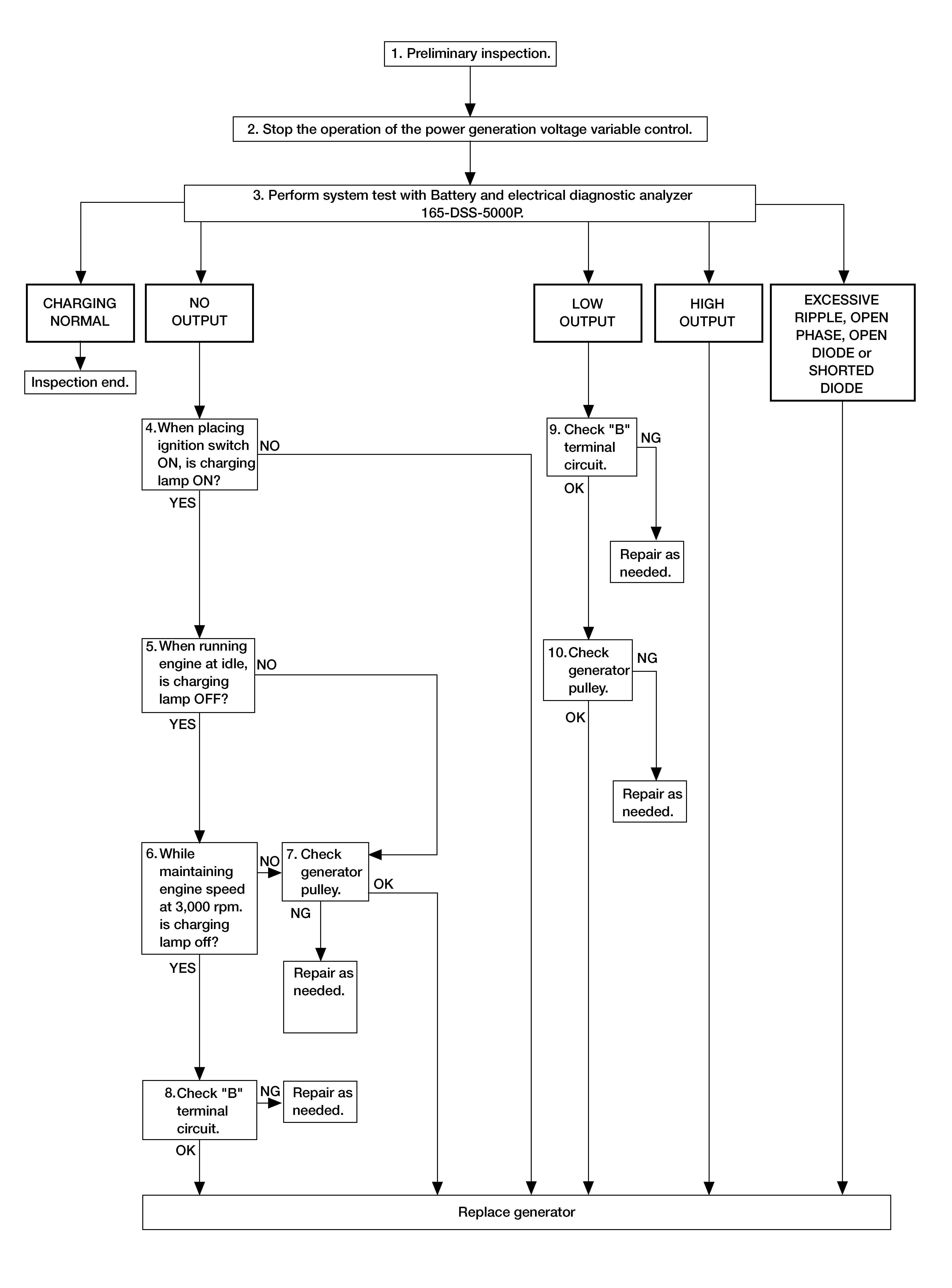

OVERALL SEQUENCE

Courtesy of NISSAN NORTH AMERICA, INC.

DETAILED FLOW

NOTE: To ensure a complete and thorough diagnosis, the battery, stater and generator test segments must be done as a set from start to finish.

1. PRELIMINARY INSPECTION
   1. Perform the preliminary inspection. Refer to Diagnosis Procedure .

   >>

   GO TO 2.

2. STOP POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM
   1. Stop the operation of the power generation voltage variable control in either of the following procedures. CONSULT
      • After selecting "ENGINE", set the DUTY value of "ALTERNATOR DUTY" to 0 % by selecting "ALTERNATOR DUTY" of "Active Test". Continue "Active Test" until the end of inspection. (When the DUTY value is 0 or 100 %, the normal power generation is performed according to the characteristic of the IC regulator of the generator.)
      • Ignition switch OFF, and disconnect the battery current sensor connector. [However, DTC (P1550-P1554) of the engine might remain. After finishing the inspection, connect the battery current sensor connector and erase the self diagnosis results history of the engine using CONSULT.]

   >>

   GO TO 3.

3. DIAGNOSIS WITH 165-DSS-5000P
   1. Perform the system test using battery and electrical diagnostic analyzer 165-DSS-5000P. Refer to the applicable Instruction Manual for proper testing procedures.

   Test result

   CHARGING NORMAL>>

   Charging system is normal and will also show "DIODE RIPPLE" test result.

   NO OUTPUT>>

   GO TO 4.

   LOW OUTPUT>>

   GO TO 9.

   HIGH OUTPUT>>

   Replace the generator. Refer to Removal and Installation .

   EXCESSIVE RIPPLE, OPEN PHASE, OPEN DIODE or SHORTED DIODE>>

   Replace the generator. Refer to Removal and Installation . Perform system test again using the 165-DSS-5000P battery and electrical diagnostic analyzer to confirm repair.

4. INSPECTION WITH CHARGE WARNING LAMP (IGNITION SWITCH IS ON)
   1. Ignition switch ON.

   Does the charge warning lamp illuminate?

   YES>>

   GO TO 5.

   NO>>

   Replace the generator. Refer to Removal and Installation .

5. INSPECTION WITH CHARGE WARNING LAMP (IDLING)
   1. Start the engine and run it at idle.

   Does the charge warning lamp turn OFF?

   YES>>

   GO TO 6.

   NO>>

   GO TO 7.

6. INSPECTION WITH CHARGE WARNING LAMP (ENGINE AT 3, 000 RPM)
   1. Increase and maintain the engine speed at 3, 000 RPM.

   Does the charge warning lamp remain off?

   YES>>

   GO TO 8.

   NO>>

   GO TO 7.

7. INSPECTION OF GENERATOR PULLEY
   1. Check generator pulley. Refer to Inspection .

   Is generator pulley normal?

   YES>>

   Replace the generator. Refer to Removal and Installation .

   NO>>

   Repair as needed.

8. "B" TERMINAL CIRCUIT INSPECTION
   1. Check "B" terminal circuit. Refer to Diagnosis Procedure .

   Is "B" terminal circuit normal?

   YES>>

   Replace the generator. Refer to Removal and Installation .

   NO>>

   Repair as needed.

9. "B" TERMINAL CIRCUIT INSPECTION
   1. Check "B" terminal circuit. Refer to Diagnosis Procedure .

   Is "B" terminal circuit normal?

   YES>>

   GO TO 10.

   NO>>

   Repair as needed.

10. INSPECTION OF GENERATOR PULLEY
    1. Check generator pulley. Refer to Inspection .

    Is generator pulley normal?

    YES>>

    Replace the generator. Refer to Removal and Installation .

    NO>>

    Repair as needed.
