Start/Stop Indicator Lamp
DESIGN/PURPOSE
The start/stop indicator lamp informs the driver of the status of the idle start/stop system.
- Turns ON while the idle start/stop system is operating.
- Blinks when a malfunction related to the idle start/stop system is detected after engine start.
BULB CHECK
Not applicable
SYNCHRONIZATION WITH WARNING CHIME
Applicable: For warning chime, Refer to System Description (TYPE A) or System Description (TYPE B).
OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIGNAL
For the operation for CAN communication blackout in the combination meter, Refer to Fail-Safe (TYPE A) or Fail-Safe (TYPE B).

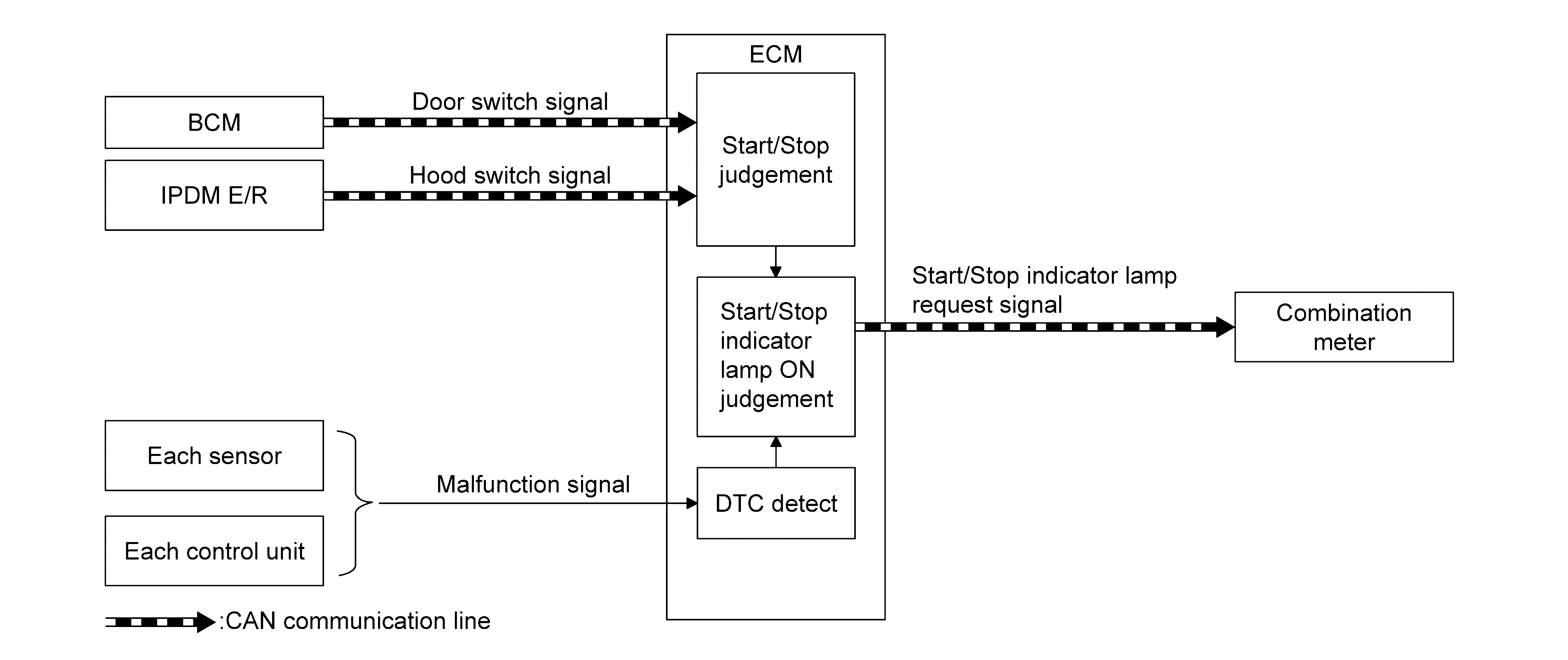

SYSTEM DIAGRAM
SIGNAL PATH
- ECM transmits a start/stop indicator lamp request signal to the combination meter via CAN communication when the idle start/stop system operation is permitted or a malfunction is detected.
- The combination meter turns ON or blinks the start/stop indicator lamp according to a signal transmitted from ECM.
LIGHTING CONDITION
- During idle start/stop system operation.
- DTC is detected. (Blinking.)NOTE:
When the hood is opened, the idle start/stop system is cancelled and the engine cannot be restarted automatically. Accordingly, the engine needs to be started with the ignition key. For details, Refer to System Description (TYPE A) or System Description (TYPE B).
SHUTOFF CONDITION
- The operation permit conditions of the idle start/stop system are not satisfied.
- After an engine restart.
- After erasing DTC.

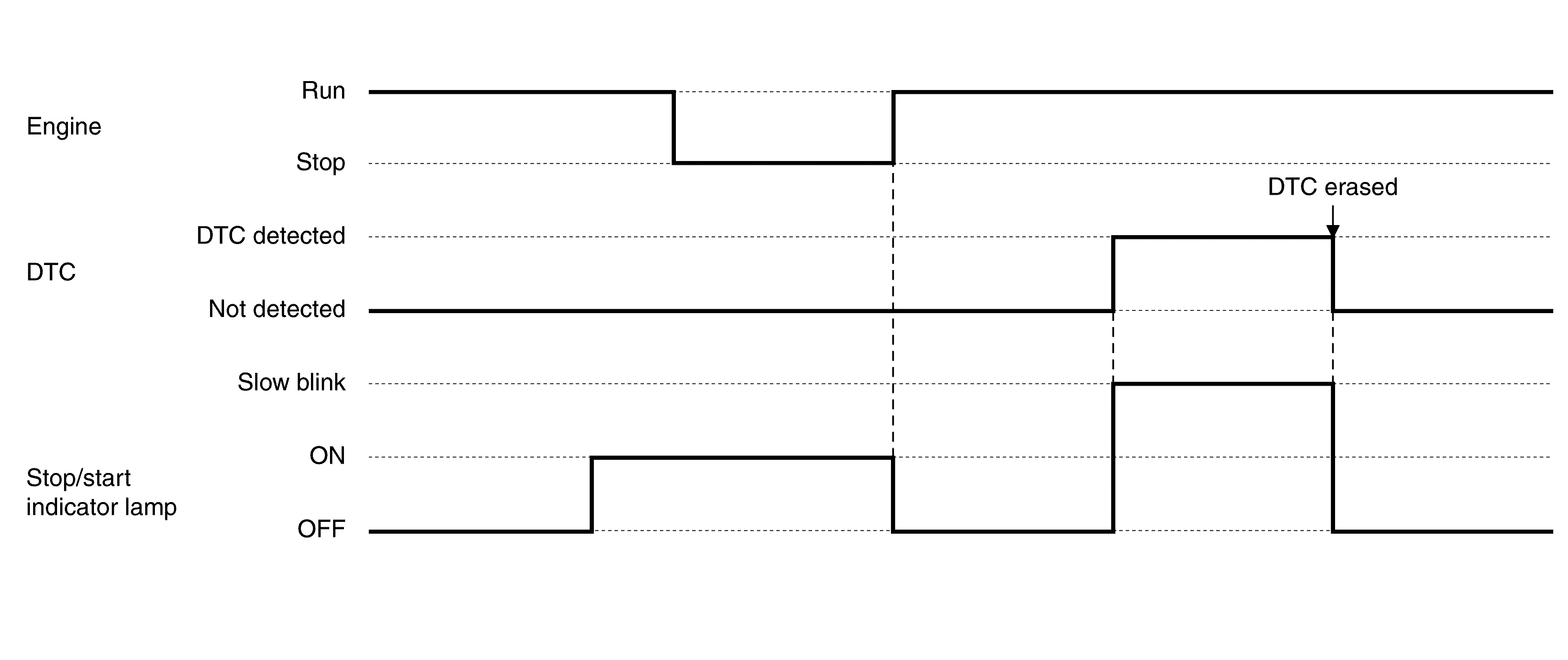

TIMING CHART
