Component Function Check

  1. INSPECTION START

    Turn ignition switch to START.

    Are any cylinders ignited?

    >>

    GO TO 2.

    >>

    Refer to Diagnosis Procedure .

  2. CHECK FUEL INJECTOR FUNCTION

    SYMBOL With CONSULT

    1. Start engine.
    2. Perform "POWER BALANCE" in "ACTIVE TEST" mode of "ENGINE" with CONSULT.
    3. Check that each circuit produces a momentary engine speed drop.

    SYMBOL Without CONSULT

    1. Start engine and let it idle.

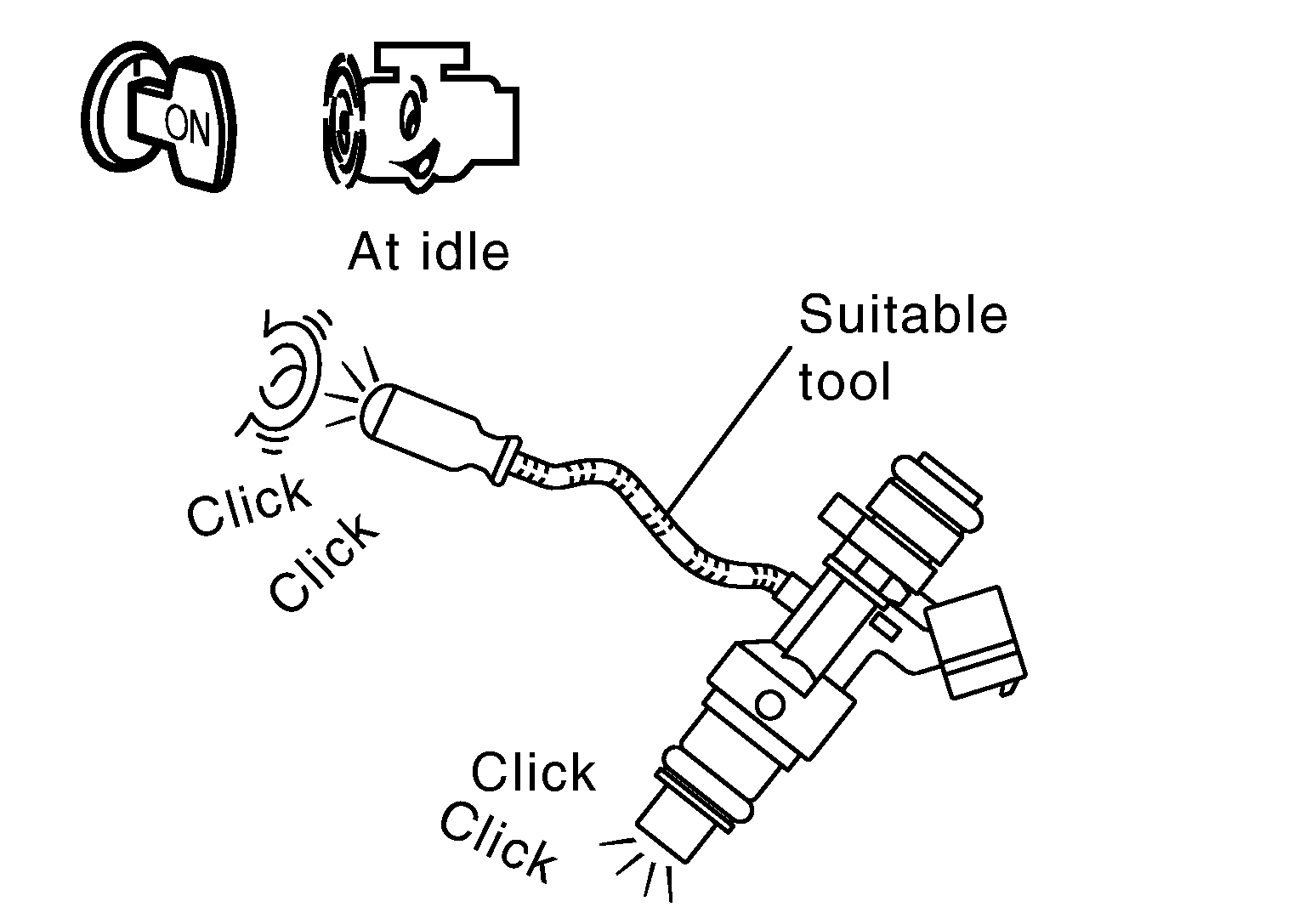

    2. Listen to each fuel injector operating sound.
      GNSDB111189Courtesy of NISSAN NORTH AMERICA, INC.
      Clicking sound should be heard.

    Is the inspection result normal?

    >>

    INSPECTION END

    >>

    Refer to Diagnosis Procedure .
